BMW Parts and Accessories
Installation Instructions

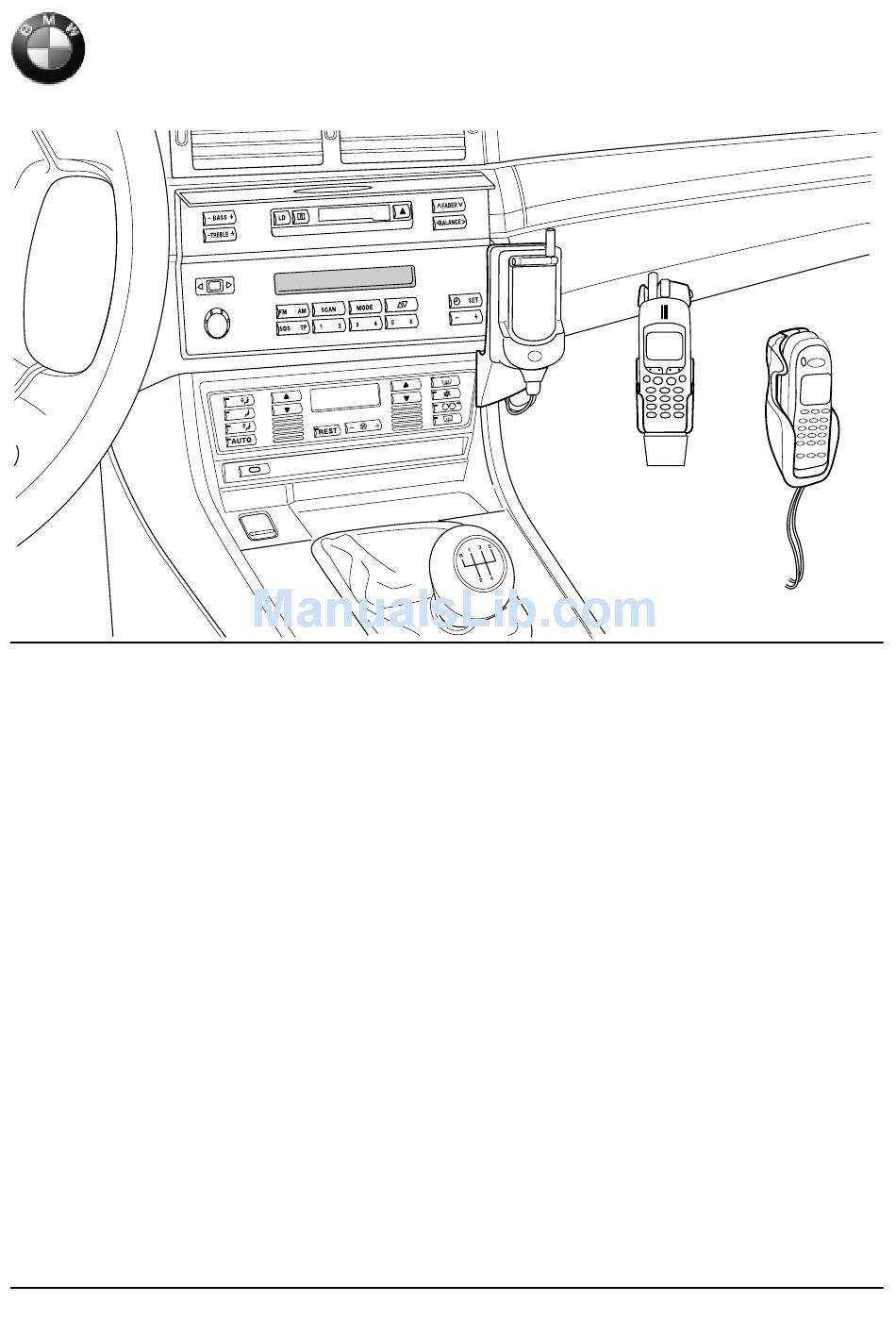

Basic hands-free retrofit kit for upgrading various mobile phones
(system without switch module)
BMW 5 Series Saloon (E 39) LHD
BMW 5 Series touring (E 39/2) LHD
without telephone preparation (SA640)
Technical and electrical knowledge required.
The installation time is 2 -3 hours but this may vary depending on the condition of the car and
the equipment in it.
Retrofit/Installation kit No. 84 64 0 025 805
Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544
84 64 0 025 806
84 64 0 025 807
84 64 0 025 808
84 64 0 025 809
84 64 0 025 866
84 64 0 025 867
84 64 0 025 868
84 64 0 025 869
Issue date: 04.2001
F 39 0961 B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5 Series Saloon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BMW 5 Series Saloon

Summary of Contents for BMW 5 Series Saloon

  • Page 1 F 39 0961 B Basic hands-free retrofit kit for upgrading various mobile phones (system without switch module) BMW 5 Series Saloon (E 39) LHD BMW 5 Series touring (E 39/2) LHD without telephone preparation (SA640) Technical and electrical knowledge required.

  • Page 2: Table Of Contents

    Contents Section Page Important information for the installation of the basic kit ..... Preparations ............Parts list .

  • Page 3: Important Information For The Installation Of The Basic Kit

    - without an on-board monitor radio with a production date after 9/00 or " - with an on-board monitor radio with a production date after 10/01. The power supply wiring harness B is only required for BMW 5 Series touring (E39/2) " LHD cars.

  • Page 4: Preparations

    Preparations instruction Conduct a brief test (print out error memory) Disconnect the battery 12 00... Remove the radio (cars without an on-board monitor radio only) 65 11 030 Remove the heater/air conditioning control 64 11 749 Remove the cover on the gearshift lever. 51 16 210 Remove the base of the centre console 51 16 200...

  • Page 5: Parts List

    Parts list F 39 0962 B Basic wiring harness Power supply wiring harness (E39/2 cars only) Insulation-piercing connector (2-way) 5A fuse Cable tie (15x) FME connector Template for microphone holder for E39 and E39/2 cars without a sunroof Black microphone cover (only for cars without a sunroof)* Black frame for hands-free kit (only for cars without a sunroof)* Sub-frame for hands-free kit (only for cars without a sunroof)* Front black roof liner trim panel (only for cars with a sunroof)*...
  • Page 6 Connection overview EN/6 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001...

  • Page 7: Connection Overview

    Connection overview Cable Item Description Connection location in the car colour ---- Basic wiring harness Coaxial socket casing FME To coaxial plug casing FME on the required load holder with the hands-free kit or to the required adapter Black 12-pin plug connector Cars without an on-board monitor radio only: To radio connection plug (after disconnecting the black 12-pin plug casing X13598 from the radio connection plug)
  • Page 8 Connection overview Cable Item Description Connection location in the car colour White 12-pin plug casing E39 cars only: To the white 12-pin socket casing X322 , in the boot on the left E39/2 cars only: To branch B1 , white 12-pin socket casing on the power supply wiring harness B in the boot on the left White 12-pin socket casing E39 cars only:...
  • Page 9 Connection overview Power supply wiring harness B for BMW 5 Series touring (E39/2) LHD cars F 39 0964 B Cable Item Description Connection location in the car colour ---- Power supply wiring harness White 12-pin socket casing BMW 5 Series touring (E39/2) cars only...

  • Page 10: Installation And Cabling Diagram For Basic Wiring Harness A In E39 Cars

    Installation and cabling diagram for basic wiring harness A in E39 cars Punkt 1 Punkt 1 A2+A3 A6+A7 A12+A13 A8-A11 F 39 0965 B The basic wiring harness A is to be installed along the audio and main wiring harness as shown in the figure and secured using textile adhesive tape and cable ties.

  • Page 11: Installation And Cabling Diagram For Basic Wiring Harness A And Power Supply Wiring Harness B In E39/2 Cars

    Installation and cabling diagram for basic wiring harness A and power supply wiring harness B in E39/2 cars Punkt 1 Punkt 1 A2+A3 A9+A10 A12+A13 A6+A7 A8+A11 F 39 0966 B The basic wiring harness A is to be installed along the audio and main wiring harness as shown in the figure and secured using textile adhesive tape and cable ties.

  • Page 12: To Prepare The Installation Site For The Microphone In Cars Without A Sunroof

    To prepare the installation site for the microphone in cars without a sunroof Take the required template out of the retrofit kit and cut it out. Then place the required template against the rear external contour of the interior light (20) and affix it to the headlining (21).

  • Page 13: To Prepare The Installation Site For The Microphone In Cars With A Sunroof

    To prepare the installation site for the microphone in cars with a sunroof Take the existing front headlining trim off the headlining and remove the switch (20) for the glass tilt/slide sunroof. Discard the existing front headlining trim and replace it with the new front headlining trim (9). Secure the microphone trim (10) and the switch (20) for the glass tilt/slide sunroof in the new front headlining trim (9).
  • Page 14 To install the basic wiring harness A (E39 cars only) The figure shows the installation space near " the handbrake lever. Carefully cut out the opening (20) in the carpet (21) in front of the handbrake lever (22). A1-A4+A14 Pull up the carpet at the rear (21) on the driver’s side and lay branches A1 to A4 and A14 on the basic wiring harness A forwards to the gearshift lever under the centre console.
  • Page 15 To install the basic wiring harness A (E39 cars only) This step only applies to cars without an existing mute cable on the radio connection plug (20) PIN10 of the 8-pin plug casing X18126/PIN10 " X18126. Connect branch A3, socket contact, white/brown cable, to the free slot in the radio connection plug (20) PIN10 on the 8-pin plug casing X18126.
  • Page 16 To install the basic wiring harness A (E39 cars only) Cars without an on-board monitor radio only This step only applies to cars without an X18126/PIN11 existing TEL ON cable on the radio connection plug (20) PIN11 of the 8-pin plug "...
  • Page 17 To install the basic wiring harness A (E39 cars only) " The figure shows the boot on the left. Thread the basic wiring harness A with branches A6 to A13 and A15, as shown in the figure, through the passage grommet (20) along the standard wiring harness to the boot and secure it with cable ties (3).
  • Page 18 To install the basic wiring harness A (E39 cars only) Cars with an on-board monitor radio only X13598 Disconnect the black 12-pin plug casing X13598 from the on-board monitor radio connection plug (20) and tie it back. Connect branch A9, black 12-pin plug casing, into the cleared slot (21) in the on-board monitor radio connection plug (20).
  • Page 19 To install the basic wiring harness A (E39 cars only) Cars with an on-board monitor radio only X18126/PIN11 This step only applies to cars without an existing TEL ON cable on the radio connection plug (20) PIN11 of the 8-pin plug "...
  • Page 20 M6 (13). After securing the parts, treat all of them with the anti-corrosion measures set out in the " BMW standard. F 39 0993 B The figure shows the final installation position " of the earth connection cable.
  • Page 21 10. To install the basic wiring harness A and power supply harness BE39/2 cars only The figure shows the installation space near " the handbrake lever. Carefully cut out the opening (20) in the carpet (21) in front of the handbrake lever (22). A1-A4+A14 Pull up the carpet at the rear (21) on the driver’s side and lay branches A1 to A4 and A14 on the...

  • Page 22: To Install The Basic Wiring Harness A And Power Supply Wiring Harness B In E39/2 Cars

    10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars Cars without an on-board monitor radio only Disconnect the black 12-pin plug casing X13598 X13598 from the radio connection plug (20) and tie it back. Connect branch A2, black 12-pin plug casing, to the cleared slot (21) in the radio connection plug (20).
  • Page 23 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars Cars without an on-board monitor radio only This step only applies to cars without an X18126/PIN11 existing TEL ON cable on the radio connection plug (20) PIN11 of the 8-pin plug "...
  • Page 24 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars " The figure shows the boot on the left. Lay the basic wiring harness A, as shown in the figure, with branches A6 to A13 and A15 along the standard wiring harness and secure it with cable ties (3).
  • Page 25 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars Carefully cut open the sheathing of the audio wiring harness (20) for a length of 100 mm behind the black plug connector X322. Connect branch B2, open cable end, grey/red cable, to the supply cable, grey/red cable, of the black 12-pin plug connector X322 PIN5 using a...
  • Page 26 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars " The figure shows the boot on the left. Secure branch A11, cable eyelet with a diameter of 6 mm, brown cable, to earth post X13016 under the left tail light.
  • Page 27 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars This step only applies to cars with an existing mute cable on the on-board X18126 monitor radio connection plug (20) PIN10 of the 8-pin plug casing X18126.3 Carefully cut open the sheathing of the audio wiring harness (21) for a length of 100 mm behind...
  • Page 28 10. To install the basic wiring harness A and power supply wiring harness B in E39/2 cars Applies to all E39/2 cars Insert the 5A fuse (2) into the fuse holder A8. Secure the fuse holder A8 to the wiring harness near the left tail light with a cable tie (3).

  • Page 29: Concluding Work

    Concluding work Do not assemble the car again until the required hands-free retrofit kit has been installed (see separate installation instructions). EN/29 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001...

  • Page 30: Circuit Diagram For The Basic Wiring Harness A In E39 Cars

    12. Circuit diagram for the basic wiring harness A in E39 cars EN/30 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001...
  • Page 31 To standard wiring harness To hands-free system wiring harness The components and X designations marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Colour abbreviations Blue Orange...

  • Page 32: Circuit Diagram For The Basic Wiring Harness A In E39/2 Cars

    13. Circuit diagram for the basic wiring harness A in E39/2 cars EN/32 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001...
  • Page 33 To be tied back on the standard wiring harness The components and X designations marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Colour abbreviations Blue...

  • Page 34: Circuit Diagram For The Power Supply Wiring Harness B In E39/2 Cars

    14. Circuit diagram for the power supply wiring harness B in E39/2 cars X325B A12* 0.75 VIWS RTGN VIWS RTGN GRRT VIWS RTGN X325S F 39 1007 B EN/34 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no.
  • Page 35 To standard wiring harness To basic wiring harness A The components and X designations marked with an asterisk (*) are only valid for this circuit diagram. All the other components and X designations correspond to BMW after-sales circuit diagrams Colour abbreviations Blue Orange...

  • Page 36: Template

    15. Template The original template is supplied in the parts kit. " F 39 1008 B EN/36 Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet) Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001...
