900
SITdefault

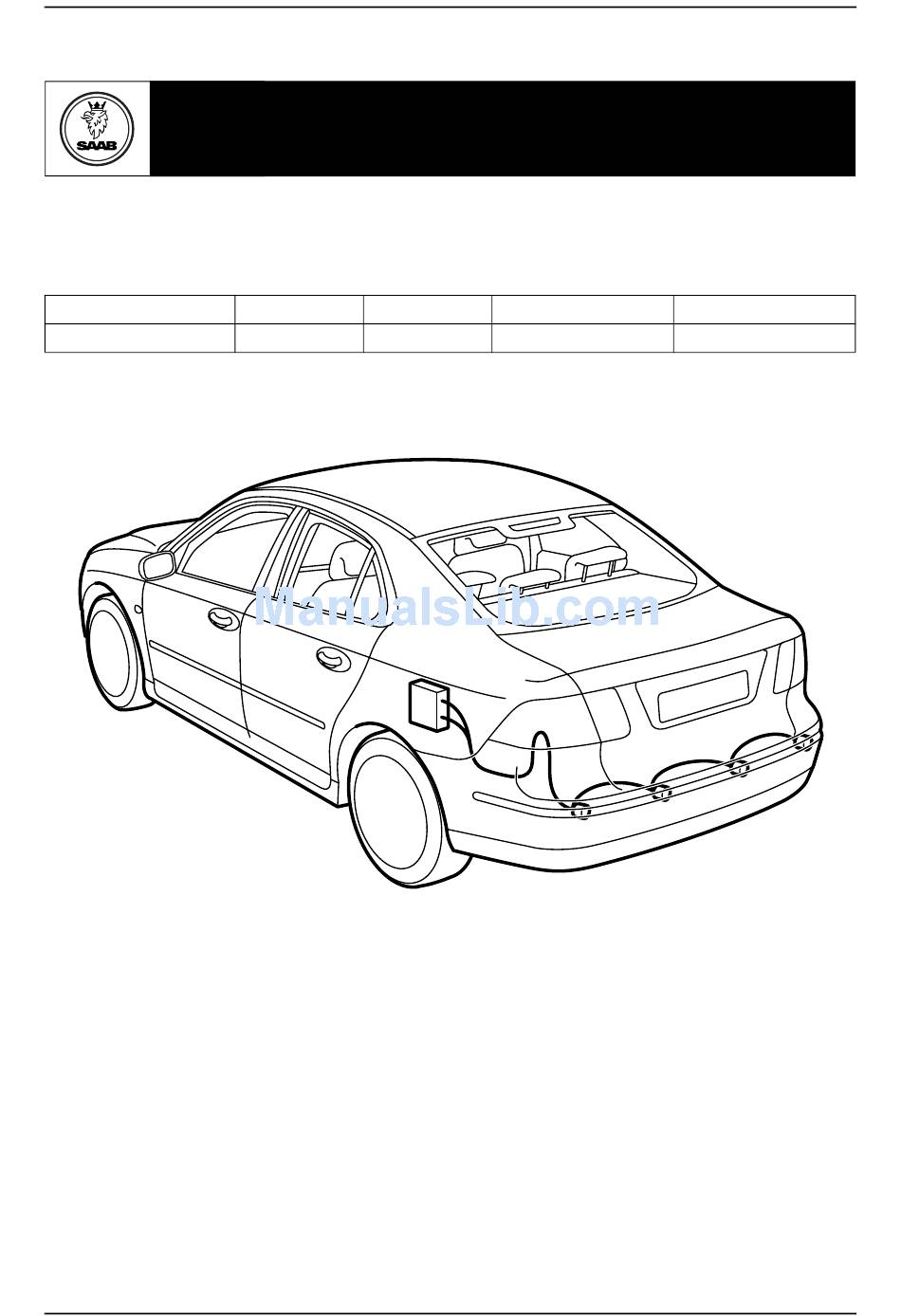

Saab 9-3 M03-
Parking assistance (SPA)
Accessories Part No.
12 787 887
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:40-03
SCdefault
Installation instructions
Date
Instruction Part No.
Oct 02
12 788 454
Saab 9-3 M03-
Replaces
12 788 454 Jul 02
F930A042
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saab 12 787 887
Summary of Contents for Saab 12 787 887
- Page 1 MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 M03- Parking assistance (SPA) Accessories Part No. Group Date Instruction Part No. Replaces 12 787 887 9:40-03 Oct 02 12 788 454 12 788 454 Jul 02 F930A042 Saab 9-3 M03-...
- Page 2 2 12 788 454 F930A054 1 SPA control module 2 Holder (x4) 3 Seal (x4) 4 Distance sensor (x4) 5 Moulding, bumper 6 Wiring harness, distance sensor 7 SPA wiring harness 8 Dust cover 9 Cable tie (x2) Saab 9-3 M03-...
- Page 3 2 Remove the two nuts holding the air shield of the rear bumper against the body. Remove the two screws holding the bumper shell against the wheel housings. 3 Lower the vehicle and remove the rear bumper trim moulding. 4 Open the hatchback. Saab 9-3 M03-...
- Page 4 6 Remove the hatches from the luggage compart- ment side trims. 7 Remove the scuff plates from the side frames. 8 Remove the clip for the left-hand side trim and move the trim aside. 9 Remove the rear lamp cluster. Saab 9-3 M03-...
- Page 5 12 Remove the bumper shell by first pulling the side pieces outwards and then pulling the bump- er shell rearwards. Important Place the bumper on a clean, soft surface. 13 Remove the sound insulation from behind the right-hand wheel housing. Saab 9-3 M03-...
- Page 6 20 mm between your eyes and the light source may cause eye injury. 16 Remove the rearmost connector (blue) from the rear electrical centre. Make a note of how the rear wiring harness is connected and then remove it. Saab 9-3 M03-...
- Page 7 Connect the wiring harness with reference to the notes from the preceding point. Fit a new dust cover and secure the harness components with a cable tie. Saab 9-3 M03-...
- Page 8 8 12 788 454 F930A049 18 Plug in the control module and fit it onto the mounting point on the rear electrical centre. 19 Remove the support from the bumper shell. Saab 9-3 M03-...
- Page 9 The connector sockets on the sensors should point towards the right-hand side of the vehicle. 24 Connect the sensor wiring harness to the sen- sors and fit it into the slots in the bumper shell. 25 Fit the support to the bumper shell. Saab 9-3 M03-...
- Page 10 Fasten the wiring harness with a cable tie. 29 Fit the bumper shell screws which are located below the rear lamp cluster. 30 Fit and connect the rear lamp cluster. Check the fit against the boot lid moulding. Saab 9-3 M03-...
- Page 11 33 Fit the left-hand side trim. 34 Fit the scuff plates to the side frames. 35 Fit the hatches in the luggage compartment side trims. 36 Fit the scuff plates and fold down the luggage compartment floor. Saab 9-3 M03-...
- Page 12 “All”, select “Add/Remove”, select the accessory and then “Add”. Note The diagnostic tool needs to obtain a security code in TIS at certain times. Information on what to do will be displayed on the diagnostic tool screen. Saab 9-3 M03-...
