900
SITdefault

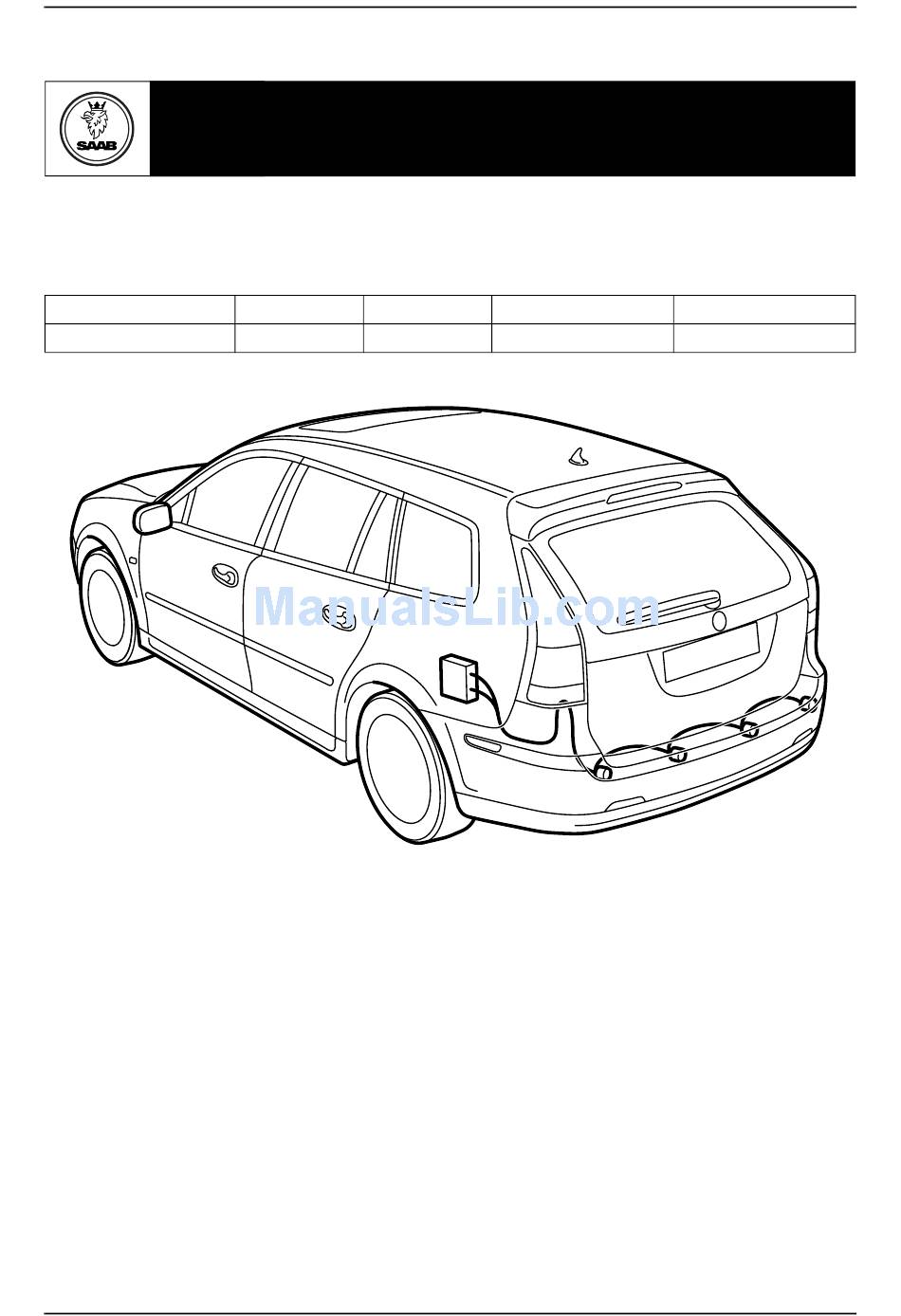

Saab 9-3 5D M06-
Parking assistance (SPA)
Accessories Part No.
32 025 603
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:40-05
SCdefault
Installation instructions
Date
Instruction Part No.
Sep 05
32 025 604
Saab 9-3 5D M06-
Replaces
F930A403
Advertisement
Related Manuals for Saab 32 025 603
Summary of Contents for Saab 32 025 603
- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 5D M06- Parking assistance (SPA) Accessories Part No. Group Date Instruction Part No. Replaces 32 025 603 9:40-05 Sep 05 32 025 604 F930A403 Saab 9-3 5D M06-...
- Page 2 2 32 025 604 F930A404 1 SPA control module 2 Holder (x4) 3 Seal (x4) 4 Distance sensor (x4) 5 Protective shell, bumper 6 Wiring harness, distance sensor 7 Wiring harness, rear harness 8 Cable tie (x4) Saab 9-3 5D M06-...
- Page 3 4 Remove the screws to the wheel housing. 5 Lower the car and open the tailgate. 6 Insert a screwdriver in the hole to reach under the catch for the bumper shell. Bend up using the screwdriver to release the catch. Saab 9-3 5D M06-...
- Page 4 7 Pull the bumper shell away from the holders. 8 Release the catches using a screwdriver. Detach the shell from the moulding. 9 Lift off the bumper shell. Important Place the bumper on a soft, clean surface. Saab 9-3 5D M06-...
- Page 5 32 025 604 5 F930A407 10 Pull the cellular block from the bumper shell lugs. 11 Remove the protective corner mouldings and the protective shell by inserting tool 82 93 474 under the shell to release the clips. Saab 9-3 5D M06-...
- Page 6 The connector must come out toward the left-hand light cluster. WARNING Check that the wiring harness is not pinched. Incorrect fitting can damage the wiring harness and cause a short-circuit/fire. Saab 9-3 5D M06-...
- Page 7 Press the cellular block in. 17 Fit the protective shell by pressing in the clips. Make sure that the sensors are located correctly. 18 Check that all the clips are secured in the bumper shell. Saab 9-3 5D M06-...
- Page 8 20 Remove the left and right-hand C-pillar trim. Use 82 93 474 Removal tool to remove the cover plate. 21 Remove the left and right-hand side bolsters. Use 82 93 474 Removal tool to remove the clips. Saab 9-3 5D M06-...
- Page 9 32 025 604 9 F930A411 22 Remove the luggage compartment floor. 23 Cars with subwoofer: Lift up the subwoofer. 24 Remove the scuff plate's clips using 84 71 179 Removal tool, clips and lift up the scuff plate. Saab 9-3 5D M06-...
- Page 10 31 Right-hand side: Also unplug the connector to the 12 V socket. 32 Remove the trim so that the clips release. 33 Remove the clip for the foam block and remove the foam block. Saab 9-3 5D M06-...
- Page 11 Tape up unused connectors so that they cannot fall and rattle. 36 Fit the kit's control module on the bracket by the electrical centre and plug in the connectors. Saab 9-3 5D M06-...
- Page 12 40 Fit the cover over the storage compartment. 41 Fit the screw. 42 Fit the cover. 43 Fit the mounting for the cargo guard (if fitted). 44 Fit the two-stage rivet. 45 Fit the clip to the mounting in the body. Saab 9-3 5D M06-...
- Page 13 32 025 604 13 F930A415 46 Fit the scuff plate. 47 Cars with subwoofer: Lower the subwoofer and screw it in. 48 Fit the luggage compartment floor. Saab 9-3 5D M06-...
- Page 14 14 32 025 604 F930A416 49 Fit the left and right-hand side bolsters. Check that the belt is not twisted. 50 Fit the left and right-hand C-pillar trim. 51 Fold up the backrests. Saab 9-3 5D M06-...
- Page 15 60 Lower the car and check the fit of the bumper shell. Adjust as necessary. 61 Close the tailgate. 62 Connect the diagnostic tool, select car and model year, select “All”, select “Add/Remove”, select the accessory and then “Add”. Saab 9-3 5D M06-...
