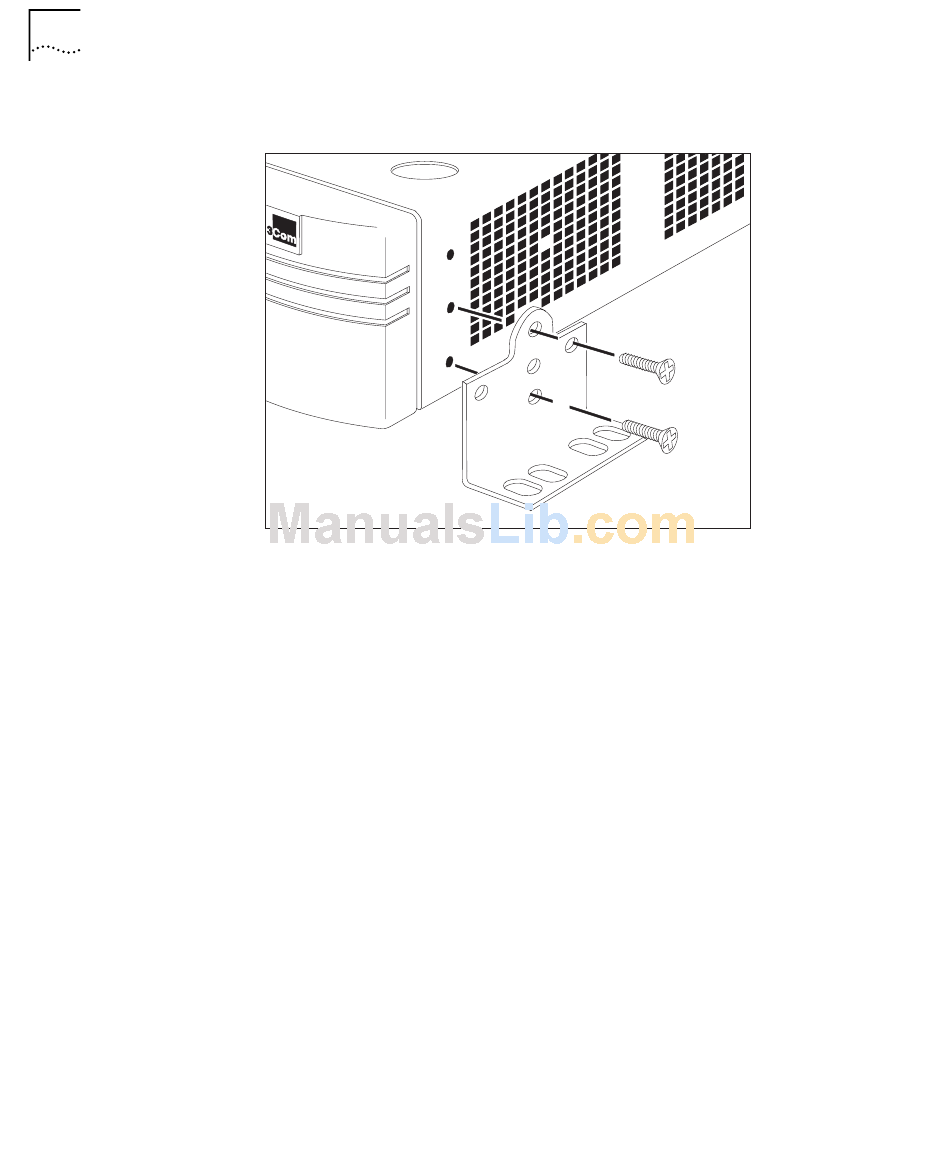

Figure 8 Fitting a bracket for wall-mounting
3 Insert the two screws and tighten with a suitable screwdriver.
4 Repeat steps 2 and 3 for the other side of the Switch.
5 Ensure that the wall you are using is smooth, flat, dry and sturdy. Attach a
piece of plywood, approximately 305mm x 510mm x 12mm (12in. x 20in.
x 0.5in.) securely to the wall if necessary.
6 Mount the Switch as follows:
a Position the base of the Switch against the wall (or plywood) ensuring
that the ventilation holes face sidewards and that the front of the unit
faces downwards . Mark the position of the screw holes in both wall
brackets on the wall. Drill the four holes.
b Using suitable fixings and screws (not provided), attach the Switch
securely to the wall or plywood.
c Connect network cabling.
