Network
Configuration
Examples
Network
Segmentation I
The following illustrations show some examples of how the Switch can be
placed on your network.
Figure 3 shows how the Switch 1100 fits into a large corporate network
with a Fast Ethernet infrastructure. A Switch is positioned on each floor
and servers are centralized in the basement.

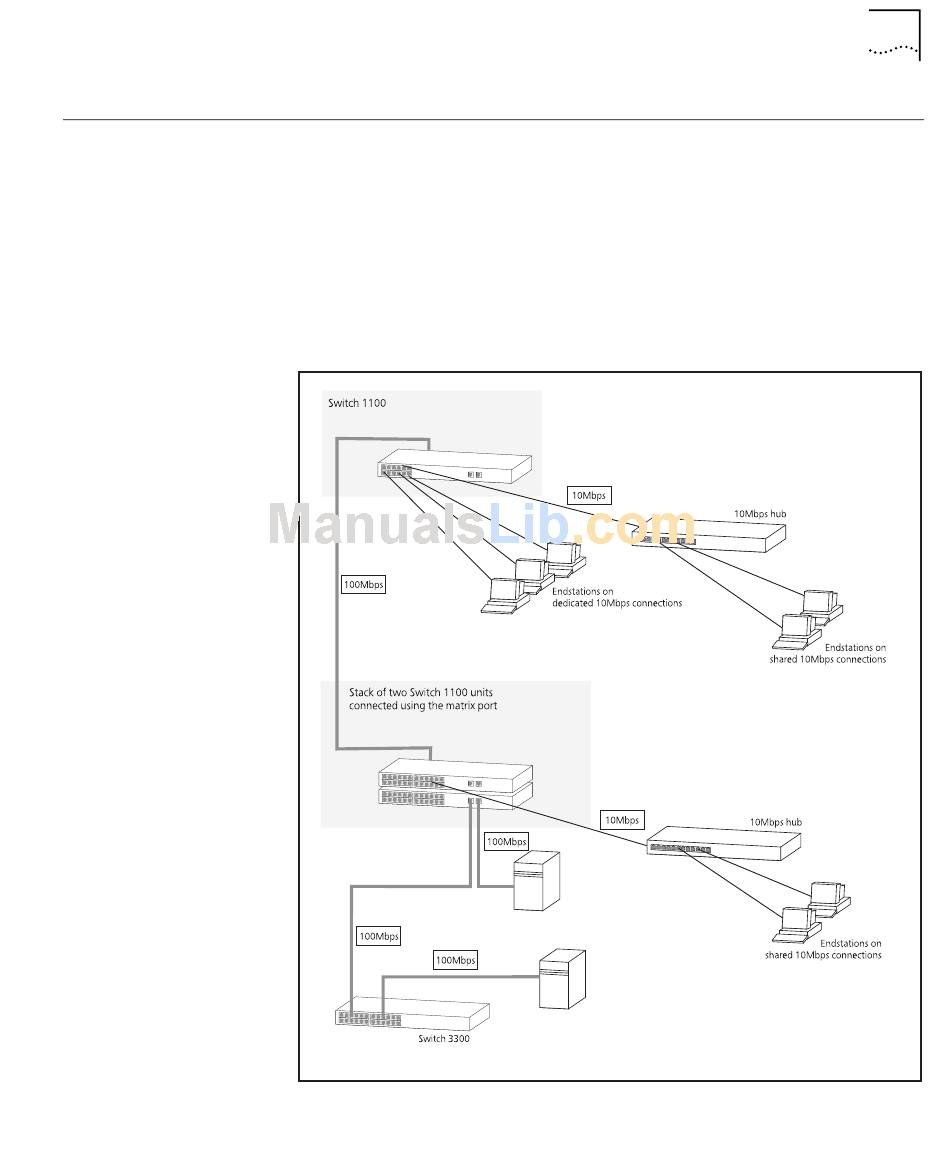

Figure 3 Using the Switch 1100 to segment your network

Network Configuration Examples

17
