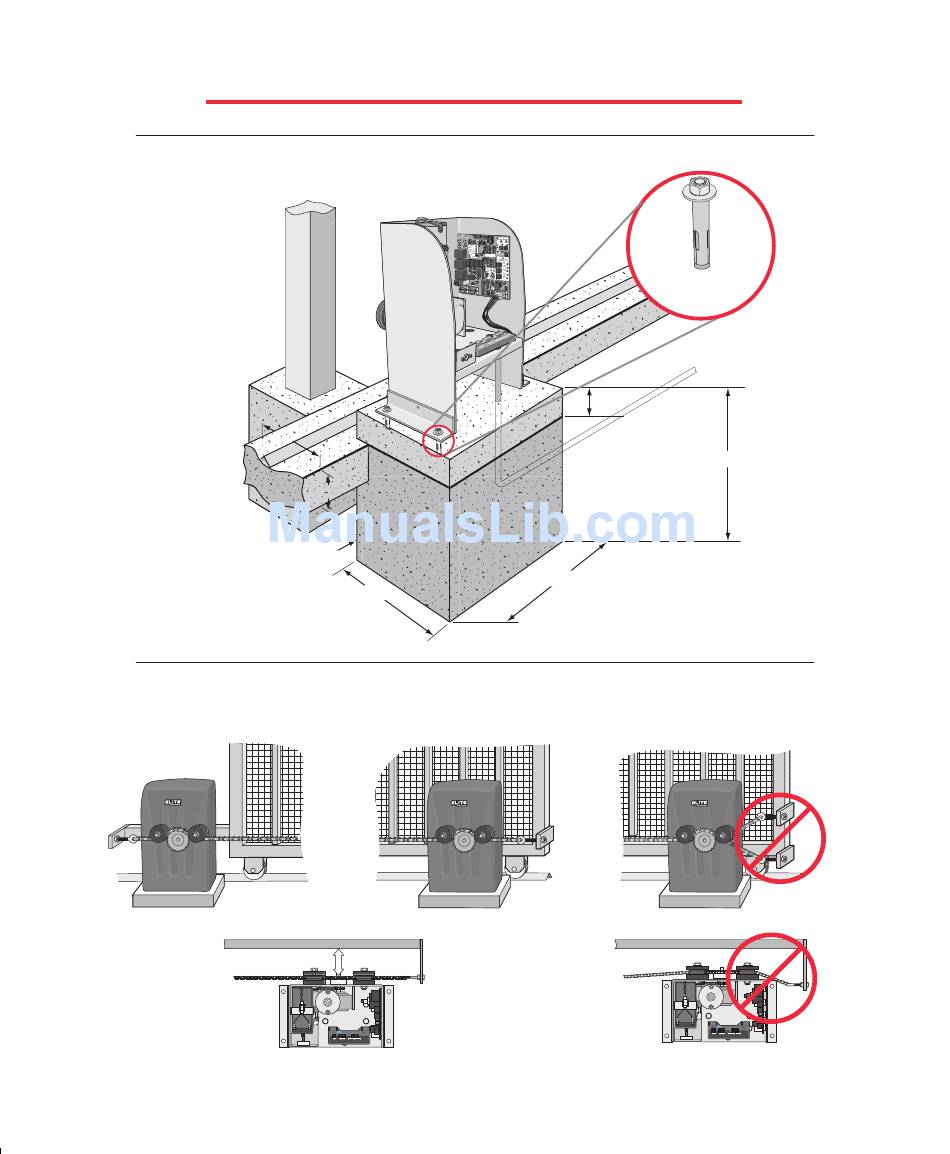

STEP 2: Mounting Operator

Pour concrete bed for Robo Slide. Minimum size of bed is 20" x 15" x 20"d. Suggested
installation for bolts is 1/2" x 3 1/2" (for red-head fastener).
10"
Concrete
(Reinforced Recommended)

STEP 3: Chain Installation

Minimum space between gate and output sprocket must be 4". After you position the gate
operator, bolt-down the operator to the concrete bed. Make certain that the concrete bed is solid.
Correct Chain Installation
Back of Gate
4"
Minimum
Correct Chain Spacing
B Y S T E P I N S T A L L A T I O N
8"
15"
Front of Gate
Gate
® ROBO SURGE SUPPRESSOR
ACCESS SYSTEMS INC ACCESS SYSTEMS INC
eliteaccess.com
CLASS 2
POWER INPUT SAFETY EXIT FIRE DEPT STRIKE OPEN RADIO SUPPLY
18 VAC LOOP LOOP KEY SWITCH PUSH BUTTON RECEIVER
11
Red Head Fastener
1/2" x 3 1/2"
Low Voltage
Power Supply Line
Above
6"
Ground
20"
20"
Incorrect Chain Installation
Gate
® ROBO SURGE SUPPRESSOR
ACCESS SYSTEMS INC ACCESS SYSTEMS INC eliteaccess.com
POWER INPUT SAFETY EXIT FIRE DEPT
18 VAC LOOP LOOP KEY SWITCH
Incorrect Chain Spacing
Too High
Too Low
CLASS 2
STRIKE OPEN RADIO SUPPLY
PUSH BUTTON RECEIVER
