Summary of Contents for First Data FD300Ti

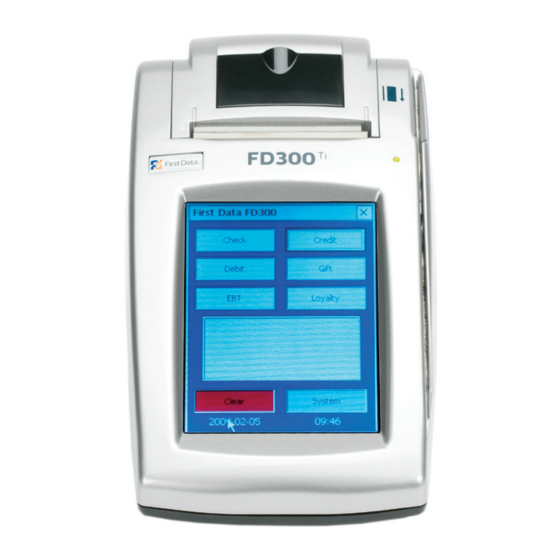

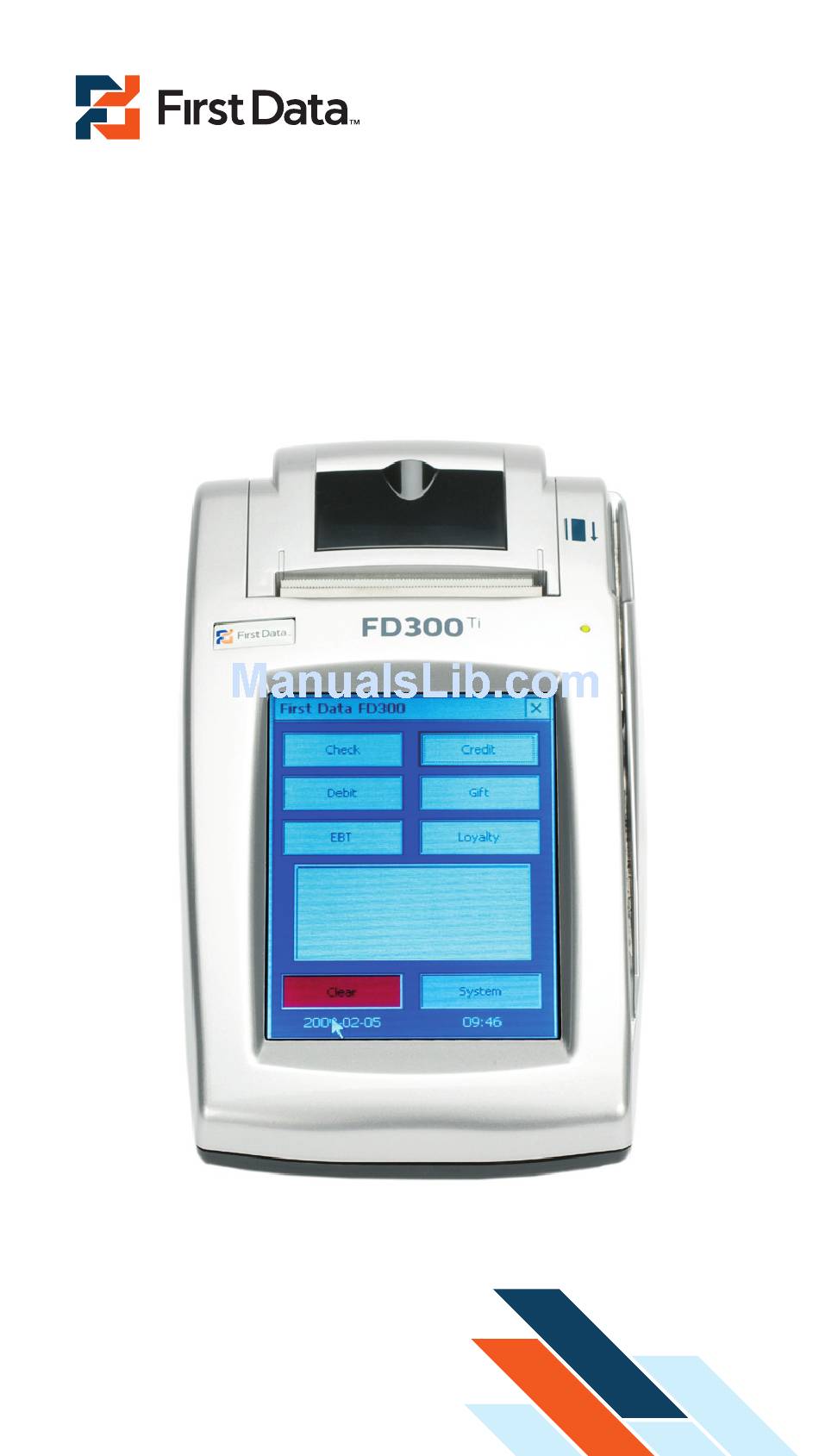

- Page 1 FD300 Terminal quick Set-Up Guide...
- Page 2 Thanks for choosing a First Data™ FD300 Terminal. First Data terminals are some of the fastest, most secure point-of-sale terminals available. Installation is quick and easy. Simply follow the instructions and begin accepting card transactions today. What’s in the box? •...
-
Page 3: What Else Will You Need
What else will you need? If connecting through cable: • Router • Modem • Ethernet Cable • Coaxial Cable If connecting through DSL: • Router • Modem • Ethernet Cable (2) If connecting through dial-up: • Splitter (optional) Note: To prevent damage to the FD Terminals and connected devices, we strongly recommend using a surge protector or UPS (Uninterruptible Power Supply) with a battery backup and phone/fax protection. - Page 4 Getting to know the FD300 ETHERNET PHONE Port connections The ports on the back of the FD300 terminal enable you to add peripherals such as PIN pads, check readers and contactless readers. Phone (blue) ➔ For dial-up transactions using a phone line. USB (gray) and Serial (green) ➔...
- Page 5 AC INPUT AC Input To connect your power supply to a wall outlet. Adapter spec: DELTA / SADP-65KB B Input: 100–240Vac, 50/60Hz, 1.5A Output: 19Vdc, 3.42A Operating temperature: 0°C to 40°C Battery spec: 3V, CR2032 Caution: Risk of explosion if the battery is replaced by an incorrect type. Please dispose of used battery according to local regulations.
- Page 6 Let’s get started… Typical set-up time: 5–10 minutes Where to put the FD Terminal Place the terminal on a desk or tabletop. Avoid areas with direct sunlight, objects that radiate heat, excessive dust and other electrical devices that can cause excessive voltage. Loading the paper Pop the printer cover’s latch to open the cover;...
- Page 7 ROUTER MODEM OUTLET Ethernet Cable Phone Cord...
- Page 8 Cable ROUTER MODEM CABLE OUTLET Ethernet Cable Coaxial Cable...
- Page 9 Dial-up (dedicated line) Option 1 PhONE JACk Phone Cord Dial-up Option 2 PhONE JACk Phone Cord PhONE/FAX Terminals are certified to process on dedicated analog lines or optional IP connections: Digital or rollover lines can reduce processing accuracy (Example: a doctor’s office with rollover lines or voiceover IP (VOIP) are not supported).
-
Page 10: Plug In The Power
Plug in the power Before using the power supply, please connect all peripherals to the terminal. Not doing so may result in damage to the unit or connected devices. Connect the power cord to the power supply via the three-prong end and receiver. -
Page 11: Using The Card Reader
Using the card reader With the idle message displayed, select the desired transaction type. Insert the card into the card reader slot, with the magnetic stripe lying in the slot and facing the terminal. Slide the card in either direction through the slot without stopping. If the card swipe fails, check the position of the magnetic stripe and slide the card again. - Page 12 NOTICE: This equipment meets the appli- correct the interference at his own expense. cable Industry Canada Terminal Equipment Technical Specifications. This is confirmed by the registration number. © 2011 First Data Corporation. All Rights Reserved. FD-SUG-FD300Ti-0111...
