Rear Brake Cylinder - RIEJU MRT 50 Chassis Workshop Manual

52
Removal

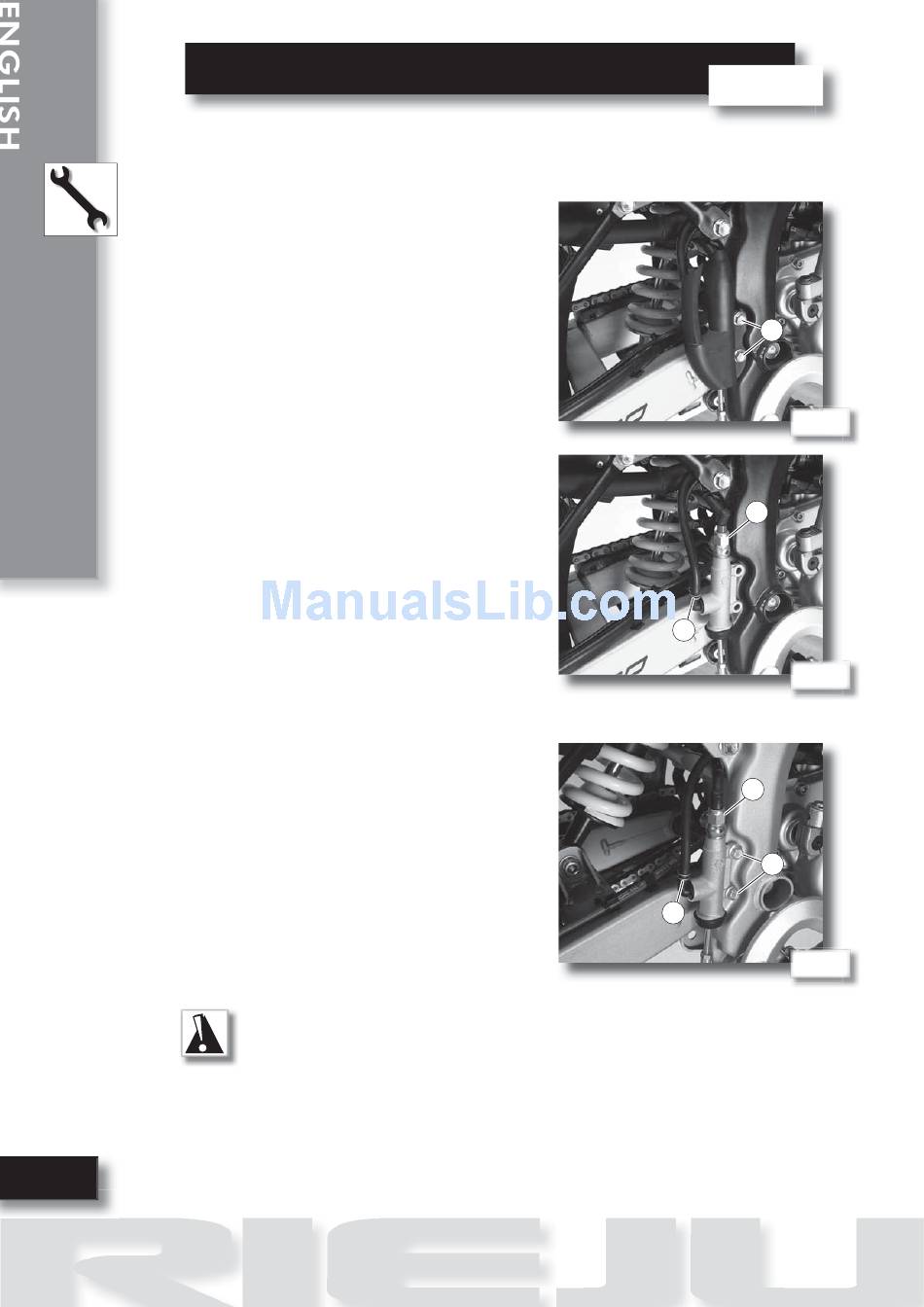

45. REAR BRAKE CYLINDER

MRT SM
Remove the protector from the brake cylinder
by removing the 2 bolts (A/F-93).
To remove the cylinder it is necessary to dis-
connect the STOP switch (B/F-94) and unscrew
it.
Remove the clamp (C/F-94) from the brake fluid
supply tube and drain into a container.
MRT
Unscrew the 3 bolts (A/F-95).
To remove the cylinder it is necessary to dis-
connect the STOP switch (B/F-95) and unscrew
it.
Remove the clamp (C/F-95) from the brake fluid
supply tube and drain into a container.
ATTENTION: Brake fluid is corrosive.
Chassis
MRT SM
A
F-93
B
C
F-94
MRT
B
A
C
F-95
