Summary of Contents for N-Tron 300
- Page 1 300 Series Media Converter & Industrial Ethernet Switches Installation Guide 12/29/2005...
- Page 2 Industrial Ethernet Switch Installation Guide 302MC-XX 302MCE-XX-YY 304TX 305FX-XX 305FXE-XX-YY 306TX 306FX2-XX 306FXE2-XX-YY 308TX Where: XX = ST or SC and YY = -15, -40, or -80 12/29/2005...
- Page 3 The information contained in this document is subject to change without notice. N-TRON Corp. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.
-
Page 4: Safety Warnings
Safety Warnings ELECTRICAL SAFETY WARNING: Disconnect the power cable before removing the enclosure top. WARNING: Do not operate the unit with the top cover removed. WARNING: Do not work on equipment or cables during periods of lightning activity. WARNING: Do not perform any services on the unit unless qualified to do so. WARNING: Do not block the air vents. - Page 5 Hazardous Location Installation Requirements 1. WARNING! Do not disconnect while circuit is live, unless area is known to be non-hazardous. 2. WARNING! Install only in accordance with Local & National Codes of Authorities Having Jurisdiction. 3. Class I, Div 2 Installations require that power connections must be current limited at the power source with an in-line fuse rated at 0.5A.
- Page 6 300 Series Industrial Ethernet Switches The 300 Series Unmanaged Industrial Ethernet Switches support high speed layer 2 switching between ports. All N-TRON 300 Series switches are housed in a ruggedized steel enclosure, and provide Category-5 compliant 10/100-BaseT connections for high performance network design, and hub/repeater upgrades.
-
Page 7: Package Contents
PACKAGE CONTENTS Please make sure the Ethernet Switch package contains the following items: 300 Series Unit N-Tron Product CD Contact your carrier if any items are damaged. INSTALLATION Read the following warning before beginning the installation: WARNING FXE units contain a class 1 laser. Do not stare into the laser beam (fiber optic connector) when installing or operating the product. -
Page 8: Din-Rail Mounting
900-PM three alternative mounting solutions: Our 300 Panel Mount Assembly (P/N: 300-PM) may be used to mount a single 300 Series unit to a panel or other flat surface. Our 900 Panel Mount Assembly (P/N: 900-PM) may be used to securely mount our 100, 200, 300, 400, 500, or 900 Series products to a panel or other flat surface;... -
Page 9: Front Panel

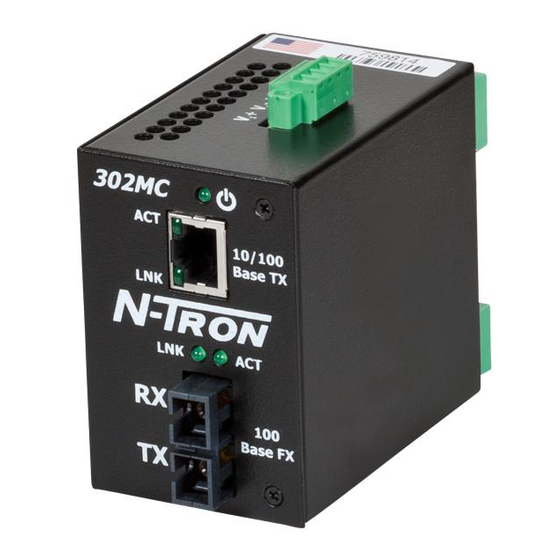

FRONT PANEL Link LED for Fiber Optic Ports Fiber Optic Transmit Ports Fiber Optic Receive Ports Activity LED for Fiber Optic Ports RJ45 Ports Ports 1-4 Auto sensing 10/100BaseT Connections Green LED lights when Power is connected NOTE: Each RJ45 data port has two LED’s for each connector. The lower LED indicates LINK status, and the upper LED indicates ACTIVITY. -
Page 10: Connecting The Unit
CONNECTING THE UNIT For 300 Series fiber units, remove the dust cap from the fiber optic connectors and connect the fiber optic cables. For Fiber Optic ports, the TX port on the near station should be connected to the RX port of the far end station, and the RX port should be connected to the TX port of the far end station. -
Page 11: Troubleshooting
3. Verify cabling used between stations. 4. Verify that cabling is Category 5 (or greater) for 100Mbit Operation. 5. Verify TX is connected to far end RX and vise versa (fiber optic units only). SUPPORT Contact N-TRON Corp. at: TEL: 251-342-2164 FAX: 251-342-6353 www.n-tron.com support@n-tron.com... -
Page 12: Key Specifications
KEY SPECIFICATIONS Physical Height: 3.98” (max.) Width: 2.01” (max.) Depth: 4.19” (max.) Weight: 0.75 lbs. Electrical Input Voltage: 10-30 VDC (Regulated) Input Current: 290mA max. @ 24VDC (Steady State) Inrush Current: 8.0Amp/0.6ms max. @ 24VDC Input Ripple: Less than 100 mV Input Wire Size: 16-28 AWG Environmental... -
Page 13: N-Tron Limited Warranty
N-TRON, Corp. warrants to the end user that this hardware product will be free from defects in workmanship and materials, under normal use and service, for the applicable warranty period from the data of purchase from N-TRON or its authorized reseller. If a product does not operate as warranted during the applicable warranty period, N-TRON shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
