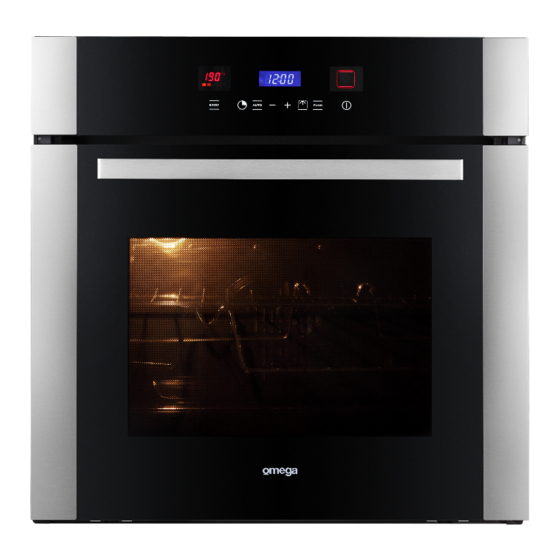

Summary of Contents for Omega OO6A2X

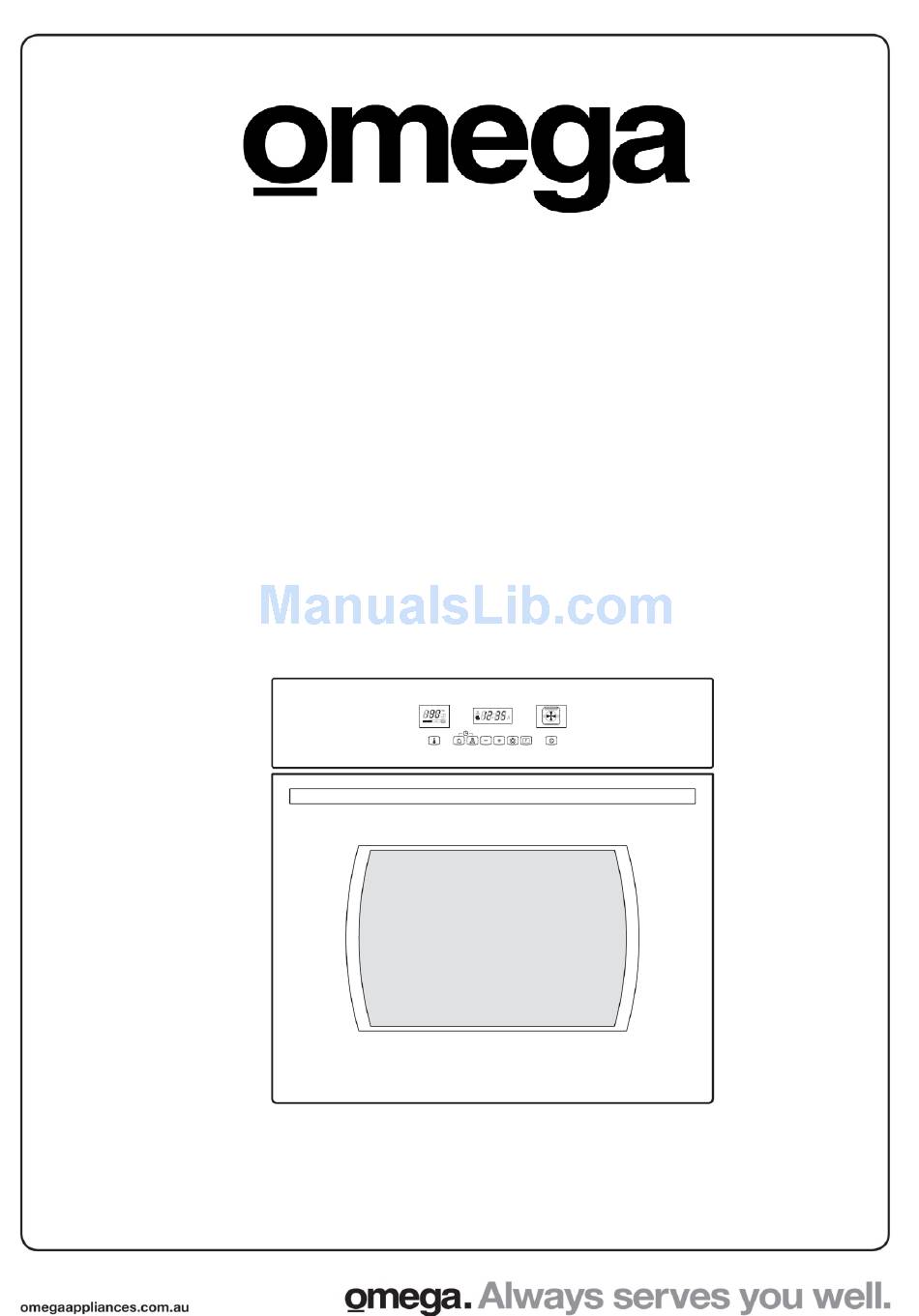

- Page 1 INSTRUCTIONMANUAL PYROLYTIC OVENS OO6A2X...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS................2 INSTALLATION OF THE OVEN..............3 Electricals......................3 Connection to the electrical power mains............5 INSTRUCTIONS FOR USE................6 Oven Racks..................... 6 Cooking functions.................... 7 Electronic control..................... 9 DOOR LOCKING SYSTEM................17 Automatic door locking during pyrolytic cycle..........17 Oven lights....................... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS - Do not disassemble any parts prior to having disconnected the oven from the mains. - Do not use the appliance if any part is broken (for example a glass). Disconnect it from the mains and call service. Before using the oven, it is recommended to make it operate at no load at the maximum temperature for an hour to eliminate the insulating material odour. -
Page 5: Installation Of The Oven
INSTALLATION OF THE OVEN To install the oven into the kitchen a cutout should be made in accordance with the dimensions shown in Fig. 1. The apparatus is to be fastened to the top by means of the two screws provided in the kit through the holes made on the oven uprights. - Page 6 Dimensions are in centimeters Appliances Single oven 58,5 59,5 58,9 59,5 86,5 Fig. 1...
-
Page 7: Connection To The Electrical Power Mains
Connection to the electrical power mains WARNING This apparatus must be earthed. The oven is only for domestic use. The feed voltage and the absorbed power are as indicated on the data plate attached to the left-hand side upright, which can be seen when the oven door is open. Connecting must be carried out by qualified personnel and in accordance with the regulations currently in force. -
Page 8: Instructions For Use
INSTRUCTIONS FOR USE Oven Racks WARNING Never use aluminum foil to cover the oven racks or to line the oven. It can cause damage to the oven liner if heat is trapped under the foil. WARNING Make sure you do not force it to avoid damage to the enamel. The oven has rack guides at four levels. -
Page 9: Cooking Functions
Cooking functions Each type of oven is provided for various cooking systems. Icon Mode Description Used for… The light is on only. In this mode only the internal oven This mode is used defrost convection fan is ON i.e. there is no deep frozen food. - Page 10 The Ring + Down Convection mode Useful for multilevel cooking of uses the lower + circular heating soufflés and pizzas. elements and internal fan. The Convection Down mode uses Useful for soufflés, pizzas and pastry the lower (Bottom) heating element dishes.
-
Page 11: Electronic Control
Electronic control Control panel description The oven control panel is made by three displays and eight touch sensor keys. The displays show: � Time. � Temperature. � Function. Fig. 8 � [A] Touch this key to enable the fast preheat �... - Page 12 Setting the time of day The time of day is always displayed in the 24 hours format. Touch the [B] key (clock/timer) until the word “hour” appears on the clock display. Wait until the time value appears then touch [D]/[E] keys in order to set the proper value. Hold the keys to fasten the decrease/increase operations After a few seconds the whole time of day value starts flashing: wait until the new time of day is steady.
- Page 13 flashing on its own display, touch [D] or [E] keys (-/+) in order to select the desired value, in a range between a minimum and a maximum, depending on the mode. Check the value on the temperature display. 5. Touch the [G] key once more to confirm the selection otherwise it will be confirmed automatically after a short time.
- Page 14 1. Timed cooking setting the cooking time (duration). 2. Timed cooking setting the end of cooking time (stop time). 3. Delayed cooking setting duration and stop time. Touch the [C] in order to toggle between cooking duration (cook time) and end of cooking time (stop time): the words “dur”...
- Page 15 Exceptions are Eco-Bake (preset=190°C), Pyrolyse (fixed 475°C), and warming mode which range is between 50°C and 120°C. Booster (Fast Preheat) This function allows to fasten the oven preheating, saving time. When the oven temperature reaches the set-point a continuous acoustic warning signal, about 5 seconds long, recall the attention of the user.
- Page 16 The cooling fan starts as soon as the function is selected and turns to its higher speed when the inner parts get hot. The oven temperature is automatically set to 475°C in order to perfectly clean the cavity. Fig 9d The control also locks immediately the door in order to guarantee the user safety, given that the temperature inside gets very hot.
- Page 17 Touching any keys will not cause any acoustic feedback. Failure declarations and error codes The control is continuously checking the status of the system. If an abnormal condition is detected for more than 1 minute, a failure occurs: - The heaters and the other loads are disabled. - The display shows a “E”...
- Page 18 Cooking mode t a b l e w i t h preset, minimum, maximum temperatures (°C) and nominal power (Watt) HEATING T MIN PRESET T MAX ELEMENTS MH02 MH01 MODE NAME (°C) (°C) (°C) Pr00 Pr00 LIGHT Pr01 Pr01 DEFROST 2100 Pr02 Pr02...
-
Page 19: Door Locking System
DOOR LOCKING SYSTEM Automatic door locking during pyrolytic cycle For safety reasons, the door is locked automatically as soon as self-clean mode is selected (both standard, both eco clean). The door is also unlocked automatically when the clean time has expired but only after the temperature has fallen below the safety threshold. -
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE Prior to taking any action for cleaning, make sure the apparatus is cut-out from the mains. It is recommended that the oven interior be frequently cleaned. In particular, it should be cleaned every time the grill is used to prevent excessive fouling of the oven interior that may generate fumes or odours during subsequent cooking. -
Page 21: Oven Door Removal
Oven door removal WARNING Make sure that: • The oven is cool and power to the oven has been turned off before removing the door. Failure to do so could result in electrical shock or burns. • The oven door is heavy and fragile. Use both hands to remove the oven door. -
Page 22: Replacement Of The Oven Light
Replacement of the oven light WARNING Make sure that: • The oven and lights are cool and power to the oven has been turned off before replacing the light bulb(s). Failure to do so could result in electrical shock or burns. •... -
Page 23: Guidance Temperature An Time Schedule For Cooking
GUIDANCE TEMPERATURE AN TIME SCHEDULE FOR COOKING Traditional cooking system Hot-air cooking system Rack position FOOD Mode Cooking time Cooking time in (from the bottom) Temperature °C Temperature °C in minutes minutes Poork,calf (roast) etc. 200 ÷ 225 100÷ 150 175 ÷...
