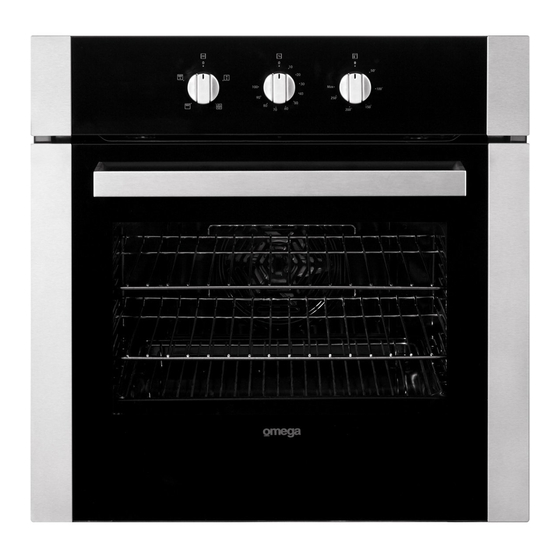

OPERATING AND INSTALLATION INSTRUCTIONS
FOR
OO654X
&
OO654WA
M
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OO654X and is the answer not in the manual?

Questions and answers

Ken Smeaton
July 7, 2025

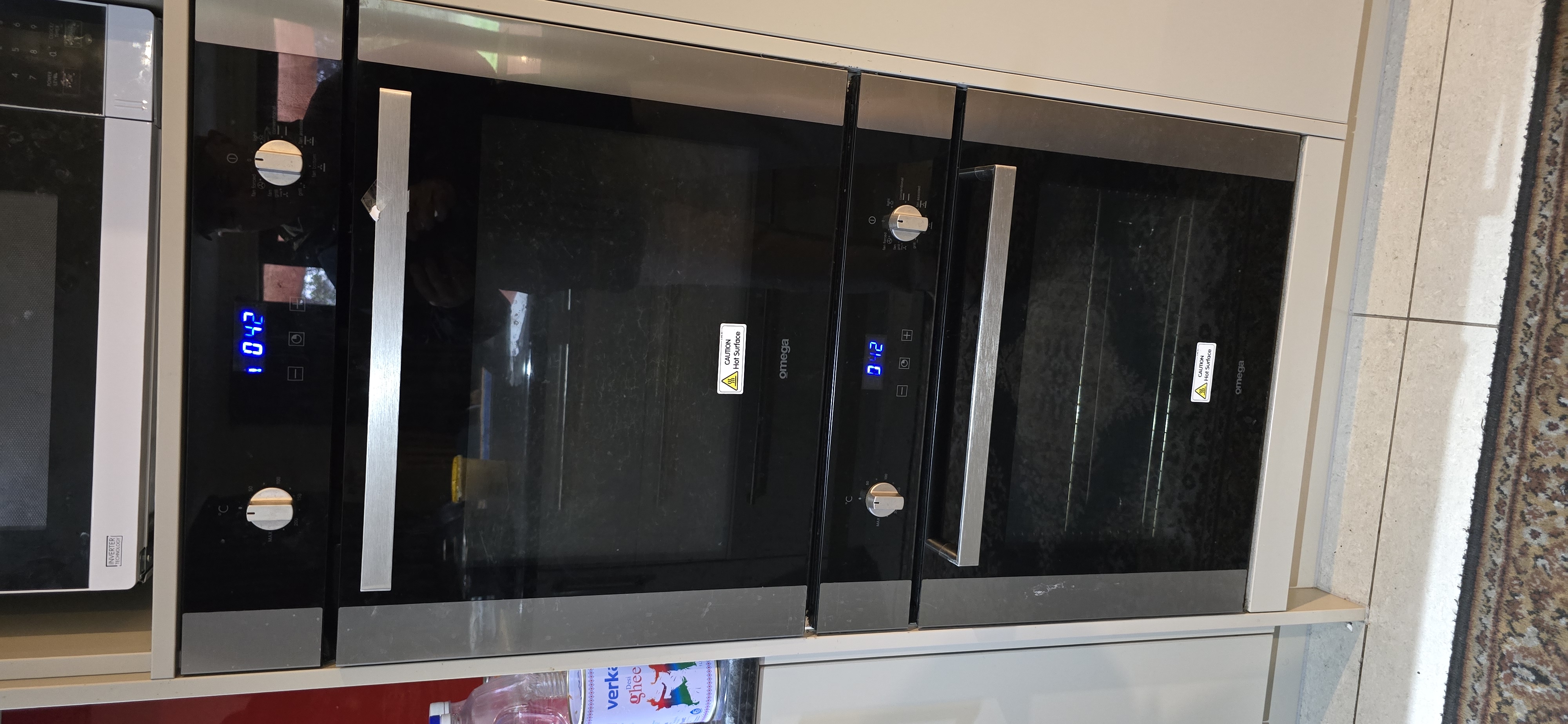

how can I find the screws which need to be unscrewed to get the oven out of the wall

User image 686b47154f257
0

Subscribe to Our Youtube Channel

Related Manuals for Omega OO654X

Summary of Contents for Omega OO654X

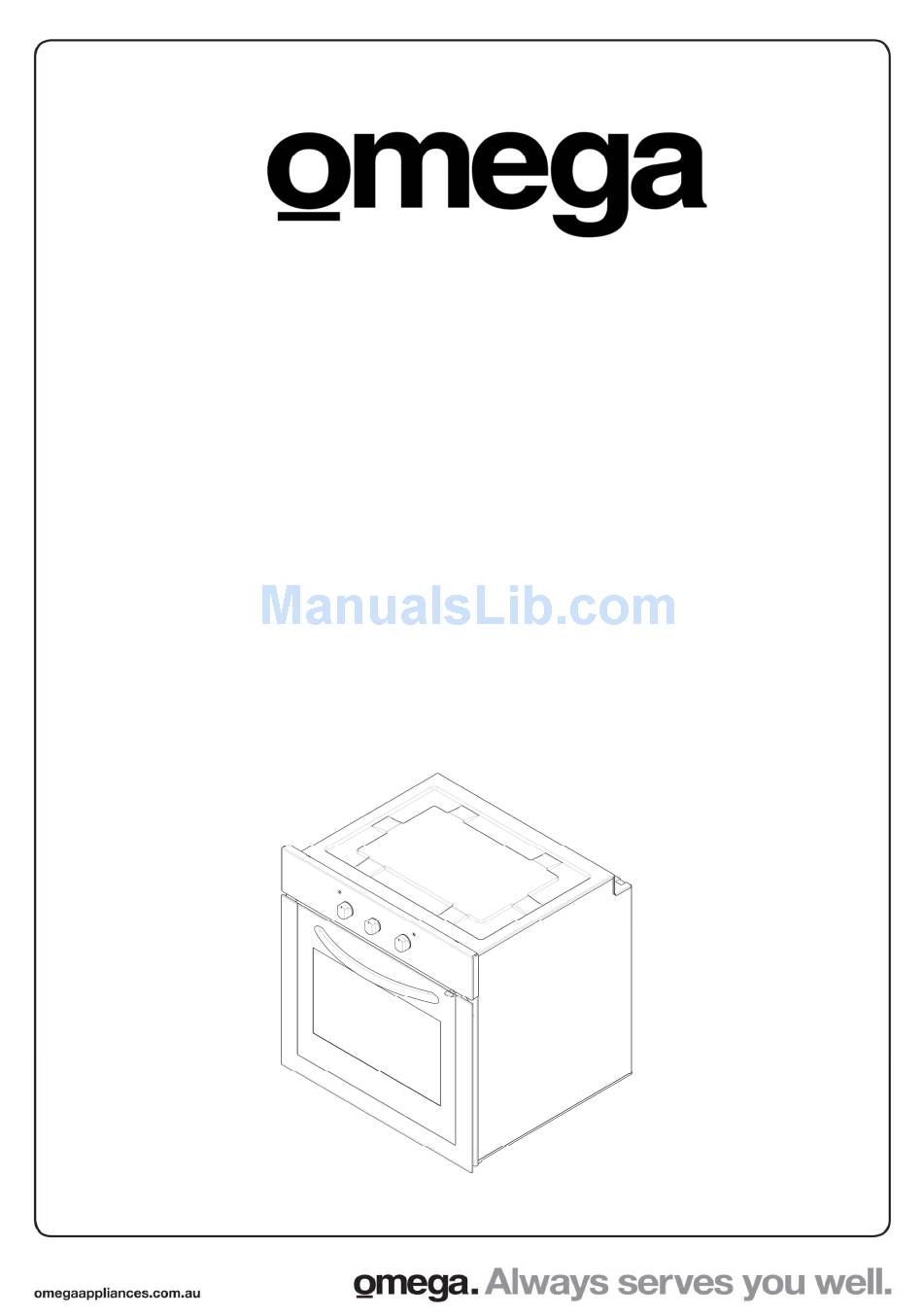

  • Page 1 OPERATING AND INSTALLATION INSTRUCTIONS OO654X & OO654WA...

  • Page 2: Table Of Contents

    INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS FOR OMEGA BUILT-IN ELECTRIC OVEN RANGE OO654X and OO654WA BUILT-IN ELECTRIC OVEN CONGRATULATIONS Thank you for choosing one of our many fantastic built in ovens. We are confident that you will now be able to meet your cooking needs. Before you use the oven we strongly recommend that you read though the whole user manual which provides the description of this product and the proper use of its functions.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

  • Page 4: Appliance Details

    APPLIANCE DETAILS ELECTRICAL DETAILS: OVENS: OO654X and OO654WA Rated Voltage: 220 to 240V ac 50 Hz Max Rated Inputs: 2000W Supply Connection: OVENS - 10 A plug This information can be found on the rating plate (data label) affixed to the inside of the door jamb.
  • Page 5 OVEN LAMP REPLACEMENT • The appliance must first be disconnected from the power outlet or turned off at your isolation switch. • Unscrew the glass cover attached to the lamp holder; anti-clockwise. • Unscrew the lamp and replace it with another high-temperature lamp with the following characteristics: Type: E 14 Voltage: AC220V-240V Wattage: 25W Temperature rating: 300°...

  • Page 6: Installation

    INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in, during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects.
  • Page 7 INSTALLATION OF BUILT IN OVEN Insert the oven into cabinet partly by pushing it forward. Open the oven door and insert 2 screws into the holes on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. The dimensions and material of the cabinet in which the oven will be installed must be correct and resistant to increases in temperature.

  • Page 8: Operating Instructions

    OPERATING INSTRUCTIONS FRONT VIEW: INTERNAL VIEWS: 1. Control Panel. 08. Wire Grill. 2. Handle. 09. Racks/Shelf Holders. 3. Oven Door. 10. Oven Light. 4. Child Lock (not available on these models). 11. Turbo Heating Element. 5. Tray. 12. Fan. 6. Oven Bottom. 13.
  • Page 9 CONTROLS OVEN FUNCTION/WARNING LIGHT CONTROL The oven function/warning light control button is used to select the different functions (an example is figure 11). Each is explained in detail. To select a function, turn the control knob to the desired oven function and then set the temperature with the thermostat control.
  • Page 10 OVEN FUNCTION CONTROL CHART The oven’s mechanical timer must be on and in use or the control knob set to manual for the oven to work. Note: Oven shelves are numbered from 5 at the top down to 1 at the bottom when referring to the food cooking chart.
  • Page 11 OVEN FUNCTION CONTROLS You can start the defrost operation by putting the frozen food into oven and bringing the function control knob to the indicated mark. This function will not cook/bake the food; it only helps to defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the third rack support from the bottom (Figure 13).
  • Page 12 Mid-Grill Function: This function is used for grilling. Adjust the function control knob so it indicates the Mid-Grill function symbol and adjust the oven timer to the recommended time for cooking. Set the oven’s thermostat control knob to the required temperature. After a preheating period of 10 minutes, put your food into the oven. For grilling, put the food on the grill rack and sit into the tray.
  • Page 13 USING THE MECHANICAL TIMER To set a time, rotate the timer control knob clockwise to a certain time range between 0 - 100 minutes, as shown on the picture (Figure 16). The oven will stop when the set time range is completed, and the timer will give an audible warning once. This is referred to as Manual use or Manual operation, when you want total control of the cooking functions and cooking time.

  • Page 14: Cleaning

    CLEANING NOTE: Cleaning and maintenance operations must only be carried out when the oven is cool. The appliance should be disconnected from the power outlet or turned off at your isolation switch before commencing any cleaning process. Cleaning the oven exterior: Before starting to clean your oven, be sure that all control buttons are off and your appliance has cooled off.

  • Page 15: Transportation

    TRANSPORTATION Keep the original carton of the product and use this packaging if the item needs to be transported. Follow the transport signs on the carton. Place a paper between the upper cover and cooking panel, cover the upper cover, than tape to the side surfaces of oven.

  • Page 16: Cooking Guides

    Oven Shelf Location Your Omega oven has five positions or racks for the oven shelves to be positioned depending on your choice of cooking function and size of roasting dishes or containers. These are numbered from 1 (the lowest shelf position) to 5 (the highest shelf position).
  • Page 17 Grilling Cooking times may vary according to the nature of the foods, their homogeneity and their volume. When cooking a certain food for the first time, it is advisable to choose the lowest temperature and then increase temperature as required. Cakes and Baking Organize the oven shelves while the oven is cold and before preparing a recipe.
  • Page 18 Omega products are distributed in Australia by Shriro Australia Pty Ltd. Locked Bag 5002, Kingsgrove NSW 2208 Phone: 1300 795 572 Fax: (02) 9415 5525 Email: service@shriro.com.au Web: www.omegaappliances.com.au...
