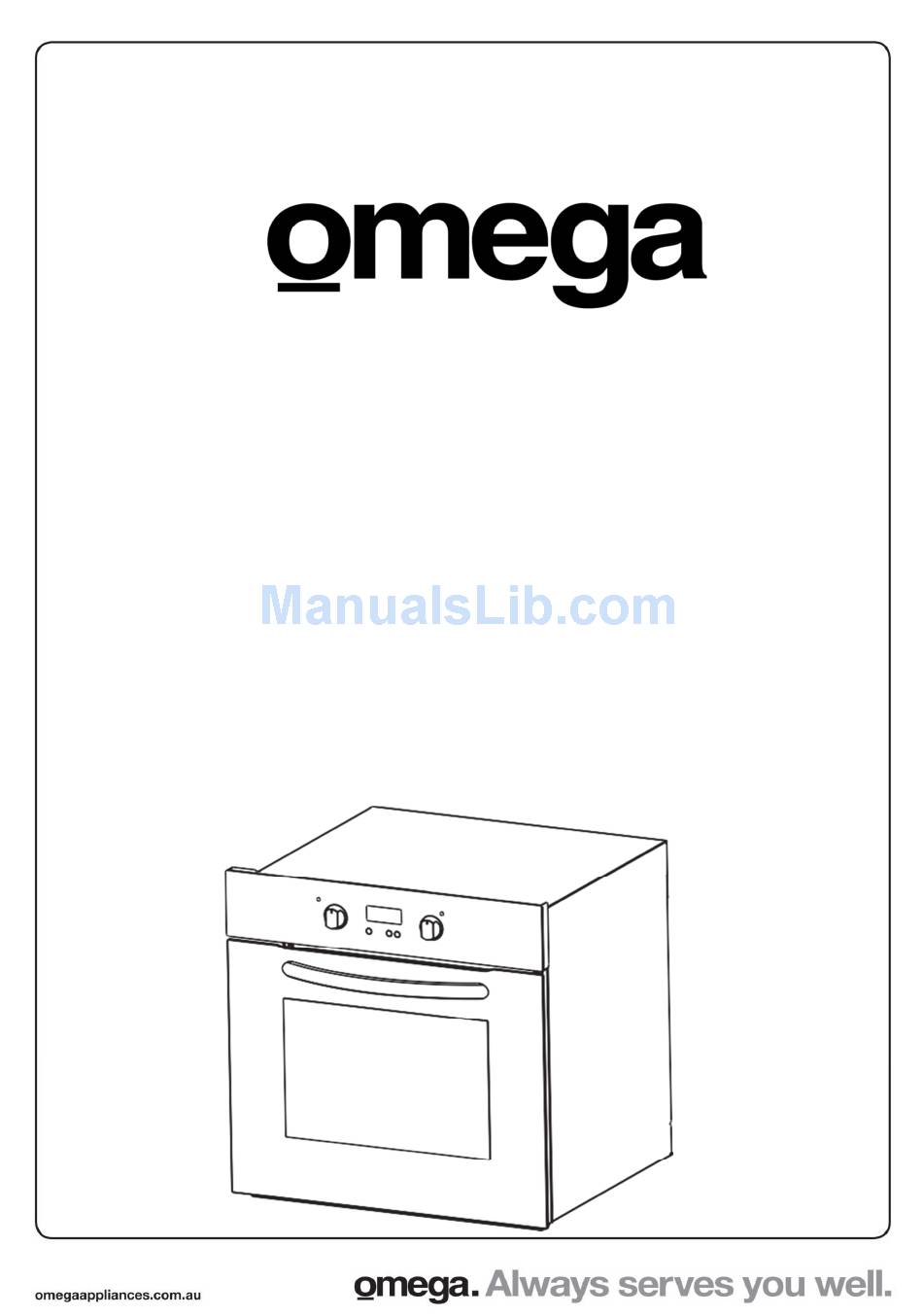

- Page 1 OPERATING AND INSTALLATION INSTRUCTIONS OMEGA 60CM BUILT-IN PYROLYTIC ELECTRIC OVEN OO6AX...
-
Page 2: Table Of Contents
Due to continual product development, Omega reserves the right to alter specifications or appearances without notice. CONTENTS SECTION PAGE NO. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. -
Page 4: Appliance Details
APPLIANCE DETAILS ELECTRICAL DETAILS: OVENS: OO6AX Rated Voltage: 220 to 240V ac 50 Hz Max Rated Inputs: 2600W Supply Connection: OVENS - 15 A plug This information can be found on the rating plate (data label) affixed to the inside of the door jamb. - Page 5 OVEN LAMP REPLACEMENT • The appliance must first be disconnected from the power outlet or turned off at your isolation switch. • Unscrew the glass cover attached to the lamp holder; anti-clockwise. • Unscrew the lamp and replace it with another high-temperature lamp with the following characteristics: Type: E 14 Voltage: AC220V-240V Wattage: 25W Temperature rating: 300°...
-
Page 6: Installation
INSTALLATION The adjacent furniture must be able to withstand a minimum temperature rise of 50°C above the ambient temperature of the room it is located in during periods of use. The power supply to the appliance must be cut off before any adjustments or maintenance work is done on it. PREPARATION FOR INSTALLATION AND USE Manufactured with best quality parts and materials, this modern, functional and practical oven will meet your needs in all respects. - Page 7 INSTALLATION OF BUILT IN OVEN Insert the oven into cabinet partly by pushing it forward. Open the oven door and insert 2 screws into the holes on the oven frame. While the product frame touches the wooden surface of the cabinet, tighten the screws. The dimensions and material of the cabinet in which the oven will be installed must be correct and resistant to increases in temperature.
-
Page 8: Operating Instructions
OPERATING INSTRUCTIONS FRONT VIEW: INTERNAL VIEWS: 1. Control Panel. 8. Wire Grill (2). 2. Handle. 9. Racks/Shelf Holders. 3. Oven Door. 10. Oven Light. 4. Door Lock. 11. Turbo Heating Element. 5. Tray. 12. Fan (behind plate). 6. Bottom Heating Element (under plate). 13. - Page 9 CONTROLS OVEN FUNCTION/WARNING LIGHT CONTROL The oven function control knob is used to select the different functions. Each is explained in detail further in the manual. To select a function, turn the control knob to the desired oven function and then set the temperature with the thermostat control.
- Page 10 OVEN FUNCTION CONTROL CHART Note: Oven shelves are numbered from 5 at the top down to 1 at the bottom when referring to the food cooking chart. During heated oven functions a cooling fan in the top of the oven will operate in order to cool down the oven door and kitchen cabinet as well as reducing condensation in the oven.
- Page 11 OVEN FUNCTION CONTROLS You can start the defrost operation by putting the frozen food into oven and bringing the function control knob to the indicated mark. This function will not cook/bake the food; it only helps to defrost it within a short time. Put the food to be defrosted on the wire rack that you will place on the third rack support from the bottom (Figure 13).
- Page 12 Fan Assist Function: This is the function where the air coming from the lower and upper heating elements is circulated into the oven by the fan motor and blade. Adjust the function control knob so it indicates the Fan Assist Function symbol and adjust the oven timer to the recommended time for cooking.
- Page 13 Maxi-Grill with Fan Function: This function will ensure complete, fast and all over grilling by working the fan, the grill and the upper heating element at the same time. Adjust the function control knob so it indicates the Maxi-Grill with Fan function symbol and adjust the oven timer to the recommended time for cooking.
- Page 14 USING THE DIGITAL TIMER Time of Day Adjustment: The time must be adjusted before starting to use the oven. Following the connection of the power supply to the oven, the display will begin to flash. Leave the oven function control at “off” and then press either the “+”...
- Page 15 Semi-Automatic Programming According to Finish Time: This function is used to cook according to desired finishing time. The food to be cooked is put into the oven and the oven is adjusted to the desired cooking function and temperature depending on the food/dish to be cooked (the manual operation symbol will be lit).
-
Page 16: Cleaning
ACCESSORIES It is recommended that you use the containers indicated depending on the food you will cook in your oven. You can also use glass containers, cake pans and special oven trays suitable for use in your oven (available in kitchenware shops). -
Page 17: Troubleshooting
TROUBLESHOOTING If the oven does not operate: • The oven may be unplugged from the power source or switched off at the power source. • The household fuse has blown or household power supply is off. • The Timer (if available) may not set correctly. If the oven does not heat: •... -
Page 18: Recommended Cooking Times
RECOMMENDED COOKING TIMES LOWER-UPPER HEAT – (Conventional) LOWER-UPPER HEAT + FAN (Fan Assist) FOOD Thermostat Rack Cooking Period Thermostat Rack Cooking Period (min) pos. (°c) pos. (min) pos (°c) pos. Scones Plain or fruit 10-15 10-15 Cake - Butter cake (deep) Cake - Sponge 25-30... -
Page 19: Cooking Guides
Oven Shelf Location Your Omega oven has five positions of racks for the oven shelves to be positioned depending on your choice of cooking function and size of roasting dishes or containers. These are numbered from 1 (the lowest shelf position) to 5 (the highest shelf position). - Page 20 Grilling Cooking times may vary according to the nature of the foods, their homogeneity and their volume. When cooking a certain food for the first time, it is advisable to choose the lowest temperature and then increase temperature as required. Cakes and Baking Organize the oven shelves while the oven is cold and before preparing a recipe.
