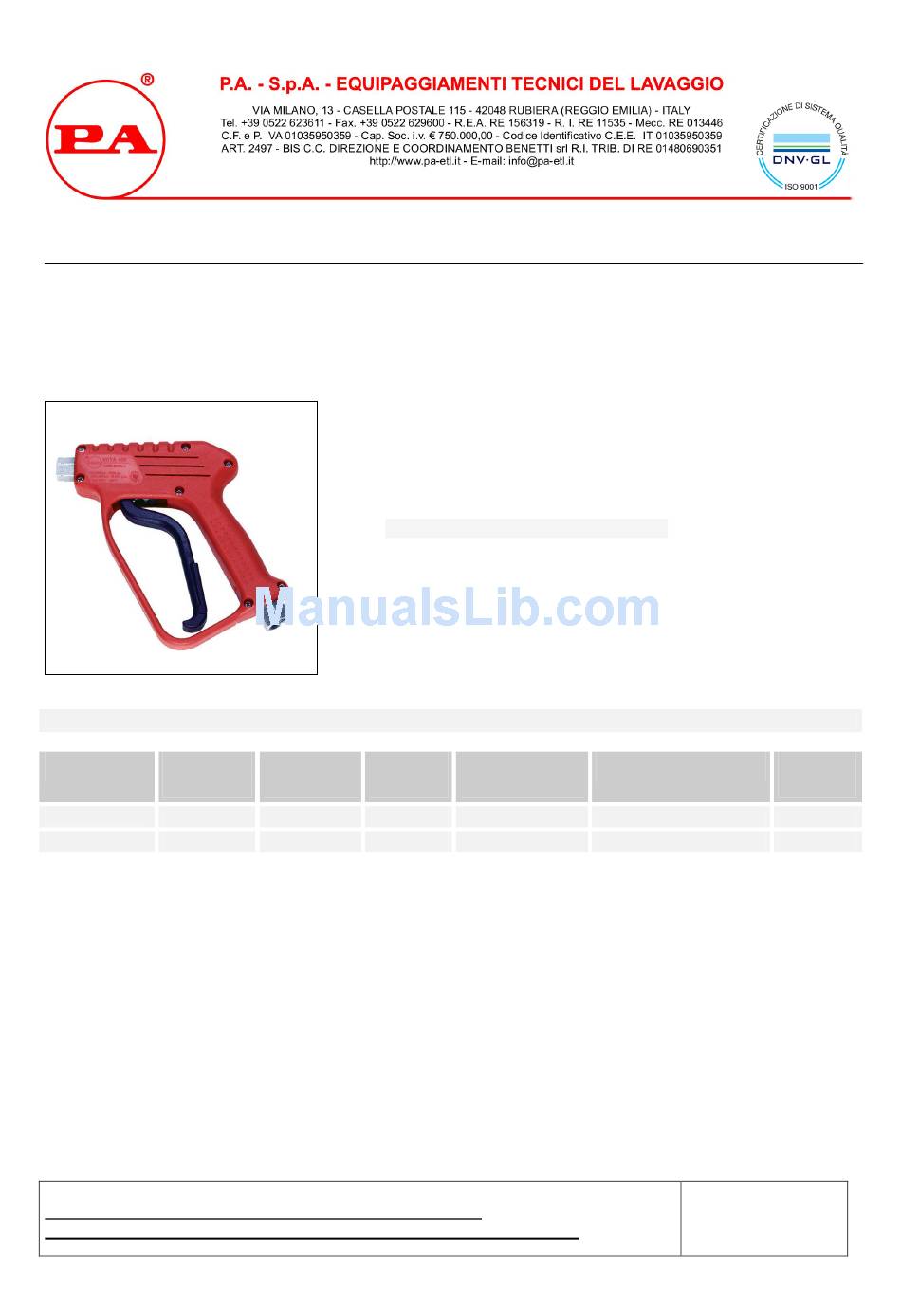

PA NOVA 400 Technical Manual

NOVA 400 inox
Guns suitable for use up to 400 bar – 40 MPa rated pressure pumps.
No fluid passage upon trigger release.
P/N RATED
PRESSURE
bar - MPa
30.5650.00
400 - 40
30.5650.50 400 - 40
(1) The gun has been designed for continuous use, at a water temperature of 90° C (195° F). It can resist a t the max
temperature of 160° C (320° F) for short periods only , as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60° C involves for the operator the use of adequate sa fety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
Spray gun - 400 bar – 40 MPa (AISI 303))
•
30.5650.00
•
30.5650.50
- Covered by shockproof plastic semi-housings
- Seat and shutter in Sst
- Totally built in stainless steel AISI 303
- Ergonomic construction
- Minimum fatigue for trigger opening and use
TECHNICAL SPECIFICATIONS
PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
440 - 44 40
440 - 44 40
DN10
NOVA 400 G3/8 G1/4 FF
NOVA 400 3/8NPT 1/4NPT FF
(1) MAX
TEMPERATURE
° C
160 G3/8 G1/4
160 3/8NPT 1/4NPT
Last Update: 14/02/12
E 119
Technical manual :
INLET WEIGHT
OUTLET
gr
FF 840
FF 840
n. 12.9119.00
