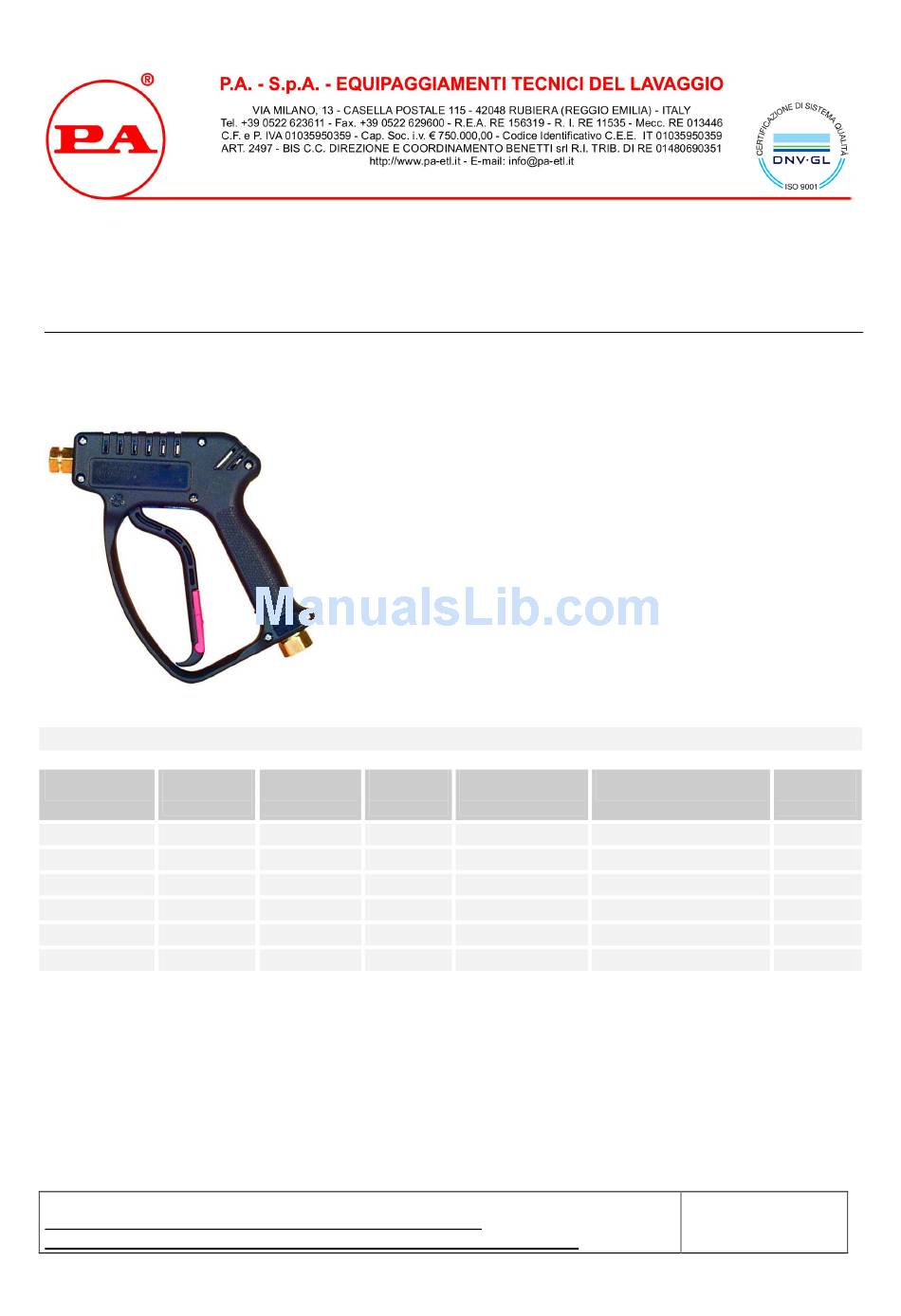

PA 30.2000.00 VEGA Technical Manual

VEGA
Spray gun - 310 bar – 31 MPa
Guns suitable for use up to 310 bar – 31 MPa rated pressure pumps.
No fluid passage upon trigger release.
P/N RATED
PRESSURE
bar - MPa
30.2000.00
310 - 31
30.2000.50 310 - 31
30.2000.80
310 - 31
30.2000.92 310 - 31
30.2030.00
310 - 31
30.2030.80
310 - 31
(1) The gun has been designed for continuous use, at a water temperature of 90° C (195° F). It can resist a t the max
temperature of 160° C (320° F) for short periods only , as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60° C involves for the operator the use of adequate sa fety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
•
30.2000.00
•
30.2000.50
•
30.2000.80
•
30.2000.92
•
30.2030.00
•
30.2030.80
- Covered by shockproof plastic semi-housings.
- Sst seat and ball.
- Internal structure in brass and Sst.
- Ergonomic construction.
- Minimum fatigue for trigger opening and use.

TECHNICAL SPECIFICATIONS

PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
350 - 35 40
350 - 35 40
350 - 35 40
350 - 35 40
350 - 35 40
350 - 35 40
DN10
VEGA G3/8 G1/4
VEGA 3/8NPT 1/4NPT FF
VEGA G3/8 G1/4
VEGA A-M22 G1/4
VEGA + SW8 G3/8 G1/4 FF
VEGA + SW8 G3/8 G1/4 MF
(1) MAX
TEMPERATURE
° C
G3/8 G1/4
160
160 3/8NPT 1/4NPT
G3/8 G1/4
160
160 A-M22 G1/4
G3/8 G1/4
160
160 G3/8 G1/4
Last Update: 07/07/10
E 108
Technical manual :
FF
MF
MF
INLET WEIGHT
OUTLET
gr
FF
740
FF 740
MF
740
MF 740
FF
750
MF 750
n. 12.9108.00
1
