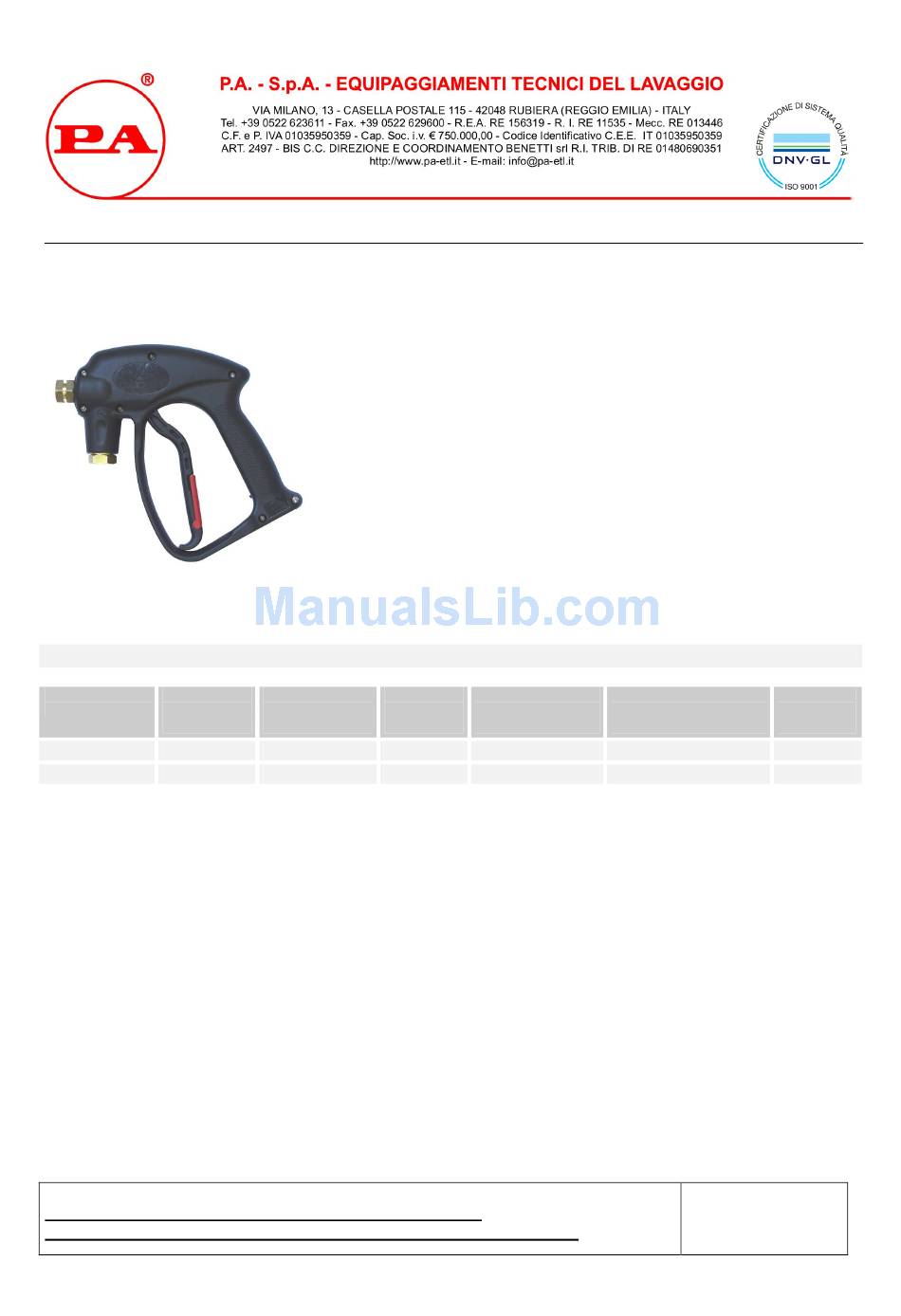

PA RL22 Technical Manual

RL22
– Spray gun 310 bar – 31 MPa
Guns suitable for use up to 310 bar – 31 MPa rated pressure pump.
No fluid passage upon trigger release.
P/N RATED
PRESSURE
bar - MPa
30.0400.00 310 - 31
30.0420.00 310 - 31
(1) The gun has been designed for continuous use, at a water temperature of 90°C (195° F). It can resist at
the max temperature of 160° C (320° F) for short peri ods only, as, when the gun shuts off, the heater
continues to transmit the heat to the water, thus increasing both temperature and pressure up to high,
dangerous values.
Using the gun at a water temperature higher than 60°C involves for the operator the use of adequate sa fety
devices, such as gloves, glasses, etc...
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
•
30.0400.00
•
30.0420.00
- Front hose fitting on handle
- Covered by shockproof plastic semi-housings.
- Seat and Ball in Sst
- Internal structure in brass and Sst.
- Ergonomic construction
- Minimum fatigue for trigger opening
TECHNICAL SPECIFICATIONS
PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
350 - 35 40
350 - 35 40
Technical manual :
DN10
RL22 G3/8 G1/4 FF
RL22 SW8 G3/8 G1/4 FF
(1) MAX INLET - OUTLET
TEMPERATURE
° C
160 G3/8 F - G1/4 F
160 G3/8 F - G1/4 F
Last Update: 07/07/10
E 134
WEIGHT
gr
475
490
n. 12.9134.00
