PA RL57 sst Technical Manual

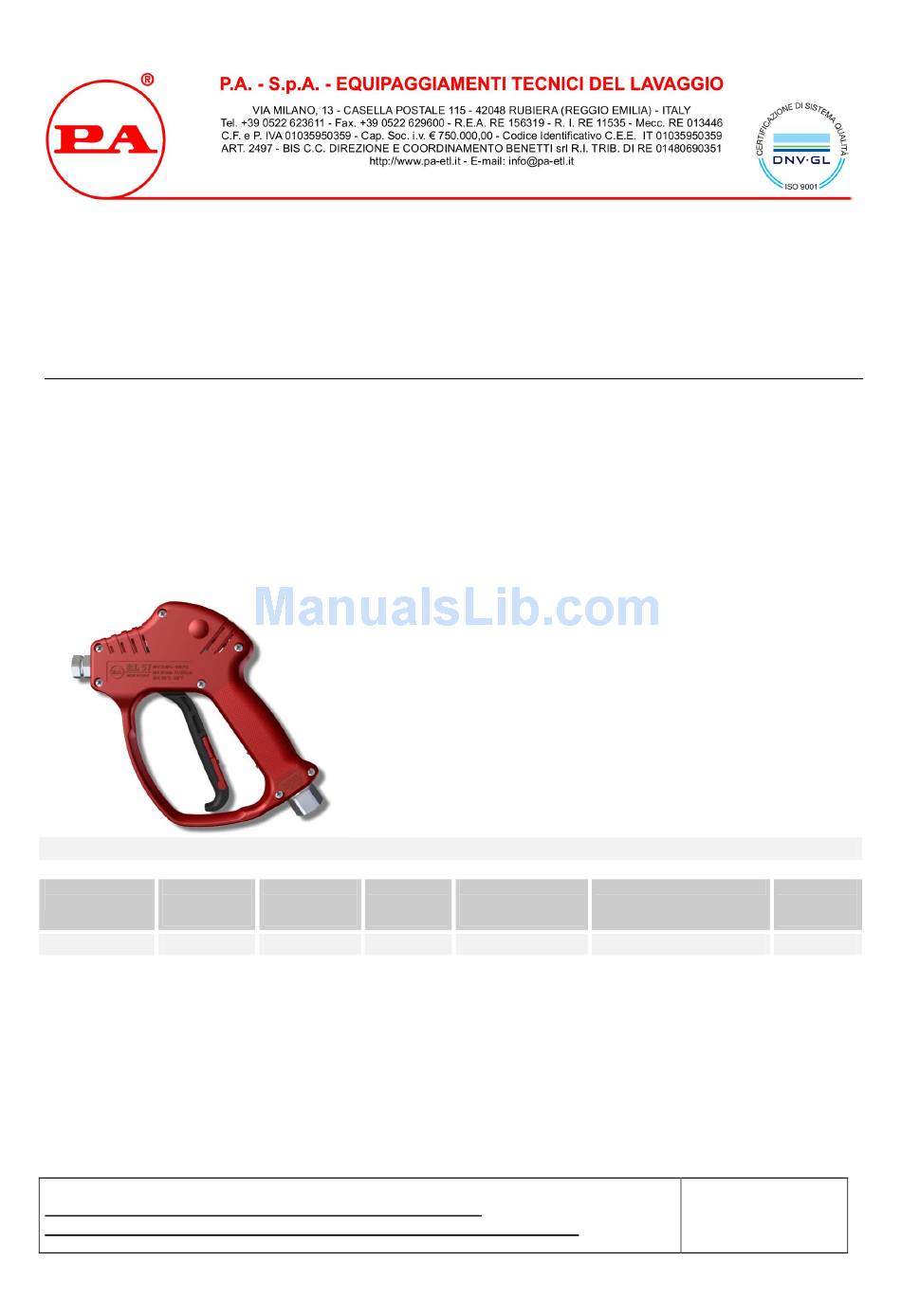

RL57 sst
– Spray gun 500 bar – 50 MPa
Guns suitable for use up to 500 bar – 50 MPa rated pressure pumps.
No fluid passage upon trigger release.
New mechanical device with double connecting rods to guarantee less strain when opening and holding.
P/N RATED
PRESSURE
bar - MPa
30.4700.00
500 - 50
(1) The gun has been designed for continuous use, at a water temperature of 90° C (195° F). It can resist a t the max
temperature of 160° C (320° F) for short periods only , as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60° C involves for the operator the use of adequate sa fety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
•
30.4700.00
- Covered by shockproof plastic semi-housings.
- Seat in Sst and ball in Widia.
- Totally built in stainless steel AISI 303.
- Ergonomic construction.
- Minimum fatigue for trigger opening and use
- New mechanical opening device with double connecting rods
- New trigger design, rotating on a fixed pin to guarantee better
mobility and steadiness

TECHNICAL SPECIFICATIONS

PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
550 - 55 28
RL57 sst
(1) MAX INLET - OUTLET
TEMPERATURE
° C
160 G3/8 - G1/4 FF
Last Update: 14/02/12
E 143
Technical manual :
DN10
G3/8 - G1/4 FF
WEIGHT
gr
715
n. 12.9143.50
1
