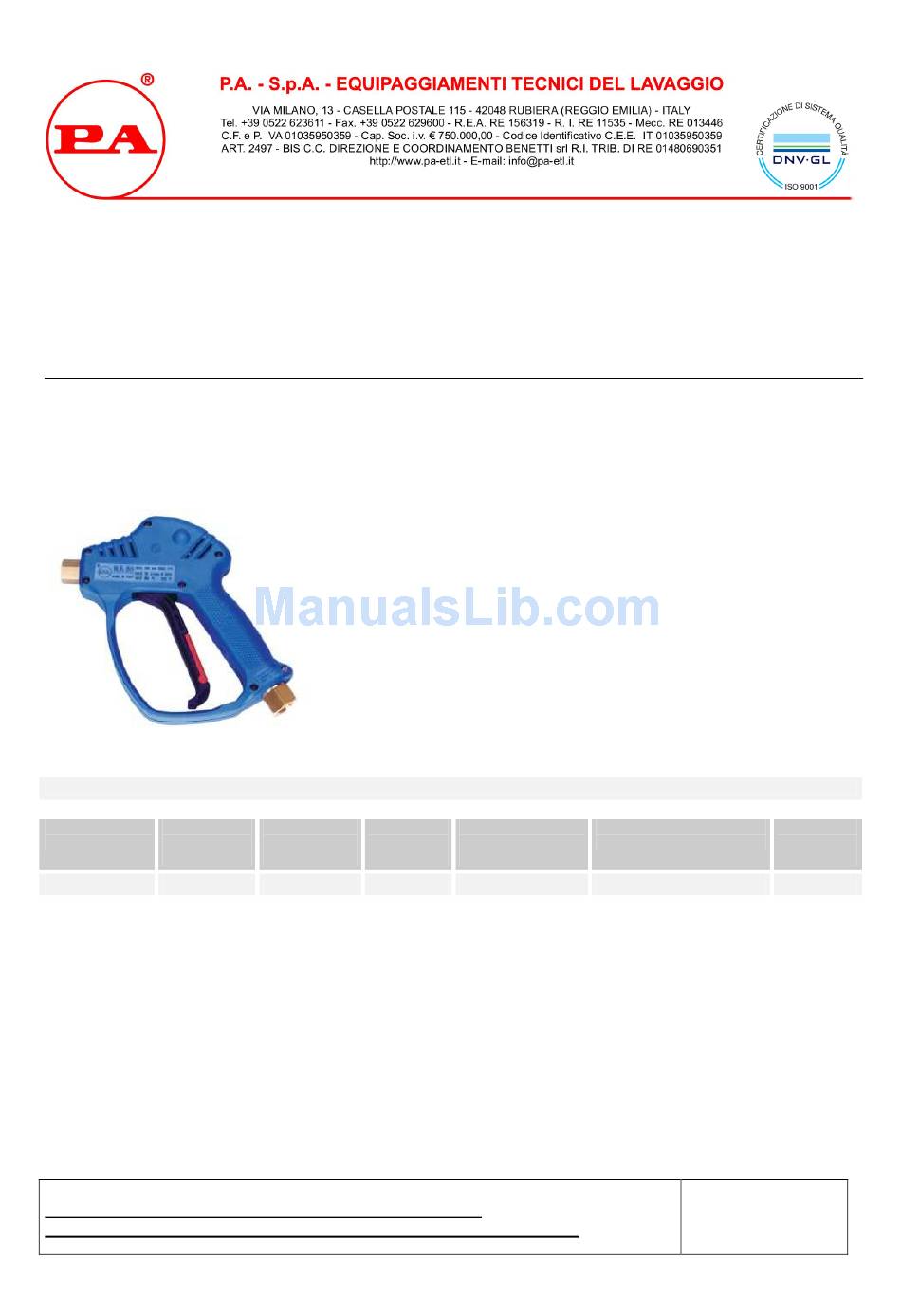

PA RL56 30.4500.10 Technical Manual

RL56
– Spray gun 350 bar – 35 MPa
Guns suitable for use up to 350 bar – 35 MPa rated pressure pumps.
No fluid passage upon trigger release.
New mechanical device with double connecting rods to guarantee less strain when opening and holding
P/N RATED
PRESSURE
bar - MPa
30.4500.10 350 - 35
(1) The gun has been designed for continuous use, at a water temperature of 90° C (195° F). It can resist a t the max
temperature of 160° C (320° F) for short periods only , as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60° C involves for the operator the use of adequate sa fety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.
•
30.4500.10
- Covered by shockproof plastic semi-housings.
- Sst seat and ball.
- Internal structure in brass and Sst.
- Ergonomic construction.
- Minimum fatigue for trigger opening and use
- New mechanical opening device with double connecting rods
- New trigger design, rotating on a fixed pin to guarantee better
mobility and steadiness
TECHNICAL SPECIFICATIONS
PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
390 - 39 30
RL56 G3/8 G1/4 FF
(1) MAX
TEMPERATURE
° C
160 G3/8 G1/4 FF
Last Update: 07/07/10
E 132
Technical manual :
DN10
INLET WEIGHT
OUTLET
gr
660
n. 12.9132.00
1
