PA RL26 30.1790.00 Technical Manual

RL26
Weeping –
Guns suitable for use up to 250 bar – 25 MPa rated pressure pumps.
Always leaks a small quantity of fluid.
P/N RATED
PRESSURE
bar - MPa
30.1790.00 250 - 25
30.1790.50 250 - 25
30.1792.00 250 - 25
30.1795.00 250 - 25
30.1794.00
250 - 25
(1) The gun has been designed for continuous use, at a water temperature of 90° C (195° F). It can resist a t the max
temperature of 160° C (320° F) for short periods only , as, when the gun shuts off, the heater continues to transmit the heat
to the water, thus increasing both temperature and pressure up to high, dangerous values.
Using the gun at a water temperature higher than 60° C involves for the operator the use of adequate sa fety devices,
such as gloves, glasses, etc.
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the Use and Maintenance booklet of the machine.

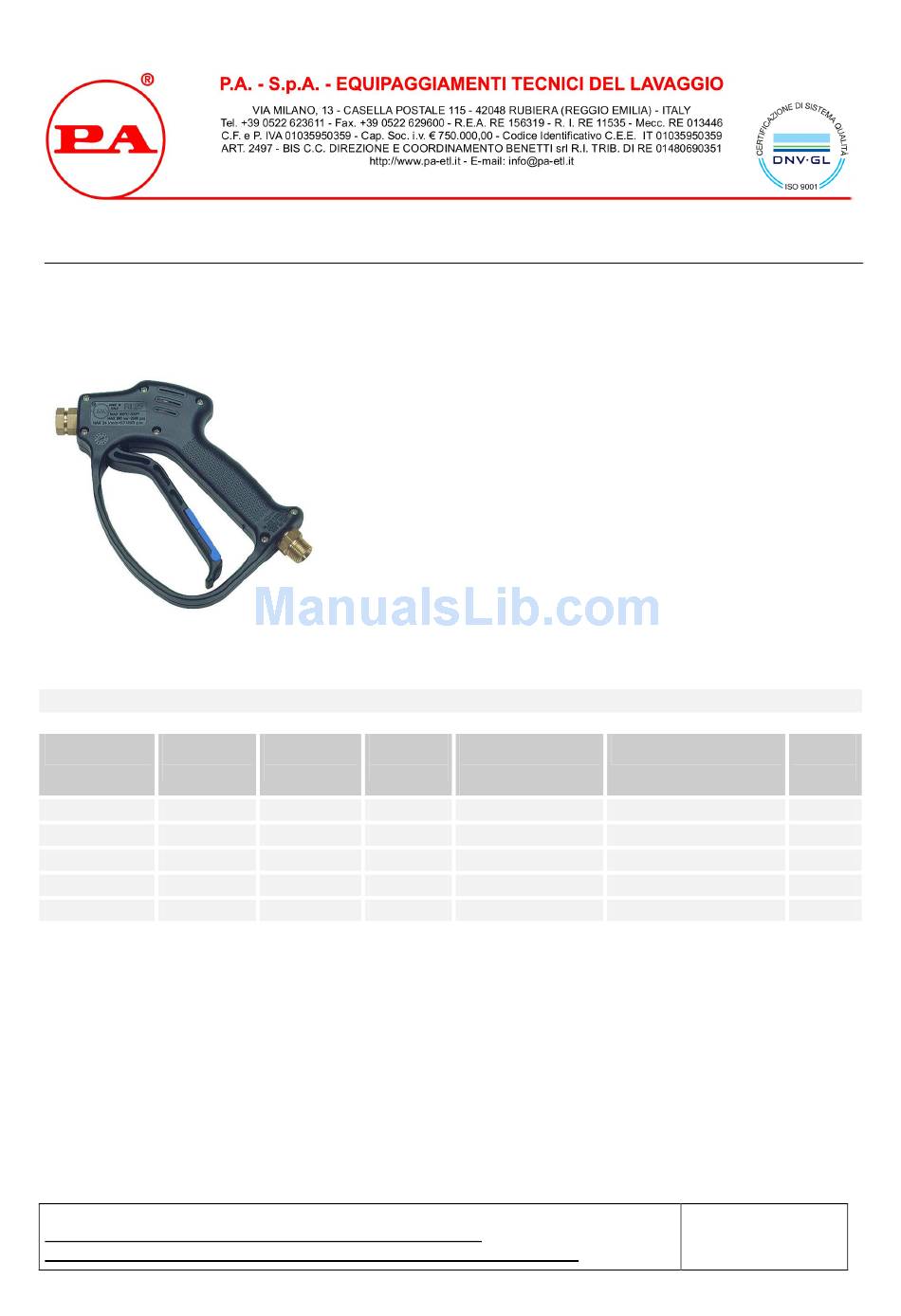

Spray gun 250 bar – 25 MPa
•
30.1790.00
•
30.1790.50
•
30.1792.00
•
30.1795.00
•
30.1794.00
- Covered by shockproof plastic semi-housings.
- Sst seat and ball.
- Internal structure in brass and Sst.
- Ergonomic construction.
- Minimum fatigue for trigger opening and use.
TECHNICAL SPECIFICATIONS
Maximum temperature 160° C (1)
PERMISSIBLE MAX FLOW
PRESSURE RATE
bar - MPa I/min
280 - 28 30
280 - 28 30
280 - 28 30
280 - 28 30
280 - 28 30
DN10
RL26 Weeping G3/8 G1/4 FF
RL26 Weeping 3/8NPT 1/4NPT FF
RL26 Weeping + SW8 G3/8 G1/4 FF
RL26 Weeping (0.6) G3/8 G1/4 FF
RL26 Weeping (0.6) + SW8 G3/8 G1/4 FF
WEEPING WITH
PRESSURE
2.8 bar – 0.3 MPa
l/min
1.1 ÷ 1.3 G3/8 G1/4 FF
1.1 ÷ 1.3 3/8NPT 1/4NPT FF
1.1 ÷ 1.3 G3/8 G1/4 FF
0.6 ÷ 0.8 3/8NPT 1/4NPT FF
0.6 ÷ 0.8 G3/8 G1/4 FF
Last Update: 07/07/10
E 138
Technical manual :
INLET WEIGHT
OUTLET
gr
380
380
400
380
400
n. 12.9138.00
1
