Dual-Post Height-Adjustable Armrests (Optional); Fixed Height Standard; Single Post Height-Adjustable Armrests (Optional) - Quickie Xplore 2 Hybrid Owner's Manual

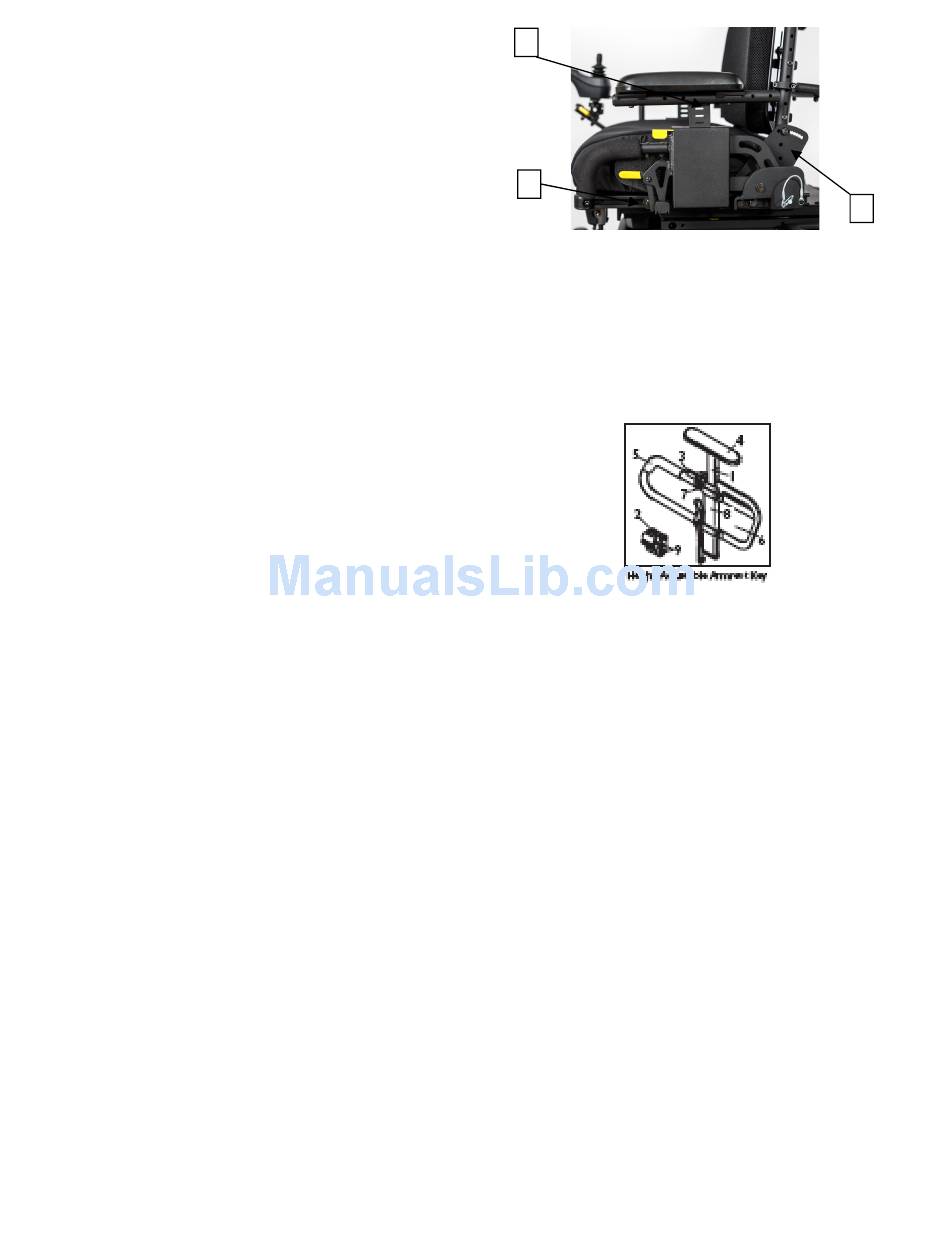

H. DUAL-POST HEIGHT-ADJUSTABLE ARMRESTS
The dual-post flip-back armrest can be used as
either a flip-back armrest or a removable armrest.
1. Installing Armrest
a. Insert front and rear posts into armrest receivers.
b. Engage rear pin (A) to secure armrest.
2. Set-up for Flip-back Operation
a. Disengage lever (B) so front post is able to come free.
b. Armrest now has the ability to be flipped back without
removal.
3. Set-up for Removal
a. Disengage levers (B) so front posts is able to move freely.
b. Remove pin (A) .
c. Armrest can now be easily removed for transferring.
4. Height-Adjustment
a. Release the upper securing lever (c).
b. Set at desired height.
c. Return securing lever to locked position.
d. Move armrest up or down to allow armrest to snap into place.
I. SINGLE POST HEIGHT-ADJUSTABLE ARMRESTS
(OPTIONAL)
1. Installation
a. Slide the outer armpost into the receiver mounted to the
wheel chair frame.
b. The armrest will automatically lock into place.
2. Height Adjustment
a. Rotate release lever to stop.
b. Slide armrest pad up or down to desired height.
c. Return lever to locked position.
d. Push arm pad until upper armpost locks firmly into place.
3. Removing Armrest
a. Rotate release lever and remove the armrest.
4. Replacing Armrest
a. Slide armrest back into receiver.
b. Return release lever to locked position against armpost.
5. Adjusting Armrest Receiver Fit To tighten or loosen the fit of the
outer armpost in the receiver:
a. Loosen the four bolts on the sides of the receiver.
b. With the armrest in the receiver, squeeze the receiver to
achieve the desired fit.
c. Tighten the four bolts.
6. Adjusting Inner Armpost Fit
a. Two set screws are installed in the outer armpost.
b. Turn the set screws in or out until the desired fit is achieved.
Quickie Xplore 2 Owner's Manual
c
a
Height-Adjustable Armrest Key
1. Inner Arm Post
2. Receiver
3. Release Lever, Locked Position
4. Armrest Pad
5. Transfer Bar
6. Side Panel
7. Tension Adjustment Set Screw
8. Outer Arm Post
9. Receiver Adjustment Bolts
Rev. A
b
16
