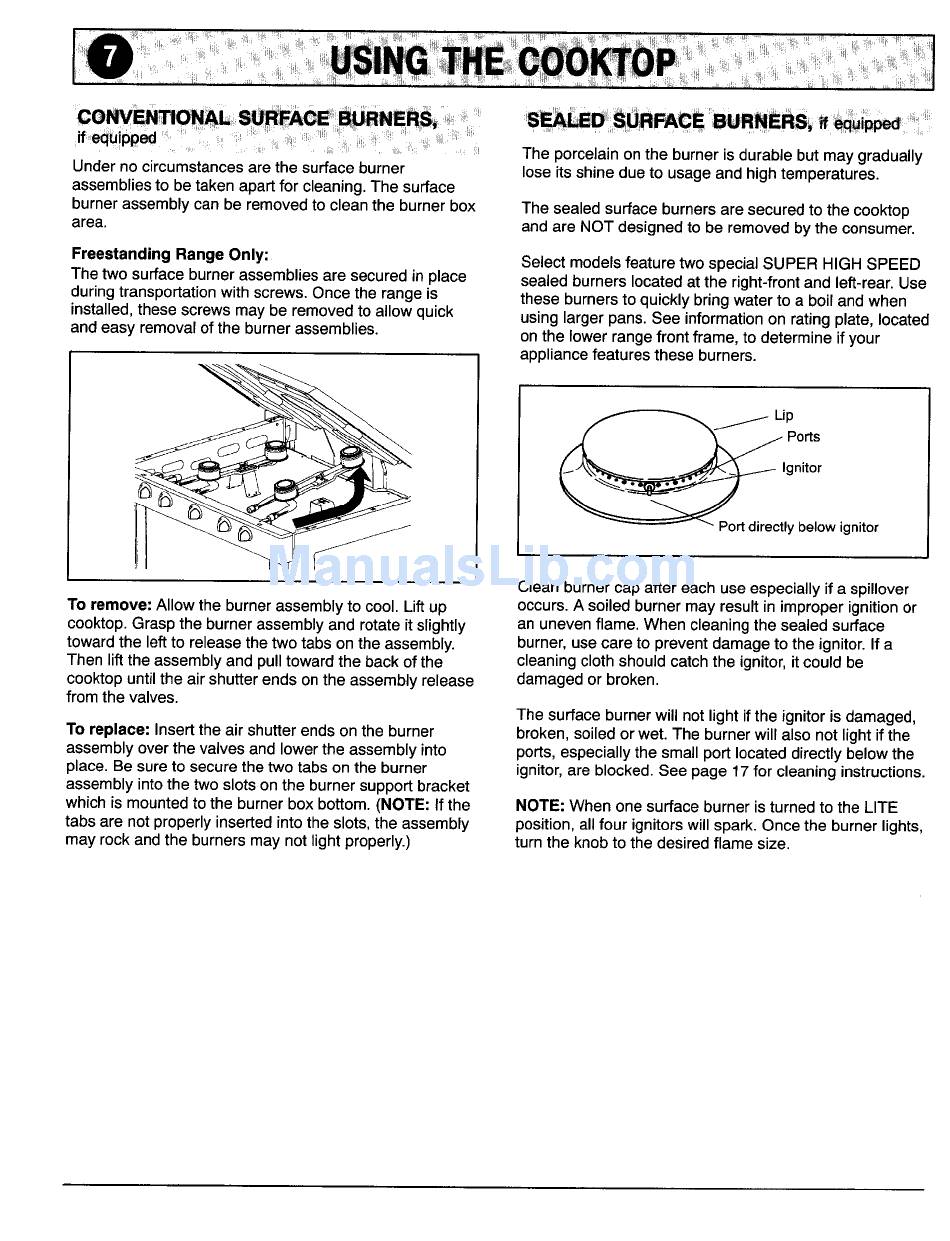

Magic Chef CGS1740ADH Owner's Manual page 8

The porcelainon the burner is durable but may gradually
Underno circumstancesare the surface burner lose its shine due to usage and high temperatures.
assembliesto be taken apart for cleaning.The surface
burner assemblycan be removed to clean the burner box The sealed surface burners are securedto the cooktop
area. and are NOT designed to be removed by the consumer.
FreestandingRange Only: Select modelsfeaturetwo special SUPER HIGH SPEED
The two surfaceburnerassembliesare securedin place sealedburnerslocatedat the right-front a nd left-rear.Use
during transportation w ithscrews.Oncethe rangeis theseburners to quicklybringwaterto a boil andwhen
installed, t hesescrewsmay be removed to allowquick usinglargerpans.See information on ratingplate,located
and easyremovalof the burnerassemblies, onthe lowerrangefrontframe, to determineifyour
appliance featurestheseburners.
Lip
-- -- _- Portdirectly belowignitor
Clean burner cap after each use especially if a spillover
To remove: Allow the burner assemblyto cool. Lift up occurs. A soiled burner may result in improper ignition or
cooktop. Graspthe burner assemblyand rotate it slightly an unevenflame. When cleaningthe sealed surface
toward the left to release the two tabs on the assembly, burner, use care to prevent damageto the ignitor.If a
Then lift the assembly and pull towardthe back of the cleaningcloth should catch the ignitor,it could be
cooktop until the air shutter ends on the assemblyrelease damaged or broken.
from the valves.
The surface burner will not light if the ignitor is damaged,
To replace: Insertthe air shutterends on the burner broken, soiled or wet. The burner will also not light if the
assembly overthe valvesand lowerthe assemblyinto ports,especially the smallportlocateddirectly belowthe
place.Be suretosecurethetwo tabsonthe burner ignitor, a re blocked.See page17 forcleaninginstructions.
assemblyintothe two slotson the burnersupportbracket
whichis mounted to the burnerboxbottom.(NOTE:If the NOTE:Whenone surface burneristurnedto the LITE
tabs are not properly insertedintothe slots, the assembly position,allfourignitors willspark.Oncetheburnerlights,
may rockandthe burnersmay notlightproperly.) turntheknobto the desiredflame size.
