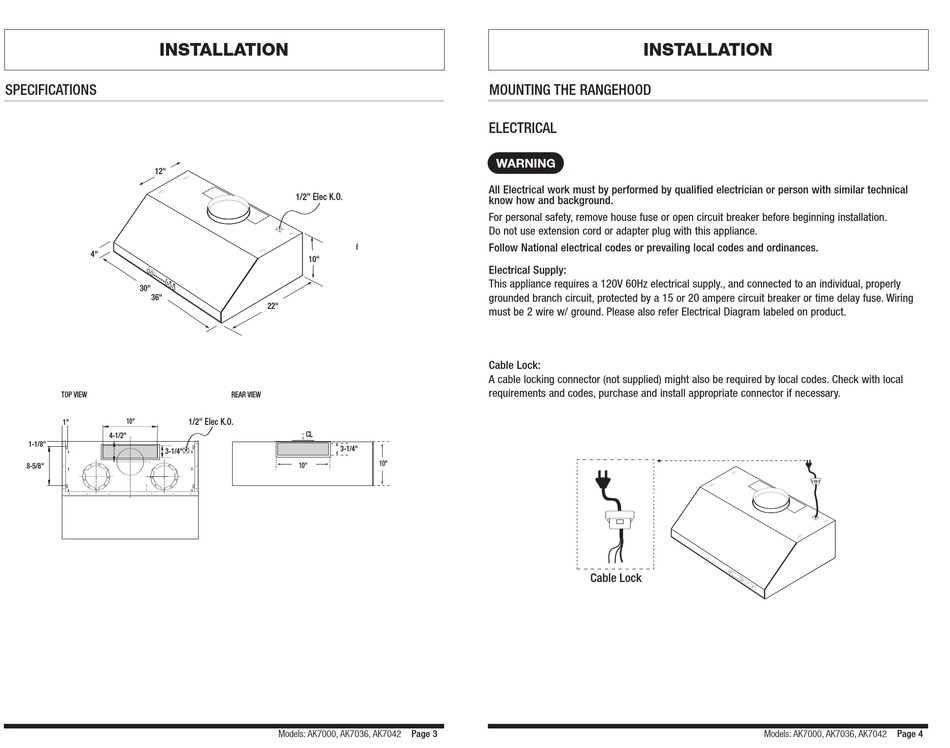

SPECIFICATIONS

MOUNTING THE RANGEHOOD

ELECTRICAL
WARNING
12"
TOP VIEW REAR VIEW
All Electrical work must by performed by qualified electrician or person with similar technical
1/2" Elec K.O.
know how and background. 1/2" Elec K.O.
1" 10"
CL
4-1/2"
For personal safety, remove house fuse or open circuit breaker before beginning installation.
1-1/8"
3-1/4"
Do not use extension cord or adapter plug with this appliance.
3-1/4"
10"
8-5/8" Follow National electrical codes or prevailing local codes and ordinances. 10"
4"
10"
Electrical Supply:
This appliance requires a 120V 60Hz electrical supply., and connected to an individual, properly
30"
grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring
36"
22"
must be 2 wire w/ ground. Please also refer Electrical Diagram labeled on product.
Cable Lock:
A cable locking connector (not supplied) might also be required by local codes. Check with local
requirements and codes, purchase and install appropriate connector if necessary.
TOP VIEW REAR VIEW
" Elec K.O.
10" 1/2" Elec K.O.
1"
CL
4-1/2"
1-1/8"
3-1/4"
3-1/4"
10"
10"
8-5/8"
10"
Cable Lock
