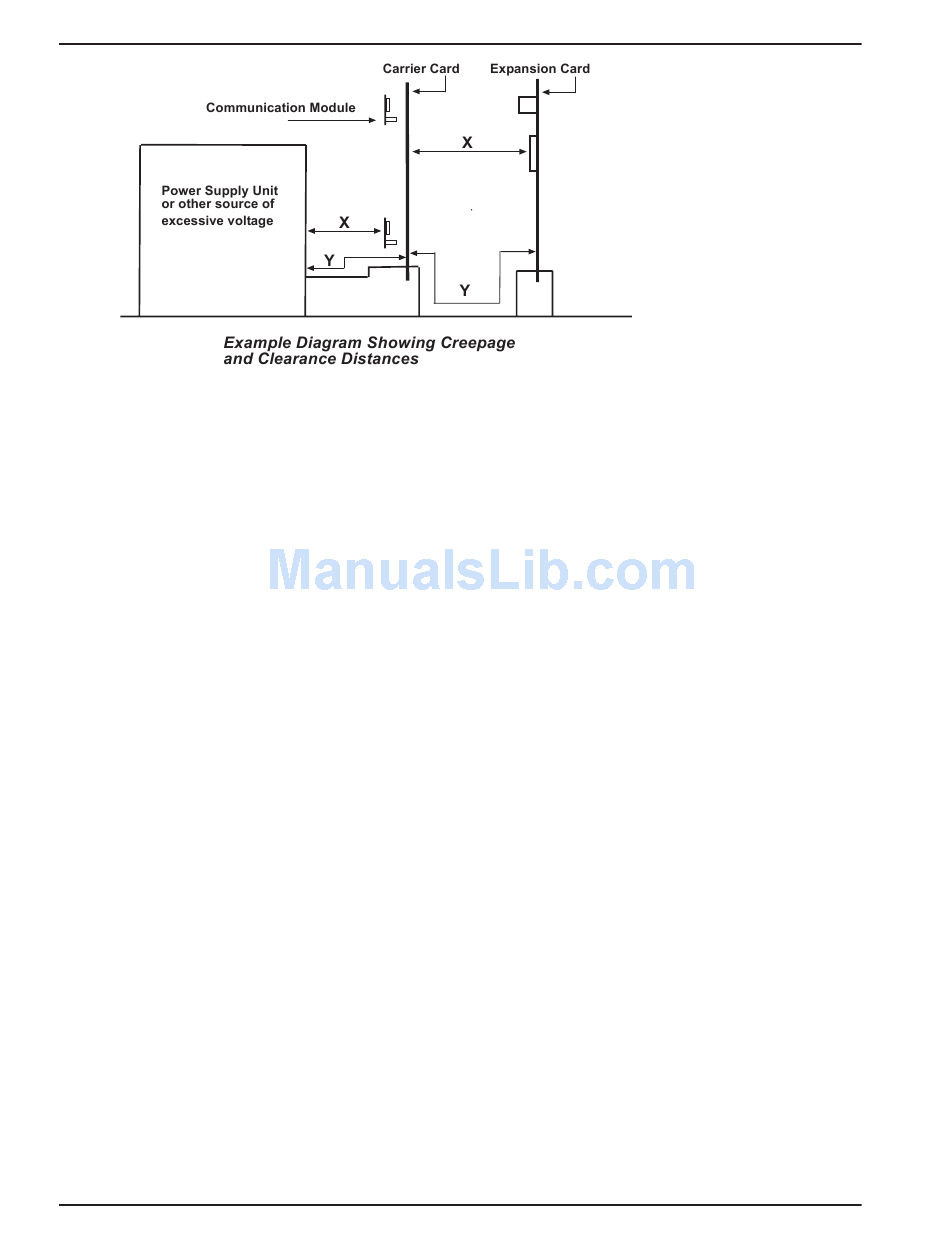

Fig. B-1. Example Diagram Showing Creepage and Clearance Distances
Except at the edge connector which plugs into the host's expansion slot, clearance distance (Xmm) and
creepage distance (Ymm) as given in the table above, must be maintained between the communication card
and any assemblies which use or generate hazardous voltage.
This apparatus has been approved for the use of the following facilities:
• Auto-calling
• Loop disconnect and MF dialing
• Phone number storage and retrieval by a predetermined code
• Operation in the absence of proceed indication
• Automatic storage of last number dialed
• Tone detection-busy
• Auto clear from the originating end
• DTR dialing
• Modem
• PBX timed break register recall

European Low Voltage Directive

When correctly installed and maintained, the modem will present no hazard to the user. When correctly
installed, the modem will be connected to the PSTN or a PW and to a Data Terminal Equipment (DTE) whose
modem connections comply with CCITT recommendation V28. The DTE connections are therefore taken to be
safe voltages (less than ± 30 volts).
Ports that are capable of connecting to other apparatus are defined as SELV. To ensure conformity with
EN41003, ensure that these ports are only connected to ports of the same type on other apparatus.
