Appendices

Appendix A — Back Panel Connector Pinouts
This appendix provides specifications for the various connectors on the back panel of the MiniArray.

VGA 15-Pin Connector

This connector provides video analog data and horizontal and vertical synchronization signals for
VGA monitors.
Pin Identification
PinDescription
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
30
Appendices
1
6
11

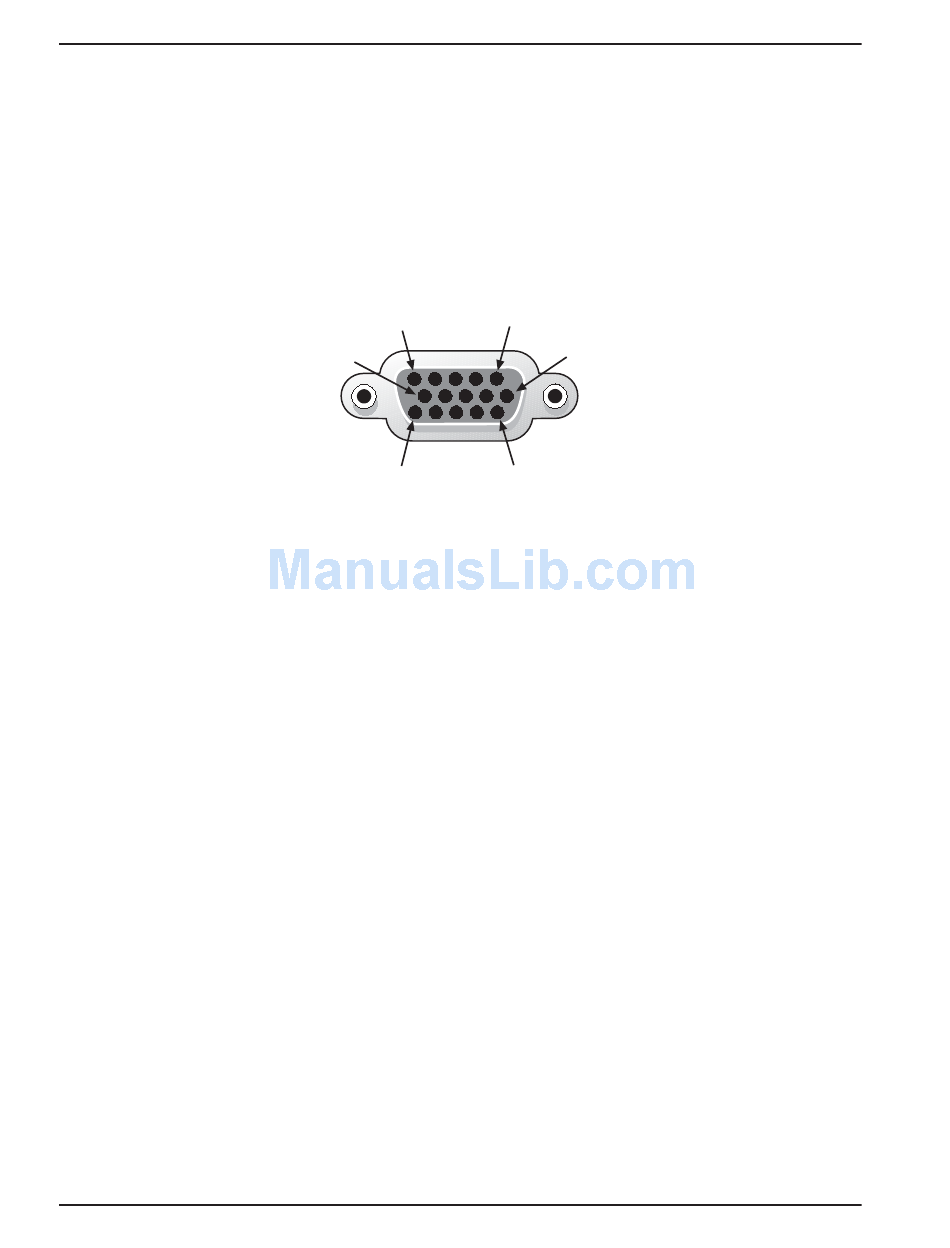

Figure A-1. 15-Pin VGA Connector
Analog Red
Analog Green
Analog Blue
VESA Monitor Status Bit 2
Digital Ground
Digital Ground
Digital Ground
Digital Ground
NC
Digital Ground
VESA Monitor Status Bit 0
VESA Monitor Status Bit 1
Horizontal Sync
Vertical Sync
NC
5
10
15
