11.11 Completion
The user control door is designed for left or right hand
hinging. If required the hinge can be moved to the other
side to that supplied, as follows:
Remove the hinge pin bracket securing screw then
remove the hinge pin retaining bracket and holding the
door, remove the hinge pin. Prise out the hinge pin
bushes and fit on to the opposite side of the door, see
diagram 11.6.
Remove the screw and nut and fit to the opposite side of
the case. After removing the hinge pin retaining bracket
refit the door and hinge pin. Refit the hinge pin retaining
bracket and fit the securing screw.
Fit the catch assembly, supplied in the loose items pack,
see diagram 11.6.
If required, fit the plastic covers to hide the bracket
securing screws.
Change the position of the "Push" label to suit the new
door opening.
Clock/timer, if fitted, remove the screws, nuts and
washers to release the cover plate, see diagram 11.6.
Stick the casing label to the right hand side of the clock/
timer.
Fit the outer case, secure with the four screws, see
diagram 11.6.
Note: Secure with the two outer screws only if there is
no clock/timer fitted.
Set the boiler and any remote heating control to the
desired settings, then close the door.
11.12 Instruct the User
Instruct and demonstrate the lighting procedure, then
advise the user of the efficient and safe operation of
the boiler.
Instruct and demonstrate the operation of any heating
system controls.
Advise the user on the use and maintenance of any scale
reducer and pass on any relevant instructional
documents.
Advise the user that to ensure the continued efficient and
safe operation of the appliance it is recommended that it
is checked and serviced at regular intervals. The
frequency of servicing will depend upon the particular
installation and usage, but in general once a year should
be enough.
Draw attention, if applicable, to the current issue of the
Gas Safety (Installation and Use) Regulations, Section
35, which imposes a duty of care on all persons who let
out any property containing a gas appliance.
It is the Law that any servicing is carried out by a
competent person.
1 1 C o m m i s s i o n i n g
HINGE PIN RETAINING
BRACKET
BRACKET
SECURING
SCREW
HINGE PIN
SCREW (2)
Advise the user of the precautions necessary to prevent
damage to the system and building in the event of the
heating system being out of use during frost and
freezing conditions.
Advise the user that the permanent mains electrical
supply must not be switched off whilst the pilot is
alight.
Reminder - Leave these instructions with the user.
27
NUT &
PLASTIC COVERS
WASHER(2)
COVER
PLATE
OUTER CASE
HINGE
SECURING
PIN
SCREWS (4)
PLASTIC
)
BUSH (2
CATCH
ASSEMBLY
SECURING
NUT
SPACER

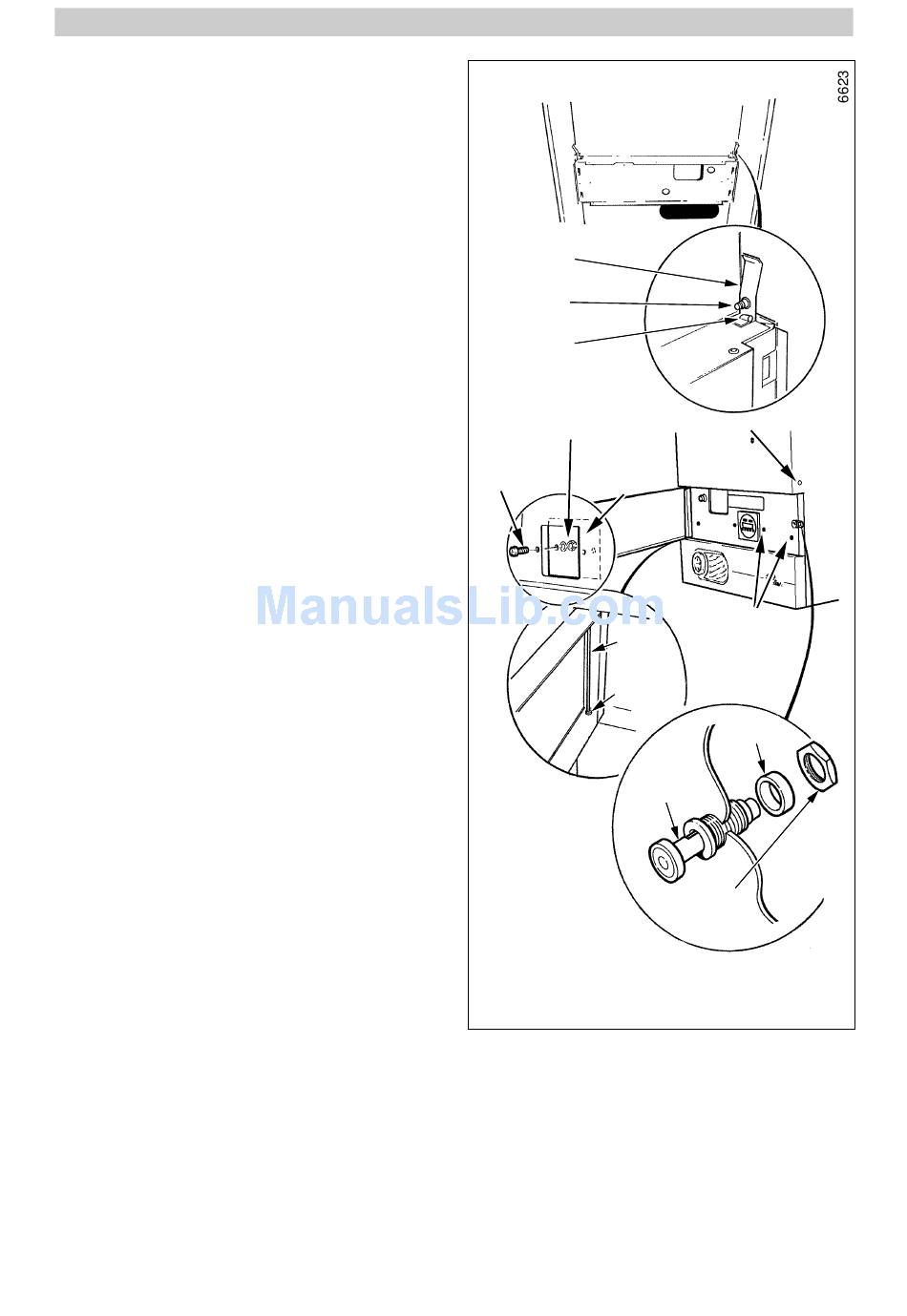

Diagram 11.6
