MultiModemBL User Guide

Appendix I - MultiModemBL Cables

These cables connect your modem to your terminal or computer's serial port.

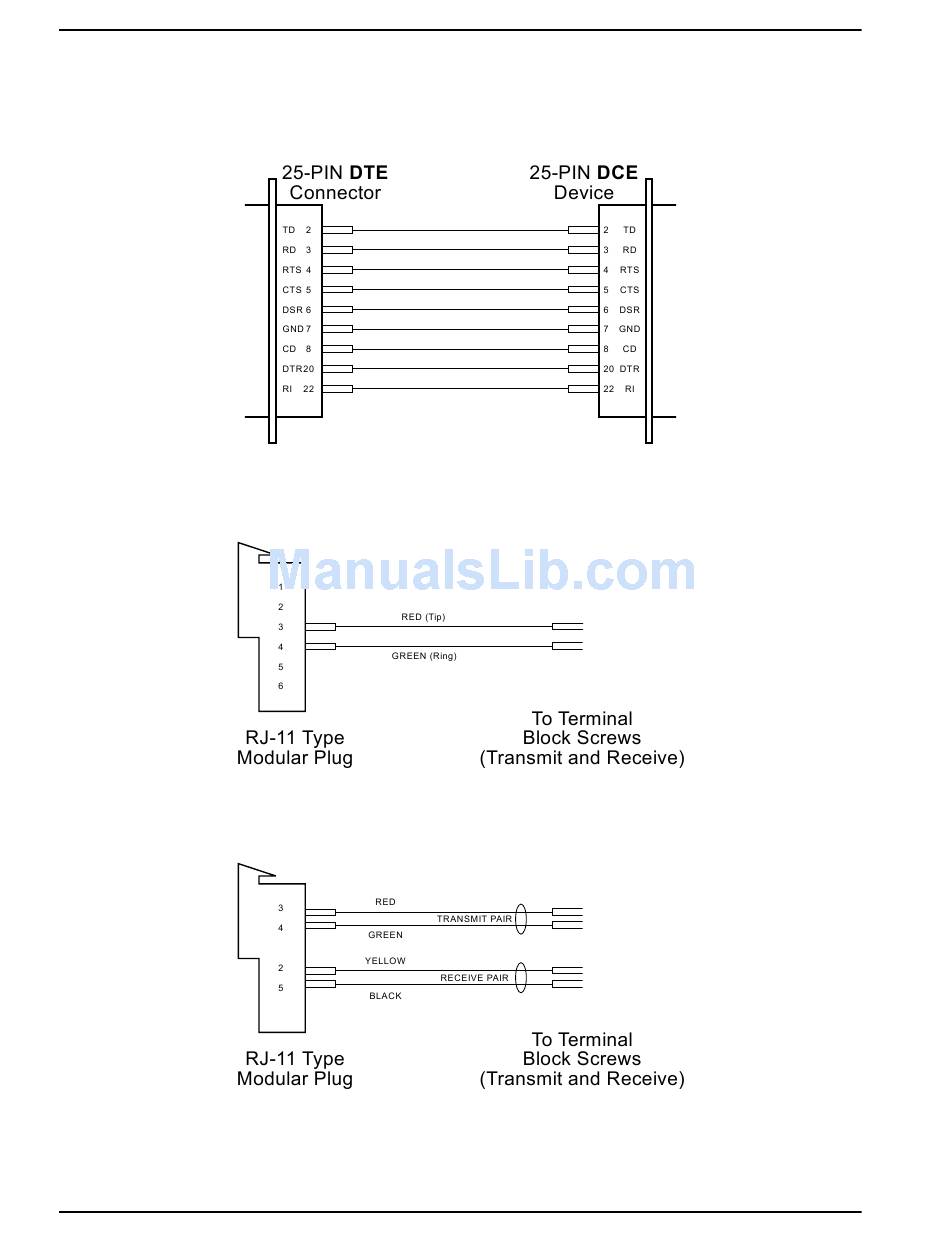

Figure I-1. RS232 Cable (IBM PC)
Figure I-2. Two Wire Leased Line Connection
Figure I-3. Four Wire Leased Line Connection
154
