MAXDATA PLATINUM 1600 IR – Quick Start Guide
Thank you for buying a MAXDATA PLATINUM
1600 IR Server. This document describes how
to set up the system, turn on the system and
complete configuration for the system.
Follow the link "User-Support und Treiber" on www.maxdata.de to access the download area and
download a more detailed guide.
Safety
Warning
Installation and service
Installation and service of this product is to be performed only by qualified service
personnel to avoid risk of injury from electrical shock or energy hazard.
Enclosure cover
In order to comply with applicable safety, emission and thermal requirements, no
covers should be removed and all bays must be fitted with drive carriers.
Battery safety
There is a danger of explosion if the battery is incorrectly replaced.
Dispose of used batteries in accordance with the manufacturer's instructions and
national regulations.
Caution
Electrostatic discharge
Observe normal electrostatic discharge (ESD) procedures during system integration
to avoid possible damage to the server board and/or other components of the server
system.
Server system power
System power on/off: The power button DOES NOT turn off the system AC power. To
remove power from server system, you must unplug the AC power cord from the wall
outlet or the chassis.
Site Selection
The system is designed to operate in a typical office environment. Choose a site that is:
• Clean, dry and free of airborne particles (other than normal room dust).
• Well-ventilated and away from sources of heat including direct sunlight and radiators.
• Away from sources of vibration or physical shock.
• Isolated from strong electromagnetic fields produced by electrical devices.
• In regions that are susceptible to electrical storms, we recommend you plug your system into a
surge suppressor and disconnect telecommunication lines to your modem during an electrical
storm.
• Provided with a properly grounded wall outlet.
• Provided with sufficient space to access the power supply cord(s) because they serve as the
product's main power disconnect.
System Overview
Technical Specification
Dimensions:
- 43.2 mm high
- 438 mm wide
- 704.8 mm deep
- 21 kg max. weight
System power:
- 100–127 V at 50/60 Hz, 9.2 A max.
- 200–240 V at 50/60 Hz, 4.4 A max.
Temperature range: +10 °C to +30 °C
Regulatory Compliance
This product complies to the following requirements:
- EN 60950 – Safety
- EN 55022 – Emissions
- EN 55024 – Immunity
- EN 61000-3-2 – Harmonics
- EN 61000-3-3 – Voltage Flicker
- CE – EMC Directive 89/336/EWG
This product has a CE declaration of conformity (CENELEC Europe).
This server system is compliant to European Directive 2002/95/EC (RoHS).

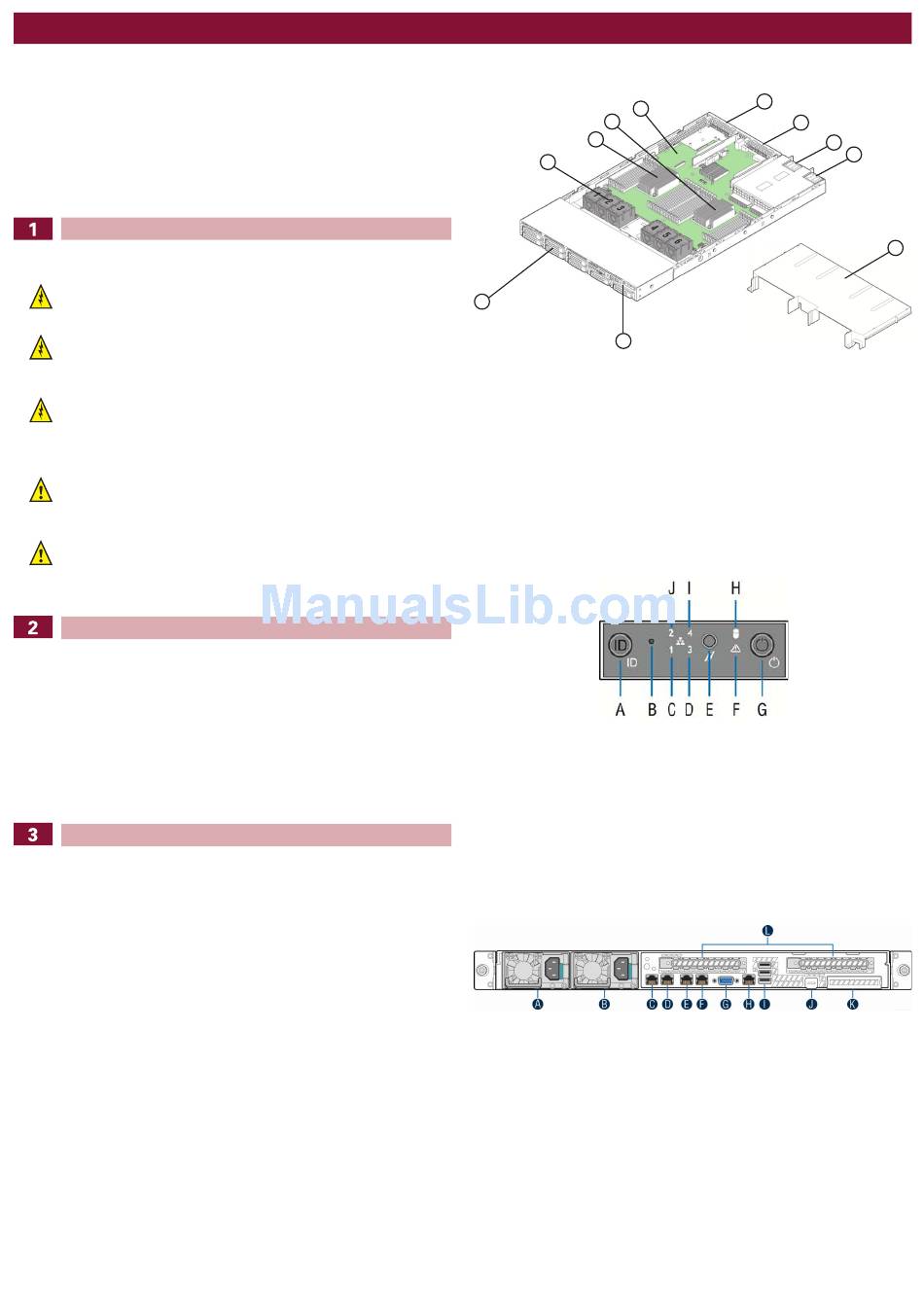

Chassis Components
G
H
I
J
A
B
A. Hot-swap hard drive bays
B. Front control panel
C. Power supply module 1
D. Power supply module 2
Riser card assembly 2
E.
F. Riser card assembly 1
Control Panel
A. ID button with ID LED
B. NMI button (recessed,
tool required for use)
C. NIC 1 activity LED
D. NIC 3 activity LED
E. Reset button
Rear of Server System
A. Power supply module 1
B. Power supply module 2
C. NIC 1
D. NIC 2
E. NIC 3
F. NIC 4
F
E
D
G. Server board
H. CPU 2
I. CPU 1
J. System fans
Air duct
K.
F. Status LED
G. Power button with
power LED
H. Hard drive activity LED
I. NIC 4 activity LED
J. NIC 2 activity LED
G. Video port
H. Serial port A (RJ-45)
I. USB ports
J. RMM 4 NIC port (optional)
K. I/O module (optional)
L. Add-in adapter slots via
riser cards 1 and 2
MAXDATA PLATINUM 1600 IR M3 – Quick Start Guide 1
