INSTALL AND ADJUST THE D-HANDLE
1. Remove the screws and bottom clamp piece that
were installed on the D-handle for shipping.
2. Place D-handle over the shaft housing and onto the
bottom clamp (Fig. 1). Place it a minimum of 6 inches
(15.24 cm) from the end of the shaft grip.
3. Start screws with a large Flat-head or T-25 Torx
screwdriver. Do not tighten until you make the handle
adjustment.
4. If it was pre-installed, loosen the screws on the
D-handle just enough to move the D-handle.
(4) Screws
Shaft Grip
Shaft
Housing
Minimum 6 inches
(15.24 cm)
Bottom Clamp

ASSEMBLY INSTRUCTIONS

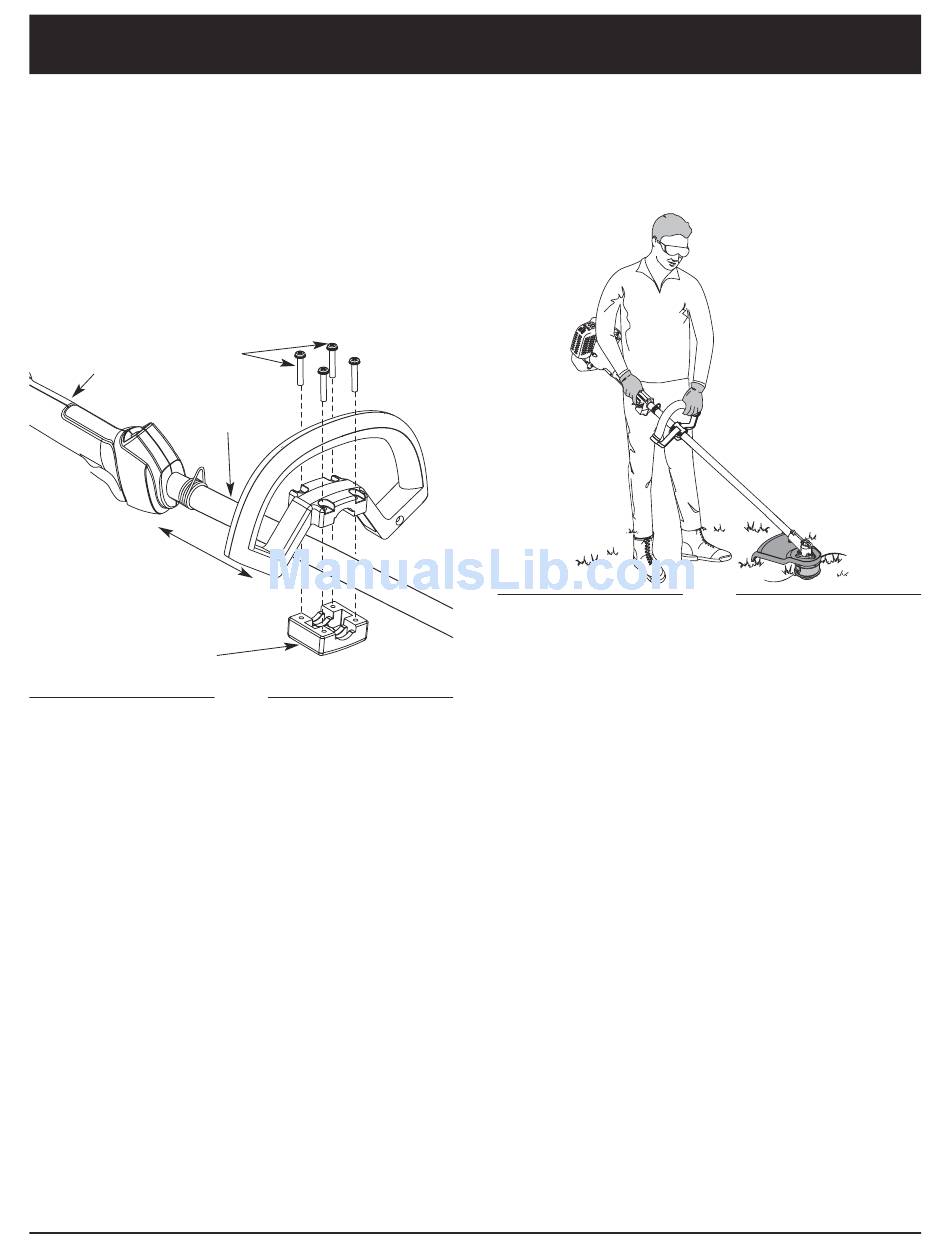

Fig. 1
5. While holding the unit in the operating position
(Fig. 2), move the D-handle to the location that
provides you the best grip.
6. Tighten the clamp screws evenly, until the D-handle
is secure.
Fig. 2
