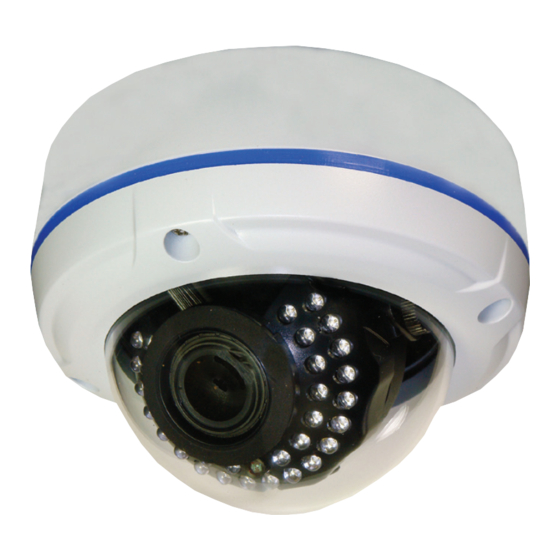

Page 1: Color Camera
Operating Manual 사 용 설 명 서 사 용 설 명 서 사 용 설 명 서 사 용 설 명 서 USER'S INSTRUCTIONS Vandal-proof Dome High Resolution DNR Day/Night Color Camera Rev.1... - Page 2 USER'S MANUAL 사 용 설 명 서 In USA and Canada, Use Class 2 Power Supply Only - 2 -...
-
Page 3: Important Safety Instructions
USER'S MANUAL 사 용 설 명 서 IMPORTANT SAFETY INSTRUCTIONS 1) Read the 2) Keep these instruct 3) Heed 4) Follow all instructions. 5) Do not use this apparatus nea 6) Clean only with dry c 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
USER'S MANUAL 사 용 설 명 서 Contents Camera Features ........... Installing &... -
Page 5: Camera Features
USER'S MANUAL 사 용 설 명 서 Camera Features 700TV Lines ● The combination of a 960H CCD image sensor and New DSP provides an excellent resolution of 700TV Lines. 3D-DNR ● Smart 3DNR prevents the image blurring of moving object and activates only if moving objects are appearing on the scene. -
Page 6: Installing & Adjusting
사 용 설 명 서 USER'S MANUAL Installing & Components 1. Installation - Affix the mounting template to the mounting surface. - Using the L-wrench provied, remove 4 screws and separate the dome cover. - Drill holes in the celling by matching the holes in the case bed. Fix the case bed on the ceilling by using tapping screws. -
Page 7: Dimension & Specification
USER'S MANUAL 사 용 설 명 서 Dimension & Specification 1. Dimension & Connection Dimension Connection 2. Specification Sensor type 1/3" Sony 960H CCD Effective pixels 976 (H) X 494 (V) approx. 480K pixels (NTSC) 976 (H) X 582 (V) approx. 570K pixels (PAL) Total pixels 1020 (H) X 508 (V) approx. -
Page 8: Osd Control Button
사 용 설 명 서 USER'S MANUAL OSD Control Button 1. The OSD Button is a mini-joy stick control switch used to navigate the OSD Menu. TEMP. SENSOR ▲ Up switch : Moves the cursor upwards. Use this button to select an item or adjust the parameters. ▼... -
Page 9: On Screen Dispaly (Osd) Menu
사 용 설 명 서 USER'S MANUAL On Screen Display (OSD) Menu On Screen Display (OSD) Menu Camera functions and settings can be adjusted or changed by activating the OSD menu. When the OSD menu is activated text will display on the monitor. The user can then move the cursor to the desired function to change the setting. -
Page 10: Menu Set Up
사 용 설 명 서 USER'S MANUAL Menu Set Up Menu setting can be selected by the OSD Control switch inside the camera. 1. Press the set switch. * The Set Up menu will be displayed on the monitor. SETUP LENS DCAUTO EXPOSURE... -
Page 11: Lens
USER'S MANUAL 사 용 설 명 서 3. Change menu settings using the Left or Right switch. * Available values or Status are displayed by moving the switch Left or Right. Continue to press the switch until desired value / status is displayed. 4. -
Page 12: Exposure
USER'S MANUAL 사 용 설 명 서 NOTE * When DC is selected, the brightness control range is 1~100. DC LENS BRIGHTNESS IIIIIIIIII IIIIIIIIII MODE INDOOR RETURN * When you select the mode setup, you can select INDOOR or OUTDOOR depending on the installation environment. - Page 13 사 용 설 명 서 USER'S MANUAL ◆ Electronic Shutter : DC lens default is 1/60 and the manual lens default is "Auto Shutter", but the shutter speed can be adjusted from 1/60 to 1/100,000. → DIS (Digital Image Stabilizer) : Select the DIS mode when the image appears to have slight movement due to weather or nearby vibrations.
- Page 14 USER'S MANUAL 사 용 설 명 서 ◆ BLC (Back Light Compensation) : The camera with 3D-DNR provides the intelligent light level control to overcome strong backlight conditions. → Off : Deactivated status. → BLC : Select the area of interest and then set the value of the desired amount of compensation. VALUE MIDDLE AREA...
-
Page 15: White Bal
USER'S MANUAL 사 용 설 명 서 ◆ D-WDR : This camera which is using 3D-DNR DSP provides intelligent light level control in a Wide Dynamic Range to overcome even strong backlight conditions. → Off : Deactivated status. → Indoor compensation : Used when the camera is installed indoors. →... - Page 16 USER'S MANUAL 사 용 설 명 서 Three white balance modes are available to choose from plus manual. ◆ ATW : Use this mode when the color temperature is from 1,800K to 10,500K. ◆ AWB : This mode is for interior white balance to match ambient lighting. This mode can be used when the color temperature is from 3,000K to 7,000K.
-
Page 17: Day&Night
사 용 설 명 서 USER'S MANUAL Day&Night 1. Select Day&Night on the Set Up menu screen. 2. Select the desired mode by moving the joystick left or right. SETUP LENS EXPOSURE WHITE BAL DAY&NIGHT COLOR 3DNR SPECIAL ADJUST RESET EXIT ◆... -
Page 18: 3Dnr
USER'S MANUAL 사 용 설 명 서 ◆ EXT : This external contact to ground will change the mode from color to B/W. 3DNR Using the 3D DNR feature of the DSP chip set will reduce the background video noise in low light conditions. -
Page 19: Special
USER'S MANUAL 사 용 설 명 서 Special The Special section of the Setup Menu contains seven different functions. 1.When the SETUP menu is displayed, select SPECIAL. 2. Select one of the functions by moving the cursor up or down. SETUP LENS EXPOSURE... - Page 20 USER'S MANUAL 사 용 설 명 서 NOTE * To erase a letter, move the cursor on the empty space in front of the number 0, and then letters will be erased by pressing the Set button one by one. Move the cursor on the “CLR”, press the Set button and all the letters will be erased.
- Page 21 USER'S MANUAL 사 용 설 명 서 NOTE * When using the digital zoom, SMART DZOOM and DIS cannot be used. → SMART DZOOM : This function is interlocked with Digital-Zoom to distinguish a specific object in more detail when there is a movement detected in a certain area. An extra sensitivity function is used to detect motions.
- Page 22 USER'S MANUAL 사 용 설 명 서 ◆ MOTION : This can detect the movement of a subject and you can see the moving image of the subject on the monitor when the camera detects it. In the state of Motion Detection On, a new submenu below appears when you press the Set button.
- Page 23 USER'S MANUAL 사 용 설 명 서 NOTE * When using AC power at 60Hz(NTSC), 50Hz(PAL), frequency, you can use the L/L type synchronization. * When the power is DC 12V, the SYNC menu is fixed to the 'INT' mode. ◆...
-
Page 24: Adjust
사 용 설 명 서 USER'S MANUAL Adjust This function is needed to control the brightness of the monitor. 1. When the Set UP menu is displayed, select ADJUST using the Up and Down button. 2. Select the desired mode by using Up or Down button. SETUP LENS EXPOSURE... -
Page 25: Trouble Shooting
USER'S MANUAL 사 용 설 명 서 ■ Trouble Shooting - 25 -... - Page 26 사 용 설 명 서 USER'S MANUAL...
- Page 27 USER'S MANUAL 사 용 설 명 서...
- Page 28 사 용 설 명 서...
