9-4-3. Install (first by hand-tightening, then securely with
a wrench) flare nuts and bonnets at all service
valves in the refrigeration circuit where evacuation
will take place. This process is highly important
to completely evacuate the system.
9-4-4. Check that the blue/green connector is properly
attached. (Figs.9-2 )
9-4-5. Turn the disconnect switch ON (if it has been
OFF) to open the two solenoid valves (SVA and
SVB). (Figs.9-2 )
9-4-6. With both the " Lo " and " Hi " knobs of the
manifold valve open, run the vacuum pump. The
operation time varies with the capacity of the
pump. (Run the pump at least 30 minutes.)
Evacuation is successful if the vacuum gauge
reading remains – 75 cmHg or more for at least 10
seconds after closing both the " Lo " and " Hi "
knobs of the manifold valve.
9-4-7. With the vacuum pump still running, turn both the
narrow and wide service valves all the way in to
close the valves (position -a-).
Then stop the pump.
9-4-8. After removing the vacuum hoses from the service
valves, replace the flare nuts and bonnets on the
valves. The refrigerant circuit is now ready for
charging.

9-5. Refrigerant charging

9-5-1. After evacuation is completed, charge the circuit
with the proper amount of refrigerant.
NOTE
The proper amount of refrigerant is specified on
the nameplate of the outdoor unit and in Section
"2-1. Unit Specifications" in the service manual.
9-5-2. Use a hose to connect the narrow tube service
valve to the liquid port of the charging cylinder.
(Figs.9-3and 9-4)
9-5-3. Purge air from the hose. Do this by opening the
charging cylinder valve, then slightly loosening the
connection to the narrow tube service valve. Wait
a few moments, then retighten the connection.
BLU
1 2
Terminal plate
Charging cylinder
Open
AER522QC
30
GRN
3 4 5 6 7 8 9 10 11 12
Disconnect switch
(Field supply)
Hex wrench

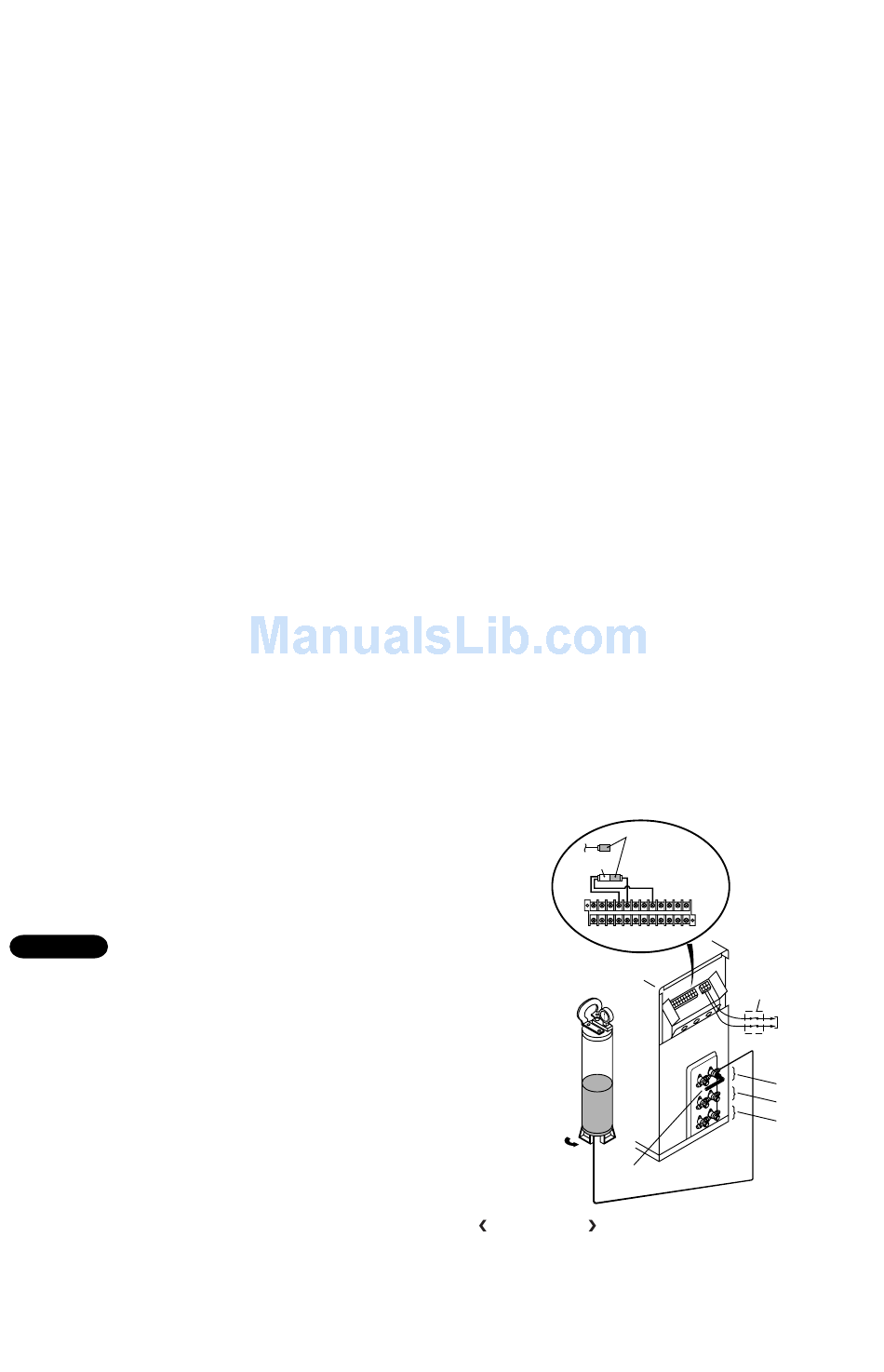

Fig.9-3
Power
Supply
Unit A
Unit B
Unit C
