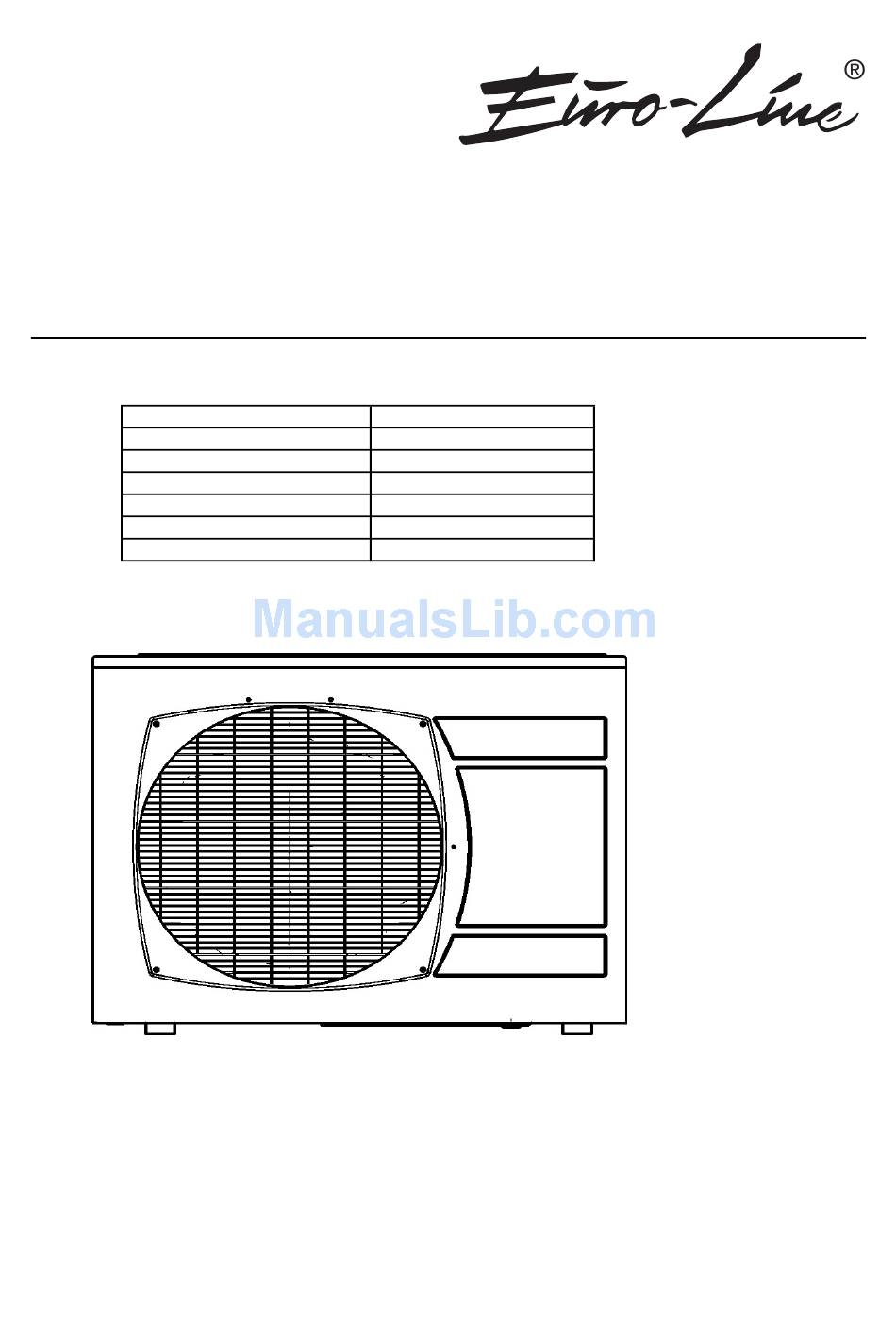

- Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: AE64AC/ACL AE64AH AE64AC3/ACL3 AE64AH3 SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. AE64AC 387031046 AE64AC3 387031047 AE64AH 387031051 AE64AH3 387031052 AE64ACL 387031059 AE64ACL3 387031060 0.8180.478.0 09/2005...
- Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 5-3 Heating Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 46°C D.B. Cooling Minimum 21°C D.B. / 15°C W.B. 10°C D.B. / -10°C D.B.(*) Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum -9°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications AE64AC/ACL 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW64AL Capacity 6,81 23220 BTU/h Air circulation (High) m³/h 2,66 Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264... - Page 6 AE64AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW64AL Capacity 6,81 7,37 23220 25130 BTU/h Air circulation (High) m³/h 2,66 Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range 10,2 Running amperes 2260...
- Page 7 AE64AC3/ACL3 380 - 415V 3N ~ 50Hz Power source 415V Voltage rating Cooling Heating Performance * AW64AL Capacity 6,81 7,37 23220 25130 BTU/h Air circulation (High) m³/h 2,66 Moisture removal (High) Liters/h Cooling Heating Electrical Rating 342 ~ 418 Available voltage range 4,10 Running amperes 2260...
-
Page 8: Major Component Specifications
2-2 Major Component Specifications Outdoor Unit: AE64AC/ACL AE64AH Compressor Rotary (Hermetic) Type NN27VBMT Compressor model 6720 Nominal capacity MEL56…..1200 Compressor oil…Amount Ω main: 0,88 Coil resistance (Ambient temp. 25°C) aux: 1,64 Internal protector Safety devices Type Operating Temp. Open °C Close °C... - Page 9 Outdoor Unit: AE64AC3/ACL3 AE64AH3 Compressor Rotary (Hermetic) Type NN27YDAMT Compressor model 6890 Nominal output MEL 56…1300 Compressor oil…Amount Ω 3,59 Coil resistance (Ambient temp. 25°C) Internal protector Safety devices Type Operating Temp. Open °C Close °C Operating amp.(Ambient temp.25°C) Fan & Fan Motor Propeller Type 1….
-
Page 10: Other Component Specifications
Positive phase: ON Operation Negative phase: OFF Power control board TYPHOON 3C Type AC 230V,50/60Hz Coil Rating Contact rating Coil resistance Ω AE64AC AE64ACL AE64AH Power control board TYPHOON 5B Type AC 230V,50/60Hz Coil Rating Contact rating Coil resistance Ω... -
Page 11: Dimensional Data
3. DIMENSIONAL DATA AE64AC/ACL Outdoor Unit: AE64AH AE64AC3/ACL3... -
Page 12: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: AE64AC/ACL AE64AC3/ACL3... - Page 13 Indoor Unit: Outdoor Unit: AE64AH AE64AH3...
-
Page 14: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts AE64AC/ACL AE64AH AE64AC3/ACL3 AE64AH3 Cooling Characteristics Heating Characteristics... -
Page 15: Cooling Capacity
5-2 Cooling Capacity AE64AC/ACL OUTDOOR UNIT: AE64AH AE64AC3/ACL3 AE64AH3 AW64AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 6,81 kW moisture removal 2,66 l/h POWER INPUT 2,26 kW max power input 2,47 kW AIR FLOW RATE 990 m³/h RATING CONDITIONS Cooling: Indoor air temperature 2AW64AL Outdoor air temperature 35°C D.B. -
Page 16: Heating Capacity
5-3 Heating Capacity 120% 100% Outdoor temperature (°C W.B.) NOTE 1- Black dot in the chart indicates the following rating condition. Indoor: 20°C D.B. Outdoor: 7°C D.B. / 6°C W.B. 2- The above chart includes the weighted deicing influence... -
Page 17: Electrical Data
OUTDOOR UNIT: AE64AC/ACL AE64AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 9,40 Power input 2,26 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at... - Page 18 OUTDOOR UNIT: AE64AC3/ACL3 AE64AH3 COOLING Complete Unit performance at 380V 3-Phase 50 Hz Rating conditions Running Amps. 4,10 Power input 2,26 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at 380V 3-Phase 50 Hz Rating conditions Running Amps.
-
Page 19: Electric Wiring Diagram
6-2 Electric Wiring Diagram AE64AC/ACL OUTDOOR UNIT: AE64AH AE64AC3/ACL3 OUTDOOR UNIT: AE64AH3... -
Page 20: System Wiring Diagram
6-3 System Wiring Diagram AE64AC/ACL AE64AH AE64AC3/ACL3 AE64AH3... - Page 21 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
