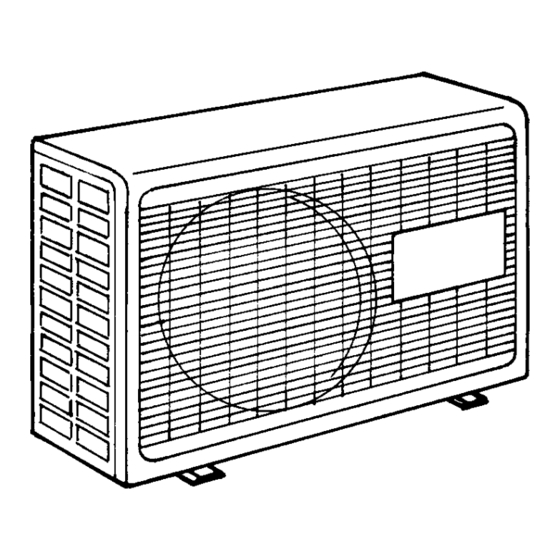

TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: AER608SCL AER609SCL AER612SCL SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. AER608SCL 387007127 AER609SCL 387007128 AER612SCL 387007129 0.8180.272.0 05/2002... - Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. -15°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications AER608SCL 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Performance * AWR608CL Capacity 1,90 6485 BTU/h Air circulation (High) m³/h 0,40 Moisture removal (High) Liters/h Cooling Electrical Rating 198 ~ 264... - Page 6 AER609SCL 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Performance * AWR609CL 2,60 Capacity BTU/h 8874 Air circulation (High) m³/h 0,80 Moisture removal (High) Liters/h Cooling Electrical Rating Available voltage range 198 ~ 264 4,40 Running amperes Power input...
- Page 7 AER612SCL 220 - 240 V ~ 50 Hz Power source 230 V Voltage rating Cooling Performance * AWR612CL 3,40 Capacity BTU/h 11604 Air circulation (High) m³/h 1,50 Moisture removal (High) Liters/h Cooling Electrical Rating Available voltage range 198 ~ 264 6,30 Running amperes 1380...
-
Page 8: Major Component Specifications
2-2 Major Component Specifications Outdoor Unit: AER608SCL Controller PCB POW-CL128E Part No. 250 V 3,15 A Control circuit fuse Compressor Rotary (Hermetic) Type 802 060 35B C-1RN60H5C Compressor model Nominal output FV68S…350 Compressor oil…Amount Ω C-R: 4,66 Coil resistance (Ambient temp. 25°C) - Page 9 Outdoor Unit: AER609SCL Controller PCB POW-CL128E Part No. Control circuit fuse 250 V 3,15 A Compressor Rotary (Hermetic) Type 802 282 45G C-RN80H5A Compressor model Nominal output FV68S…470 Compressor oil…Amount Ω C-R: 3,07 Coil resistance (Ambient temp. 25°C) C-S: 7,97 External (OLR A) External (OLR T) Overload relay...
- Page 10 Outdoor Unit: AER612SCL Controller PCB POW-CL128E Part No. Control circuit fuse 250 V 3,15 A Compressor Rotary (Hermetic) Type 802 356 45B C-RN110H5B Compressor model 1100 Nominal output FV68S…520 Compressor oil…Amount Ω C-R: 1,962 Coil resistance (Ambient temp. 25°C) C-S: 5,38 External (OLR A) External (OLR T) Overload relay...
-
Page 11: Other Component Specifications
2-3 Other Component Specifications Outdoor Unit: AER608SCL AER609SCL AER612SCL Transformer ATR-J105 Type 230 V ~ 50/60 Hz Rating Primary 19 V 0,526 A Secondary 10 VA Capacity Ω Primary (WHT-WHT): 205 ± 10% Coil resistance (at 21°C) Secondary (BRN-BRN): 2,0 ± 10% Thermal cut-off temp. -
Page 12: Dimensional Data
3. DIMENSIONAL DATA 4 – ø12 holes Air intake Wide tube service valve ø9.52 (3/8") 7000/9000 BTU/h ø12.7 (1/2") 12000 BTU/h Narrow tube service valve Air discharge ø6.35 (1/4") Unit : mm... -
Page 13: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: AER608SCL AER609SCL Indoor Unit Outdoor Unit Wide tube service Compressor Accumulator Wide tube valve Muffler O.D. ø9.52 mm (3/8 ") Narrow tube service Narrow tube valve Capillary tube O.D. ø6.35 mm (1/4") -
Page 14: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts AER608SCL Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) 0,90 Indoor inlet air D.B. (°C) 0,80 0,70 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) - Page 15 AER609SCL Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) 0,90 Indoor inlet air D.B. (°C) 0,80 0,70 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Notes: Points of Rating condition Data referred to indoor unit AWR609CL...
- Page 16 AER612SCL Cooling Characteristics Indoor inlet air D.B. (°C) Outdoor inlet air D.B. temp. (°C) 0,90 Indoor inlet air D.B. (°C) 0,80 0,70 0,60 0,50 0,40 0,30 0,20 0,10 0,00 Outdoor inlet air D.B. (°C) Notes: Points of Rating condition Data referred to indoor unit AWR612CL...
-
Page 17: Cooling Capacity
5-2 Cooling Capacity AER608SCL OUTDOOR UNIT: 220 - 240 V ~ 50 Hz RATING CAPACITY 1,90 kW moisture removal 0,4 l/h COMP. POWER INPUT 0,586 kW max comp input 0,666 kW AIR FLOW RATE m³/h CONDENSER EVAPORATOR ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B. - Page 18 AER609SCL OUTDOOR UNIT: 220 - 240 V ~ 50 Hz RATING CAPACITY 2,60 kW moisture removal 0,8 l/h COMP. POWER INPUT 0,89 kW max comp input 1,02 kW AIR FLOW RATE m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
- Page 19 AER612SCL OUTDOOR UNIT: 220 - 240 V ~ 50 Hz RATING CAPACITY 3,40 kW moisture removal 1,5 l/h COMP. POWER INPUT 1,271 kW max comp input 1,491 kW AIR FLOW RATE m³/h EVAPORATOR CONDENSER ENT.TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B.
-
Page 20: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: AER608SCL Outdoor unit Indoor Unit Complete Unit Fan Motor Fan Motor Compressor 230 V 1-Phase 50 Hz Performance at Rating conditions Running Amps. 0,110 0,316 2,774 3,200 Power input 0,025 0,069 0,586... -
Page 21: Electric Wiring Diagram
6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... - Page 22 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
