Argoclima AER522QC Technical Data & Service Manual page 15

Wide tube
O.D.
ø9.52mm
Indoor Unit A
(3/8 ")
(AWR509CL)
Indoor Unit B
Narrow tube
(AWR509CL)
O.D.
ø6.35mm
(1/4 ")

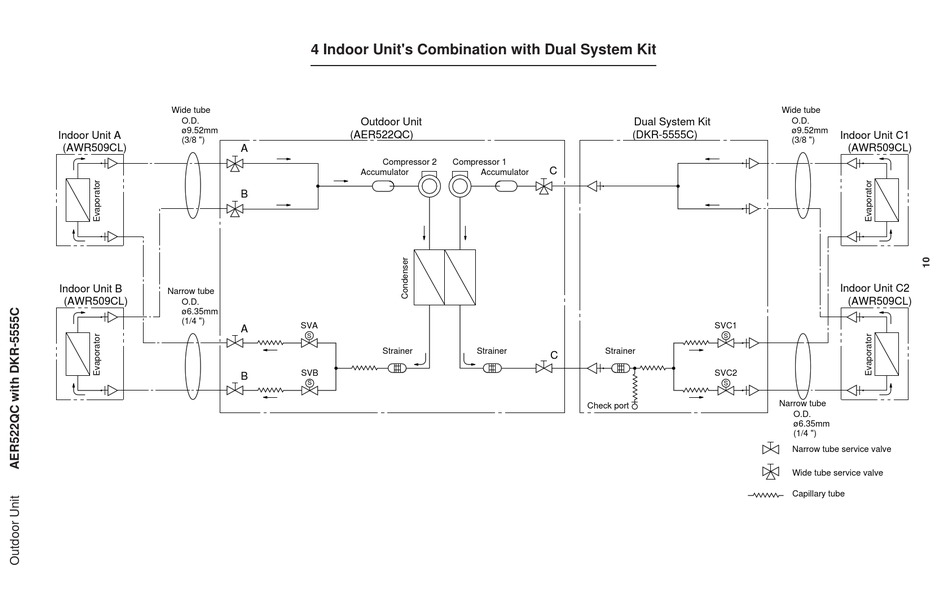

4 Indoor Unit's Combination with Dual Syatem Kit
4 Indoor Unit's Combination with Dual System Kit
Outdoor Unit
(AER522QC)
A
Compressor 2
Accumulator
B
SVA
A
S
Strainer
SVB
B
S
SAP-MC2247G5
ATK-P244G5
Compressor 1
C
Accumulator
Strainer Strainer
C
Check port
Wide tube
Dual System Kit O.D.
ø9.52mm
(DKR-5555C)
(3/8 ")
SVC1
S
SVC2
S
Narrow tube
O.D.
ø6.35mm
(1/4 ")
Narrow tube service valve
Wide tube service valve
Capillary tube
Indoor Unit C1
(AWR509CL)
Indoor Unit C2
(AWR509CL)
