Argoclima AER522QC Technical Data & Service Manual page 13

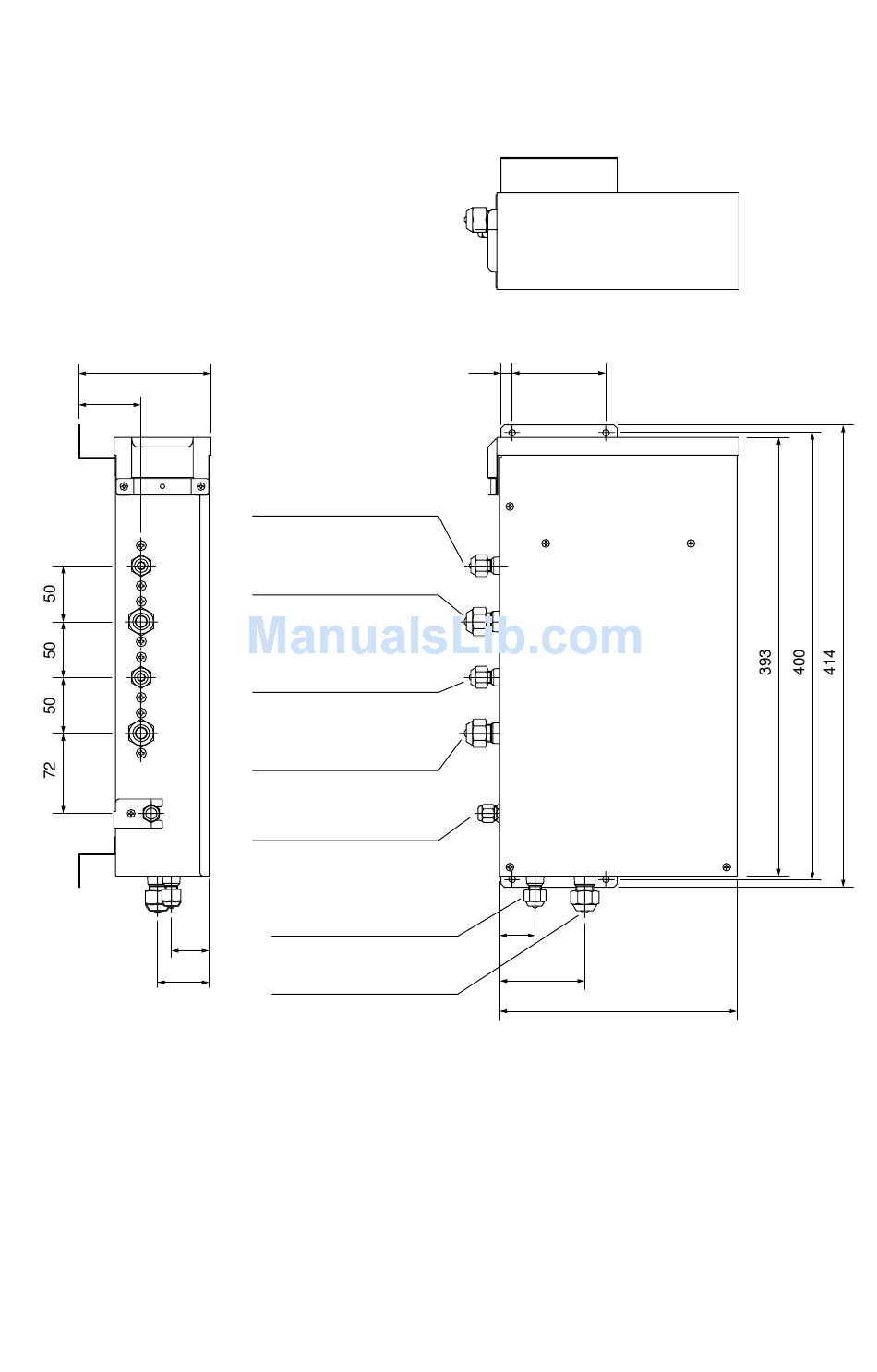

Dual System Kit DKR-5555C
118
56
Narrow tube service valve
Unit C1 : ø6.35 (1/4")
Wide tube service valve
Unit C1 : ø9.52 (3/8")
Narrow tube service valve
Unit C2 : ø6.35 (1/4")
Wide tube service valve
Unit C2 : ø9.52 (3/8")
Charge port
ø6.35 (1/4")
Narrow tube service valve
From Unit C : ø6.35 (1/4")
34
Wide tube service valve
46
From Unit C : ø9.52 (3/8")
10 84
32
76.5
8
213
Unit : mm
