Install Main Cockpit - Sapac Viper Jet MKII Composite Assembly Manual

Install Main Cockpit

Required Parts
o o o o
Fuselage [F]
o o o o
Cockpit & Canopy [C]
Required Tools and Adhesives
® ® ® ® Scissors
® ® ® ® CA Adhesive
} } } }

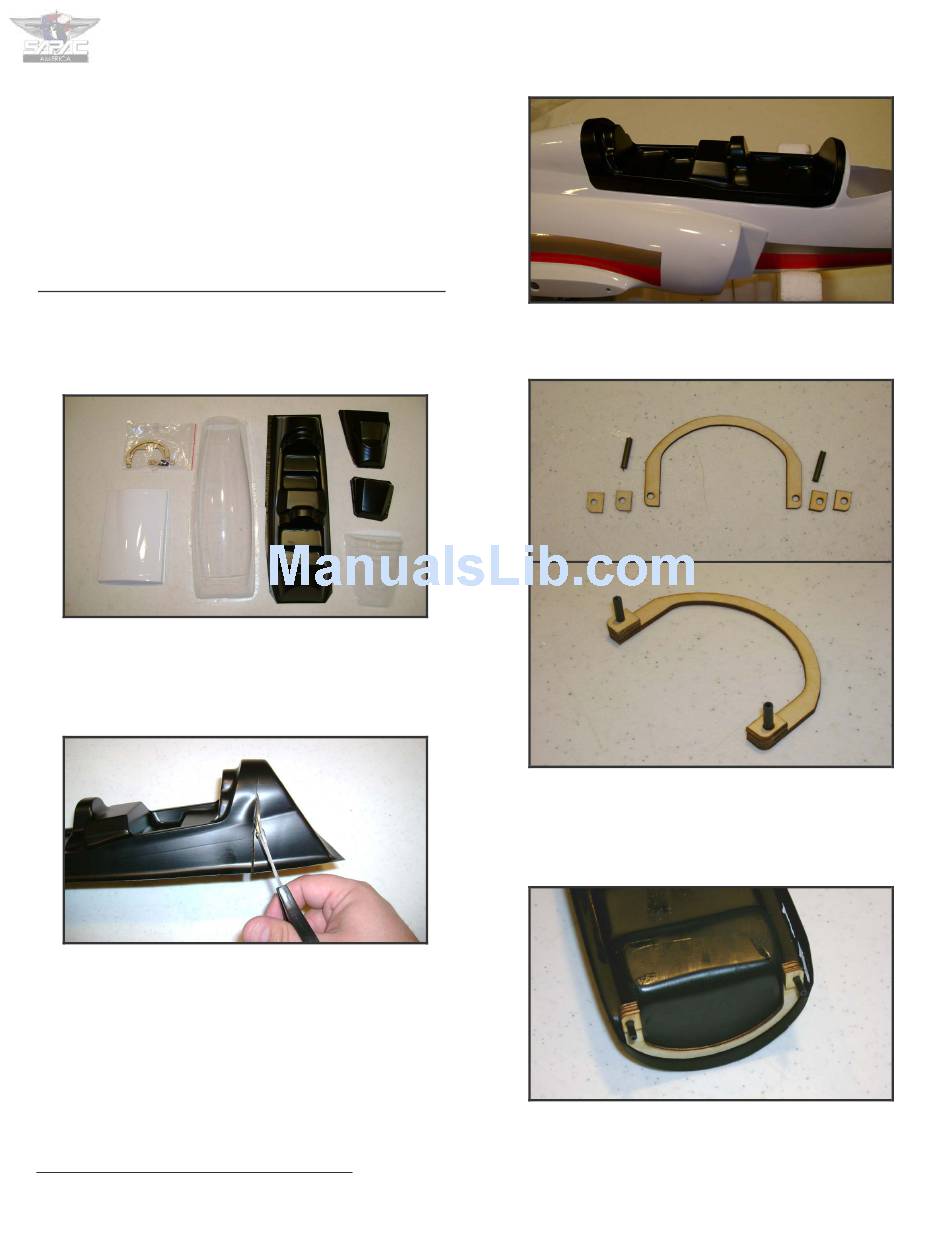

The following image shows the components
comprising the cockpits and the canopies of the
Note: the fan access hatch cover
Viper Jet.
shown in this image isn't used in these steps
Cockpit and canopy components
} } } }
Trim the cockpit to the panel lines supplied.
Note that the panel lines are more visible on the
inside of the cockpit. Trim carefully just to the
inside of the panel lines.
Trim the cockpit to the panel lines
} } } }
Lay the cockpit on the fuselage and make any
adjustments to the cockpit until you get a good
fit.
Viper Jet MKII Composite
Dry fit the cockpit and make any adjustments
} } } }
Assemble the front pin components using CA
adhesive as shown in the image below.
.
Cockpit front pin assembly
} } } }
Bond the front pin assembly to the front of the
canopy using CA adhesive. Ensure the assembly
is bonded straight and aligned with the top of
the cockpit.
Bond the front pin assembly to the cockpit
§ Fins, Cockpit, Canopy and Decals
45
