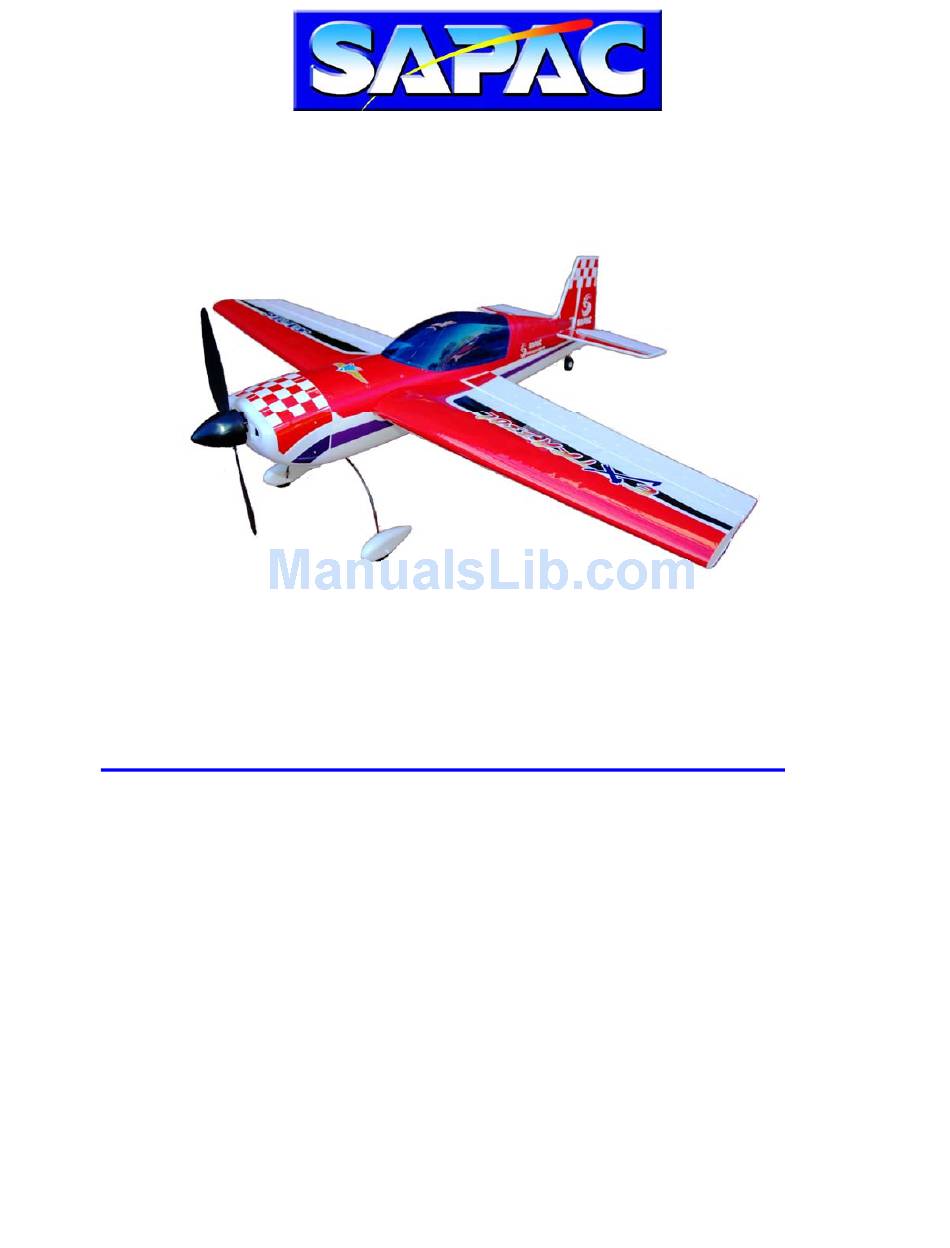

EXTRA 330L
SCALE RADIO CONTROLLED ELECTRIC POWERED
GEARED BRUSHLESS - READY TO FLY
INJECTED FOAM "EXTREME 3D" AEROBATIC PLANE
OPERATION AND ASSEMBLY INSTRUCTIONS
Includes Full Function 6 Ch. FM R/C System on Australian Approved 36Mhz.
With "C TICK" approval
12 Volt DC Balance Charger and Approved 12 Volt. Power Supply.
Complete with all hardware, except 8 x AA batteries for the transmitter.
Simple to assemble, factory painted Injection Moulded Foam.
Replacement Parts Available.
This model is not a toy.
Please read carefully and follow instructions
to ensure correct assembly of this model aircraft.
1
Advertisement
Table of Contents
Related Manuals for Sapac EXTRA 330L
Summary of Contents for Sapac EXTRA 330L
-
Page 1: Overview
EXTRA 330L SCALE RADIO CONTROLLED ELECTRIC POWERED GEARED BRUSHLESS - READY TO FLY INJECTED FOAM “EXTREME 3D” AEROBATIC PLANE OPERATION AND ASSEMBLY INSTRUCTIONS Includes Full Function 6 Ch. FM R/C System on Australian Approved 36Mhz. With “C TICK” approval 12 Volt DC Balance Charger and Approved 12 Volt. Power Supply. -
Page 2: Table Of Contents
INTRODUCTION The EXTRA 330L is a Scale Electric “EXTREME 3D” aerobatic ready to fly kit, which was developed by the SAPAC company to represent the full sized Extra’s as flown by many pilots in the Red Bull air races and aerobatic teams around the world. -
Page 3: Main Parts
The Extra 330L is suited to intermediate and advanced pilots, with outstanding stability in both high and low speed flying. Its light wing loading and good power to weight ratio, makes for a stable glide and will easily perform loops, inverted flight, rolls and other aerobatic tricks. -
Page 4: Limitation Of Flying Area
as the motor revving up! This is not a malfunction of the system, but a standard behaviour for all radio controlled models. Before turning on your transmitter, make sure no other people are flying other aircraft on the same frequency you are using. -
Page 5: Setting Up Of Transmitter
4. Take out the stabilizer and remove the protective covering off the double sided adhesive tape that is fitted to the underside of the stabilizer. Line the stabilizer up and fit into place, making sure to push it down firmly to assure good adhesion of the tape. 5. - Page 6 Mode 1 – The left stick - 2, moved forward and back, gives down and up elevator, forward for dive and back for climb; moved left and right – 4 it gives left and right rudder. The right stick - 3, moved forward and back gives high and low throttle;...
-
Page 7: Correct Use Of Charger
RANGE CHECKING BEFORE FLIGHT: The range of this radio set is about 300 to 400 metres. Before your first flight, it is a very good idea to check whether you will have the maximum range possible. This is achieved by getting a helper to hold the plane while you walk away from the plane while the set and plane both turned on and the aerial on the... -
Page 8: Before Flying The Model
polarity is wrong – the RED charger light will not illuminate – reverse the connection to rectify. Plug the adapter into the charger for charging. The charger may also be powered from a 12 Vlt. DC battery – like a car battery, to enable charging away from the home. -
Page 9: Tips From The Pros
– like duct tape and packing tape – is also very effective in repairing broken parts. If the part is not repairable, then most parts are available separately. Warranty:- The SAPAC models have a 30 day warranty against faulty manufacture. This does not cover wear and tear from use or accidental damage. A repair and spare parts service is available. - Page 10 Spare Parts List for EXTRA330L Part No Description 23816 EX SPINNER - EXTRA 300 23808 EX FUSE & CANOPY SET - NO COWL 23809 EX MAIN WING & DECAL & MOUNTS 23810 EX FIN SET - RUDDER HORN DECAL 23811 EX TAILPLANE SET - HORNS+DECAL 23812 EX LANDING GEAR - MAINS+SPATS...
