§ Wing Control Surfaces
Prepare Servo Slots and Servo
Covers
Required Parts
o o o o
Wing [W]
o o o o
Servo Covers (4) [W]
Required Tools and Adhesives
® ® ® ®
Hobby Knife
® ® ® ®
Thin CA Adhesive
® ® ® ® Hand Drill & Drill Bits
} } } }

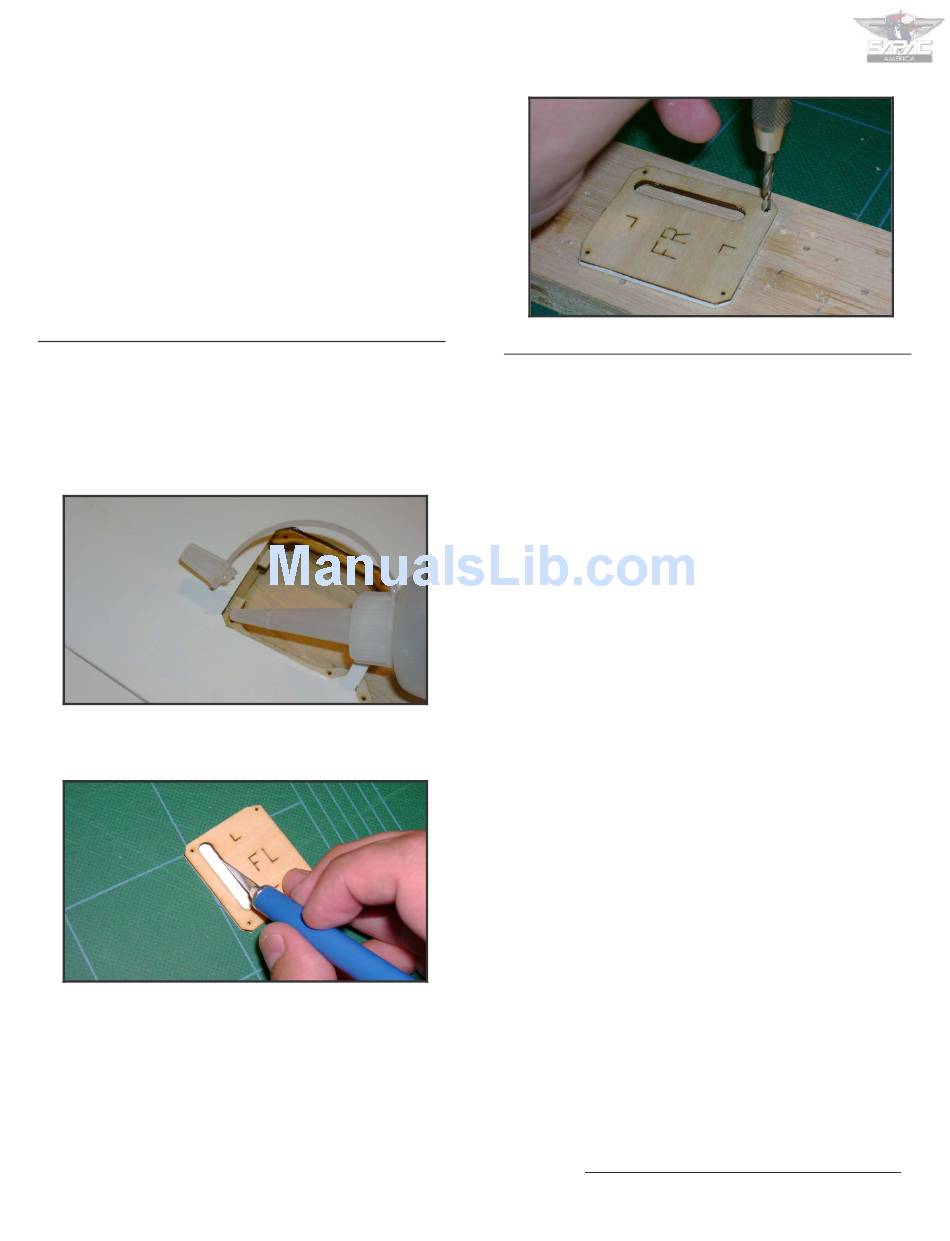

Locate the servo covers taped to the wings in
their corresponding servo mount openings.
} } } }
Reinforce the cover mounting holes in the wing
with thin CA adhesive. This will add strength to
the plywood and provide the cover screws a
stronger attachment point.
Reinforce screw holes with CA adhesive
} } } }
Using a sharp hobby knife, trim the covering
from the servo arm slots in the servo covers
Remove covering from servo arm slots
} } } }
Using a hand drill with a bit slightly larger in
diameter than the mounting screws, drill holes
in the corners of all the servo covers (marked by
a laser dot).
6
Drill mounting screw clearance holes
