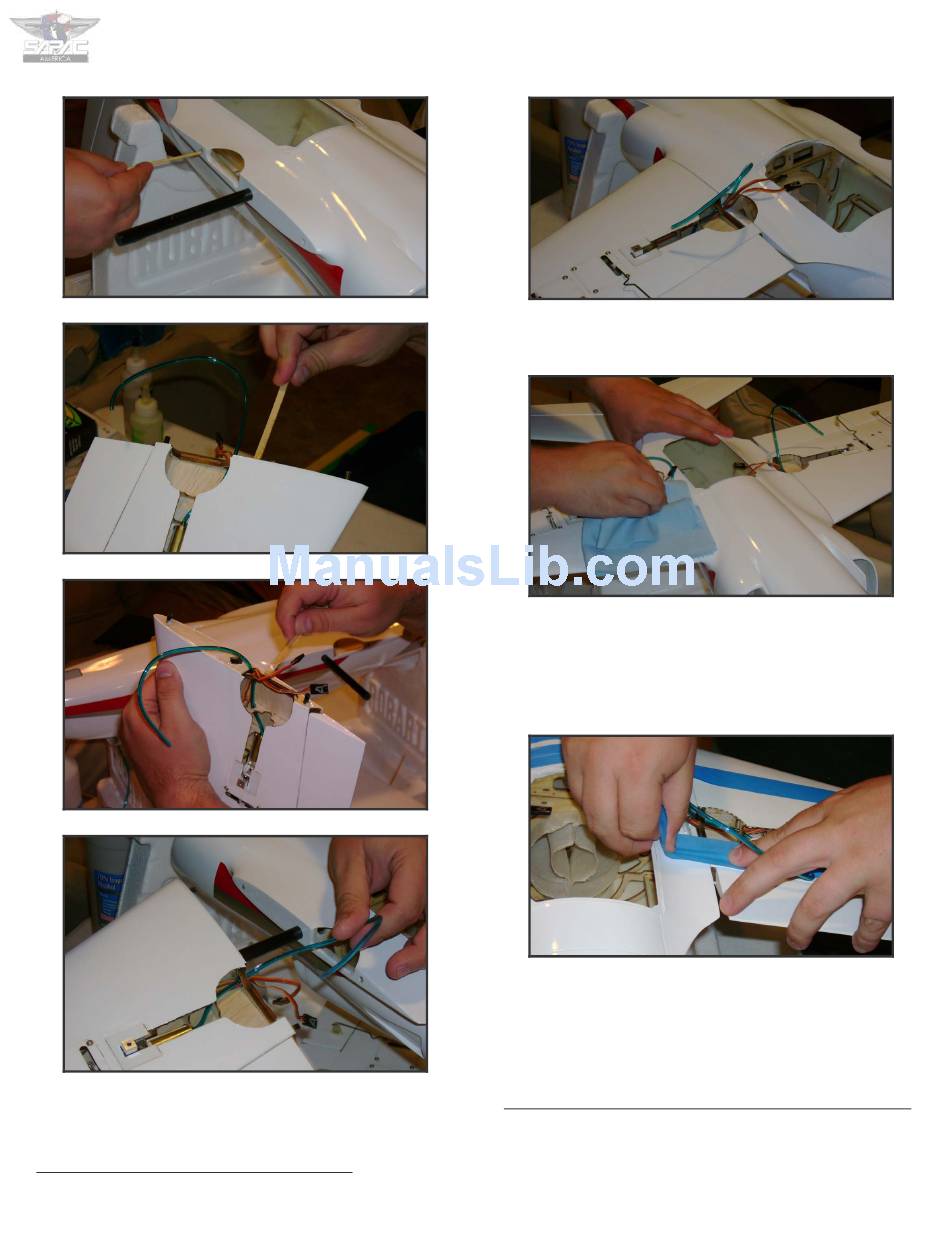

Apply adhesive inside the locating pin holes
Apply adhesive inside the wing tube cavity
Apply adhesive to the exposed wood of the wing
Slide the wing into position ensuring the servo
wires and air lines are routed properly
Viper Jet MKII Composite
§ Wing and Elevator Attachment
Wing in its final position
} } } }
Clean any excess adhesive using a rag with
rubbing alcohol.
Clean any excess adhesive using a rag with rubbing
alcohol
} } } }
Ensure the wings are parallel and level in all
directions. Tape the wings in place while the
adhesive dries ensuring the alignment is still
true after taping.
Wings held in place while adhesive dries
} } } }
Once the adhesive has cured and if you are
installing retracts you can now complete the
retract installation as per the instructions in
chapters Main Gear, Retractable (Optional)
Air Retract Mechanism (Optional)
and .
