Summary of Contents for Oricom ECO60-1

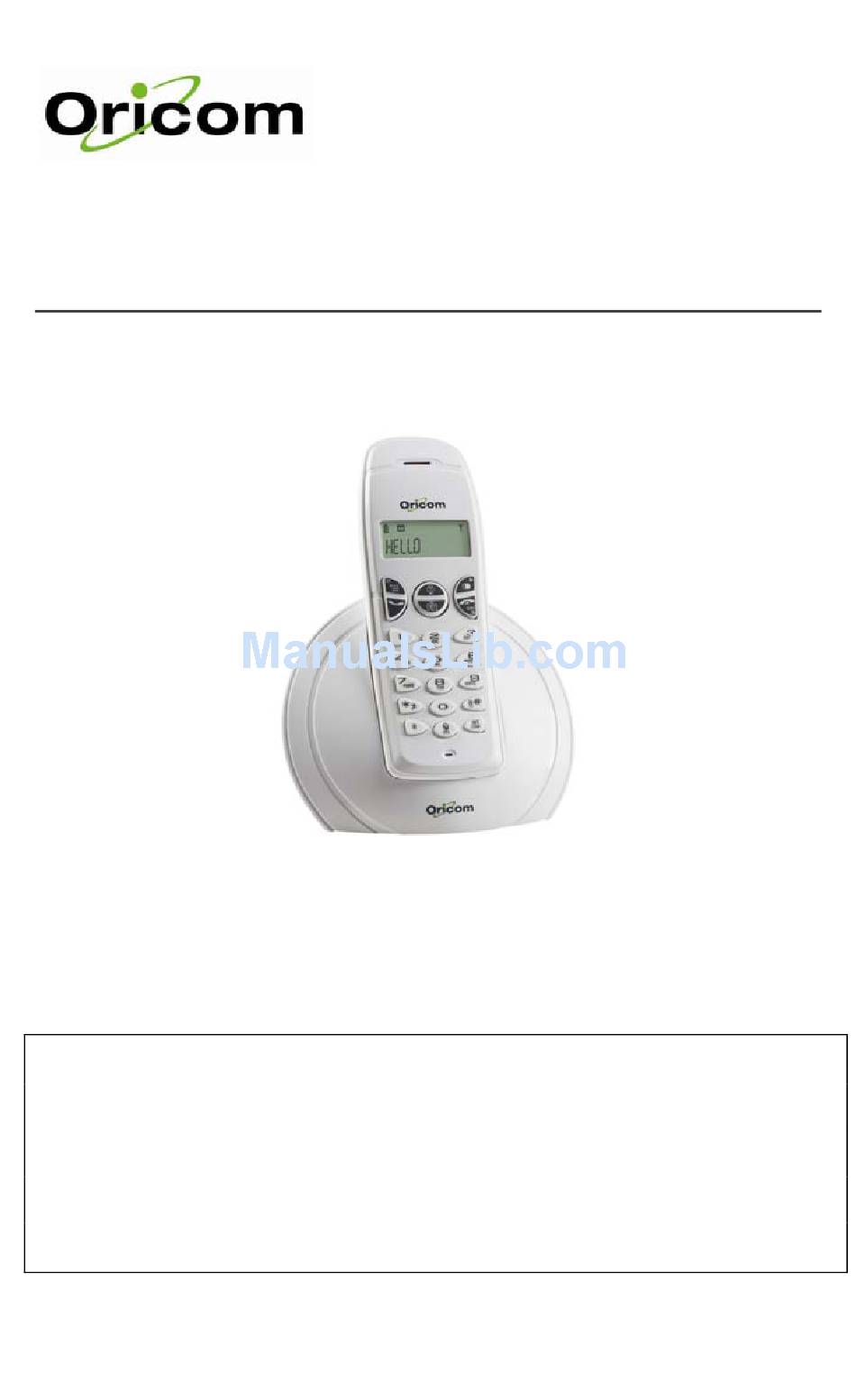

- Page 1 Keep this user guide for future reference WARNING DO NOT USE STANDARD/ALKALINE BATTERIES IN THIS PRODUCT, AS THERE IS A RISK OF EXPLOSION AND/OR INJURY. USE ONLY Ni-MH RECHARGEABLE BATTERIES AS SPECIFICED IN THIS USER GUIDE. CONTACT ORICOM FOR REPLACEMENT BATTERIES.
-
Page 2: Table Of Contents
Environment and Safety Table of Contents Table of Contents ..................2 Environment and Safety ................2 What’s in the Box? ..................4 Welcome ....................4 About your phone..................5 Getting Started ...................7 Multi-handset operation ................12 Text and Numbers ..................13 Phonebook....................14 Call Log....................16 Custom Options.................. - Page 3 Environment and Safety Warnings • Avoid exposure of this telephone to moisture or liquid. • To prevent electric shock, do not open the handset or base cabinet. • Avoid metallic contact (e.g. metal clips, keys) between the battery contacts and charging conductors.
-
Page 4: What's In The Box
You may expand your ECO60 by adding more handsets (ECO6050HS). These may be purchased separately from the retailer where you purchased the product from, or direct from Oricom (Australia). The ECO60 can accommodate a total of 4 cordless handsets. Welcome This user guide provides you with information and instruction you need to get the most from your phone. -
Page 5: About Your Phone
About your phone About your phone THE HANDSET Up Navigation & Call Log key Scroll up menu items Increase ringer and receiver volume Enter incoming call log Menu & OK key Access main menu Confirm selection/operation Redial & More key Enter redial log View more record information Talk key... - Page 6 About your phone HANDSET DISPLAY ICONS Each icon gives you a visual message of what’s happening on your handset. Battery level Call in progress Voicemail indicator Caller ID indicator Key lock Microphone Mute Phonebook Signal strength Ringer off Left/Right arrows Up/Down arrows THE MENUS Your phone offers a variety of features and functions grouped in the menus.
-
Page 7: Getting Started
About your phone Getting Started CONNECTING YOUR PHONE Connect the output plug of the mains adaptor to the bottom of the base unit. Connect the mains adaptor to a standard wall outlet. Connect the telephone line cord to the phone sockets at the bottom of the base unit and the wall phone socket. - Page 8 About your phone CHECKING THE BATTERY LEVEL The battery icon displays the current battery level. = 100% full = 60% full = 30% full = Empty requires charging. If you are on the phone while the battery is nearly flat, you will hear warning tones. Your call may be cut off shortly after the warning.
- Page 9 About your phone NOTE: Your handset cannot make or receive calls if the base power is disconnected or the handset is turned off. NOTE: Emergency Call. This telephone is not designed for making emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services.
- Page 10 About your phone Calling from your phonebook For details on storing names and numbers in the phonebook see page 15. 1. Press 2. Select the phonebook record you want. 3. Press to dial out the call. Calling from the incoming call log You can return a call from the incoming (received or missed) call log.
- Page 11 About your phone Muting the microphone The mute feature allows you to speak to someone in the house privately. 1. Press during a call. The caller cannot hear you, but you can still hear the caller’s voice. Press again to un-mute the microphone. You can now communicate with the caller. MISSING HANDSET(S) You can page or locate a missing handset by pressing the page button on the base unit.
-
Page 12: Multi-Handset Operation
Multi-handset operation Multi-handset operation YOU CAN USE THESE USEFUL FEATURES IF YOU HAVE 2 OR MORE HANDSETS REGISTERED TO THE BASE. CALLING ANOTHER HANDSET (INTERCOM CALL). NOTE: An intercom call can only involve 2 handsets that share the same base unit. -
Page 13: Text And Numbers
Text and Numbers Text and Numbers You can enter text and numbers for handset name, phonebook record, services record, text messaging, and others. ENTERING TEXT AND NUMBERS 1. Find the key with the character you want. 2. Press it as many times as needed for the character to display on the screen. Figure 1: Input table Characters space... -
Page 14: Phonebook
Phonebook Phonebook Each handset has a phonebook that can store up to 20 records. Each phonebook record can have a name of up to 12 characters long and a number of up to 20 digits long. TIP: to navigate the menus. VIEWING THE PHONEBOOK 1. - Page 15 Phonebook ADDING A RECORD NOTE: Memory Full. If your phonebook is full, a notification displays. Delete unnecessary records before adding new ones. 1. Press PHONEBOOK ADD RECORD 2. Select . Press 3. Enter the name. Press NOTE: Text and Number Editing. See Text and Numbers on page 13. 4.
-
Page 16: Call Log
Call Log The call log stores the call history of all the incoming (missed or received), and dialed calls. Calls What is this? Stored records Incoming Calls that you received. Up to 20 Dialed Calls that you have made. The call history includes information of the caller name, number, call time, and date. TIP: to navigate the menus. -
Page 17: Custom Options
Custom Options Naming your handset Every handset can have its own name. It displays on the screen during standby. 1. Press DISPLAY HANDSET NAME 2. Select . Press 3. Edit the name. Use to make correction. 4. Press to confirm. The new setting is saved. Setting your handset’s ringer melody 1. -
Page 18: Calling Features
Extra Features Calling Features Your phone supports a number of call-related features to help you handle and manage your calls. AUTO ANSWER Auto answer enables you to answer an incoming call by simply picking up the handset from the charging cradle. You do not need to press a key to answer the call. Activating/Deactivating auto answer 1. - Page 19 Extra Features VOICEMAIL INDICATION NOTE: Voicemail Indication Service. Consult and subscribe from your service providers service. Voicemail indication is a visual voicemail alert. On the ECO60, you see an envelope icon when there is a voicemail waiting in your service providers mailbox(es). Retrieving voicemail(s) To retrieve your voicemail(s), consult your service providers instructions.
-
Page 20: The System
The System The System TIP: to navigate the menus. REGISTERING YOUR HANDSET Registration allows communication between your base unit and handset(s). If your handset is not registered, you will not be able to make a call or use some of the functions and features on the phone. - Page 21 The System CHANGING THE SYSTEM PIN The system PIN is used for registering, deleting handsets, and protecting the access rights to some of the other menus. The pre-set system PIN is 0000. You can personalize the PIN for greater security. 1.
-
Page 22: Appendix
Appendix TROUBLESHOOTING Problem(s) Tip(s) No dial tone • Check your phone connections. • The handset may be out of range. Move closer to the base. • The battery capacity may be low. Charge battery. Signal icon flashing • The handset may be out of range. Move closer to the base. UNREGISTERED •... -
Page 23: Notes For Operation In New Zealand
The Warranty Card is located in the package. (b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the Trade Practices... -
Page 24: Customer Support
Australia New Zealand Oricom International Pty Ltd Atlas Gentech (NZ) Limited Locked Bag 658 Private Bag 14927, South Windsor, NSW 2756...
