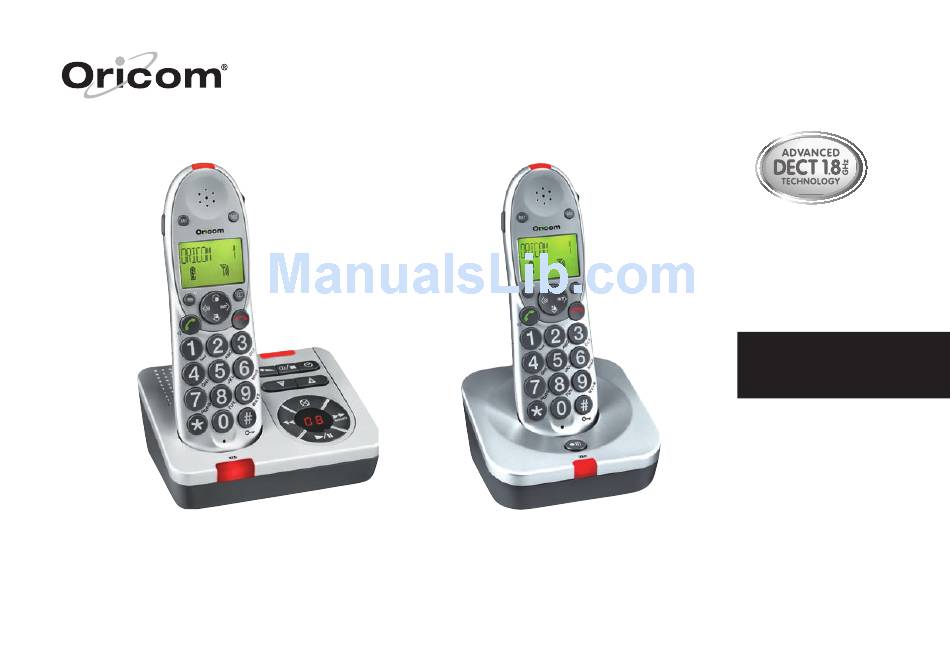

eco series
User Guide
Keep this user guide for future reference.
eco800 DECT Digital Cordless Telephone
eco80 DECT Digital Cordless Telephone
with Answering System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oricom ECO800

Summary of Contents for Oricom ECO800

  • Page 1 User Guide Keep this user guide for future reference. eco800 DECT Digital Cordless Telephone eco80 DECT Digital Cordless Telephone with Answering System...

  • Page 2: Table Of Contents

    Getting Started ..........................2 Operating the Telephone ........................6 Telephone ............................8 Using the menu ..........................11 Phone Book ............................13 Caller ID ............................14 Using the Answering Machine (eco800 Only) ...................16 Using Remote Access (eco800 Only) ....................19 Advanced Setting ..........................21 Troubleshooting ..........................24 Default settings ..........................26 Technical Properties........................27 Maintenance/Guarantee ........................28...

  • Page 3: Warnings And Safety Information

    Adaptor for base unit: eco80 • Because the phone works by sending radio signals between base Input: 100-240VAC 50/60Hz 200mA station and handset, wearers of hearing aids may experience Output: 6VDC 300mA interference in the form of a humming noise. The telephone is eco800 compatible with most popular hearing aids on the market. However, Input: 100-240VAC 50/60Hz 200mA due to the wide range of hearing aids available, there is no guarantee Output: 6VDC 500mA This telephone is capable of producing very high volume that the telephone will function "problem free" with every model. levels when the "Boost" is switched on and the volume • Your phone can interfere with electrical equipment such as answering machines, control is set to maximum. Extreme caution should be taken...

  • Page 4: Getting Started

    1. Connect the mains adaptor (supplied) to the socket on DO NOT USE STANDARD/ALKALINE BATTERIES IN THIS the back of the base unit and to the wall mains supply. PRODUCT, AS THERE IS A RISK OF EXPLOSION AND/OR INJURY. USE ONLY NI-MH RECHARGEABLE BATTERIES AS 2. Connect the telephone cord to the phone socket on the SPECIFIED IN THIS USER GUIDE. CONTACT ORICOM FOR back of the base unit and into the wall phone socket. REPLACEMENT BATTERIES. 3. Insert 2 rechargeable Ni-MH AAA RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
  • Page 5 Pack contents Purchasing additional handsets Depending on the model you have purchased this pack You may expand your eco80/800 by adding more handsets should contain the following items: (eco8050). These can be purchased separately from the reseller where you purchased the product, or directly from If any of these are missing, please contact Oricom directly. Oricom (Australia). The eco80/800 can accommodate a total eco80-1/eco800-1 eco800-1/eco800-2 of 4 cordless handsets. Base units Cordless handsets Important: Do YoU HaVE BroaDBanD/aDSL? Charging cradle If you do, you must connect an in line filter (not supplied)
  • Page 6 Getting Started eco800 Incoming call light Memory 1 Volume up/down Memory 2 Boost Up/Redial Intercom Display Phone Book End call Menu/OK/Recall Alphanumeric keypad Mute/Delete New message LED External call/Handsfree Answer on/off/Stop/Answer Mode Date/Time Down/Calls list Volume up Pause (long press 0) Volume down Delete Fast forward/Memo */Ringer on/off Message counter #/Keylock Play/Pause/OK Microphone PIN Code (under base) Incoming Call/Charging/Line in Use Ring Delay (under base) Rewind...
  • Page 7 Getting Started eco80 Incoming call light Volume up/down Memory 1 Memory 2 Boost Up/Redial Display Phone Book Intercom Menu/OK/Recall Mute/Delete End call External call/Handsfree Down/Calls list */Ringer on/off Alphanumeric keypad #/Keylock Microphone Pause (long press 0) Find handset Charging/Line in use/Registration...

  • Page 8: Operating The Telephone

    Operating the Telephone Operating the Telephone Icons in the handset display Icon Description The instructions throughout this guide are for both the Phone Book mode telephone base and the cordless handset, unless stated There are more digits to view on the left otherwise.
  • Page 9 Operating the Telephone Navigating in the menu Creating phone book entries - example All the handset functions can be accessed via the This example explains how to navigate and create menu. Please refer to “Using the menu” on page 11 for entries in the phone book. Proceed as in this example for information on how to access each function. all the settings. 2 sec Opens add phone book entry mode All descriptions in this operating manual assume that the handset is in Standby mode.

  • Page 10: Telephone

    Telephone Telephone Calling back missed calls Your telephone stores the last 30 incoming calls in the Making a call calls list. Enter the phone number (max. 24 digits) Open the calls list F ollowing incorrect input, press to delete 4 or 5 , or Select an entry and dial the number the last digit Dialling phone numbers from the phone book or Dial the phone number There must be phone numbers stored in the phone book. It is also possible to press the external call button See page 13. Your telephone can store up to 50 name first to obtain dial tone. The digits entered will then be and number entries in the phone book.
  • Page 11 Telephone Chain dialling Boosting the receiver volume This feature is used for more complex telephone When in a call, you can increase the loudness of each services, eg for telephone banking or calling card volume setting if you press the “Boost” button. When the procedures. Several numbers stored in the phone “Boost” button is pressed, the volume control is set to book can be dialled successively when a connection maximum. has already been made. It is also possible to combine P ress the button, an icon flashes in the numbers from the phone book with numbers entered display manually. Numbers stored in the phone book can be Handsfree chained and transmitted as required. Use Handsfree to listen to your caller via the loudspeaker. O pen the phone book when a connection Switch on handsfree mode has been made Deactivate handsfree mode 4 or 5 , or S elect the phone book entry and transmit the number Adjusting the Handsfree volume...
  • Page 12 Telephone Muting the microphone The microphone can be activated and deactivated during a telephone conversation when you are in handset or handsfree mode. , Mute ON, Switch the microphone off (Mute) , Mute OFF Switch the microphone on Ringer on/off You can turn the bell of the ringer on and off. 2 sec Switches the bell ringer off 2 sec Switches the bell ringer on Keylock Calls can still be answered in the normal way when the keylock is on. 2 sec Locks the keypad 2 sec Unlocks the keypad...

  • Page 13: Using The Menu

    Using the menu Using the menu Handset Ringer melody , 4 or 5 , Open the Menu, select “HS MELODY” Handset name MELODY 8 The current setting is shown You can personalise your handset by naming it (max. 9 4 or 5 , Select and confirm a ringing melody letters). Handset Ringer volume , 4 or 5 , Open the Menu, select “HS NAME” There are 5 ringing volume settings available and “OFF” Delete the current name , 4 or 5 , Open the Menu, select “HS RING VOL”...
  • Page 14 Using the menu Base Ringer volume Language There are 5 ringer volume settings available and “OFF” There are 5 languages available, English, German, French, Spanish and Italian. , 4 or 5 , Open the Menu, select “BS RING VOL” , 4 or 5 , Open the Menu, select “LANGUAGE” VOLUME 3 The current setting is shown ENGLISH The current setting is shown 4 and 5 , Select and confirm a ringing tone 4 or 5 , Select and confirm a language Boost Memory With this feature set to “ON” , if you use the button, your handset will remember and use your last Boost setting for each call.

  • Page 15: Phone Book

    Phone Book Phone Book Creating phone book entries 2 sec, , Opens add phone book entry mode Fifty names (50) and phone numbers can be stored in the phone E nter the name (max. 12 letters) and book with a maximum of 12 letters and 24 digits for each entry. confirm it * Always enter the area dialling code with each phone E nter the phone number (max. 24 digits) book entry. and confirm it * T he phone book entries are managed alphabetically. To Editing phone book entries go quickly to a phone book entry, enter the fi rst letter of the corresponding entry. , Open the phone book 4 or 5...

  • Page 16: Caller Id

    Caller ID Caller ID wait for dial tone , 4, 3, # hear a service tone If you subscribe to your telephone operators service confirm (charges may apply), numbers of the incoming calls will be displayed on the screen and stored in the call Take two different calls at the same time log (please consult your telephone service provider for If you have subscribed to your telephone network details). operators Call Waiting Caller ID service, your phone The number of the caller (or name if stored in the Phone will display the number of the second incoming call for Book) appears in the display when the phone rings. If the around 20 seconds while you are talking on the phone. caller has withheld their phone number, a corresponding During a call, you will hear two loud beeps periodically to message appears in the display. The phone number is notify you of another incoming call. If you wish to answer not displayed and will not be stored in the calls list.
  • Page 17 Caller ID Displaying calls list entries Storing calls list entries in the phone book Opens the calls list at most recent entry A phone number stored in the calls list can be stored directly to the phone book. 4 or 5 Select an entry Opens the calls list at most recent entry 1x to 2x To display further information 4 or 5 Select an entry Other messages that you may see in the display, if your...

  • Page 18: Using The Answering Machine (Eco800 Only)

    Using the Answering Machine (eco800 Only) Answering Machine (eco800 Only) Record your outgoing message (OGM) Your answering machine comes with a default outgoing Your answering machine can be ready for use within a message but you can record your own personal OGM of few seconds of plugging in the telephone line cord and up to 2 minutes long.
  • Page 19 Using the Answering Machine (eco800 Only) Check the date and time Time saver: This feature can save you the cost of a call when you ring in to listen to your messages from The current date and time setting is announced another phone. If your answering machine answers...
  • Page 20 Using the Answering Machine (eco800 Only) Delete a single message/memo Play the message to be deleted 2 sec Delete the message Delete all messages/memos 2 sec When no messages are being played Deletes all old messages Memory Full Should your answering machine become full either during a recording or after the memory has become full, “Memory Full” will be announced and the Answer Mode will change automatically to “Answer Only”. You wil need to delete some messages before any new messages can be recorded.

  • Page 21: Using Remote Access (Eco800 Only)

    Using Remote Access (eco800 Only) Remote Access (eco800 Only) Press the key at any time to exit from changing the PIN code and return to standby. The PIN code will You can call your answering machine from any Tone then remain unchanged. phone or mobile phone whilst you are away from home to listen to your messages. Call in to check your messages D ial your own phone number and wait PIN Code for remote access...
  • Page 22 Using Remote Access (eco800 Only) Remote commands Digit Function Rewind Play/Pause Fast Forward 1st OGM Playback (Answer & Record) 1st OGM Recording Stop Delete current message Answer Off Answer On/Answer mode Delete all old messages Skip announcement Record a memo...

  • Page 23: Advanced Setting

    Advanced Settings Advanced Settings Dialling pause (PBX ONLY) When using some PBX phone systems, it takes a little Setting the Recall time time before the dial tone becomes available. It is possible to insert a pause after the number for the outside line so Two recall timings are available. Short 100ms (Australia) that the number can be dialled in a continuous process and Long 600ms (New Zealand). without having to wait for the dial tone. , 4 or 5 , Open the Menu, select “RECALL” 2 sec I nsert a dialling pause. “P” is shown in SHORT The current setting is shown the display 4 or 5 , Select and confirm “SHORT” or “LONG”...

  • Page 24: Advanced Settings

    Advanced Settings Multi-Handset Use Conference calls You can use these useful features if you have two or You can hold a conference call between 1 external and 2 more cordless handsets (HS1, HS2) registered to the internal callers. base. HS1: , , D uring an external call, dial the number Making internal calls eg 2 of the required handset HS2: Accept the internal call on the other HS1: , , eg 2 D ial the internal call number of the handset required handset...
  • Page 25 Enter the PIN code and confirm Handset deregistration You will only need to de-register a handset if you decide that you have too many handsets registered or your handset develops a fault and you need to replace it. , 4 or 5 , Open the menu, select “REMOVE HS" Enter the PIN code and confirm REMOVE HS?, Enter the handset number and confirm Purchasing additional handsets You may expand your eco80/800 by adding more handsets (eco8050). These can be purchased separately from the reseller where you purchased the product, or directly from Oricom (Australia). The eco80/800 can accommodate a total of 4 cordless handsets.

  • Page 26: Troubleshooting

    Troubleshooting Troubleshooting Problem Possible cause(s) Solution(s) Bad audio quality (crackles,echo, etc.). 1. Interference from nearby electrical appliance. 1. Try a different connection point, one that is away from 2. Base unit is installed in a room with thick walls. other electrical appliances. 3.
  • Page 27 Troubleshooting Problem Possible cause(s) Solution(s) eco800 Answering System (ONLY) Answering machine does not record messages. 1. The answer machine may be turned off. 1. Switch the answering machine on. 2. The memory may be full. 2. Delete some messages. 3. Answer mode may be set to ANSWER ONLY.

  • Page 28: Default Settings

    Default settings Telephone Answering Machine The default settings can be restored via the menu. Refer Cordless handset to page 21 for the sequence of menu option selections. The default settings can be restored via the menu. Refer Language English to page 21 for the sequence of menu option selections. Answer mode Answer and record Language English PIN-Code for remote access 000 Handset name Oricom Answer delay Ringer melody Time format 24 Hour Ringer volume Boost Memory Auto answer Recall time 100 ms PIN-Code 0000...

  • Page 29: Technical Properties

    DECT: Digital Enhanced Cordless Telecommunication = Feature Value Standard for cordless telephones. Standard DECT GAP GAP: Generic Access Profile = Standard for the interoperation Power supply (base eco80 of handsets and base stations from different manufacturers. station) Input: 100-240VAC 50/60Hz 200mA Output: 6VDC 300mA eco800 Input: 100-240VAC 50/60Hz 200mA Output: 6VDC 500mA Range Outdoors Approx 300m Indoors Approx 50m Standby Up to 100 h Max. talk time Up to 10 h Rechargeable batteries AAA 1.2V 800mAh NiMH Dialling mode Tone (DTMF) Permissible ambient 0ºC to 45ºC...

  • Page 30: Maintenance/Guarantee

    Full details of the Warranty Card is located in the package. warranty are contained in the enclosed warranty card. (b) Exclusion and limitation of liability. Oricom will not be in Customer Support breach of a warranty or condition expressly stated in this...
  • Page 31 Maintenance/Guarantee REN (RN for New Zealand) Notes for operation in New Zealand The REN (Ringer Equivalence Number) or (RN) is of The grant of a Telepermit for any item of terminal equipment significance only if you wish to connect more than 1 indicates only that Telecom has accepted that the item telephone to your telephone line.

  • Page 32: Index

    Index Index Creating phone book entries .......... 13 Creating phone book entries - example ......7 Adjusting the Handsfree volume ........9 Customer Support ............28 Adjusting the receiver volume .......... 9 Auto talk ............... 12 Date/Time ..............11 Delete a single message/memo ........18 Base Ringing melody ............. 11 Delete all messages/memos .......... 18 Base Ringing volume ............. 12 Deleting a single calls list entry ........15 Boost Memory ..............
  • Page 33 Index Memory Full ..............18 Handset deregistration ..........23 Multi-handset use ............22 Handset name .............. 11 Muting the microphone ..........10 Handset registration ............22 Handset Ringing melody ..........11 Handset Ringing volume ..........11 Navigating in the menu ............ 7 Handsfree ............... 9 Notes for operation in New Zealand ........ 29 Icons in the handset display ..........6 Pack contents ..............3 Installation ..............
  • Page 34 Index Redial................8 Remote commands ............20 WARNING ............... 2 REN (RN for New Zealand) ..........29 Warranty (Australia) ............28 Reset to default settings ..........21 Ringer on/off ..............10 Select your country ............2 Set the answer delay ............. 16 Set the answer mode ............ 16 Set the date and time ............
  • Page 36 Australia Customer Support Oricom International Pty Ltd Email: support@oricom.com.au Locked Bag 658 Web: www.oricom.com.au South Windsor, NSW 2756 Phone: (02) 4574 8888 Fax: (02) 4574 8898...
