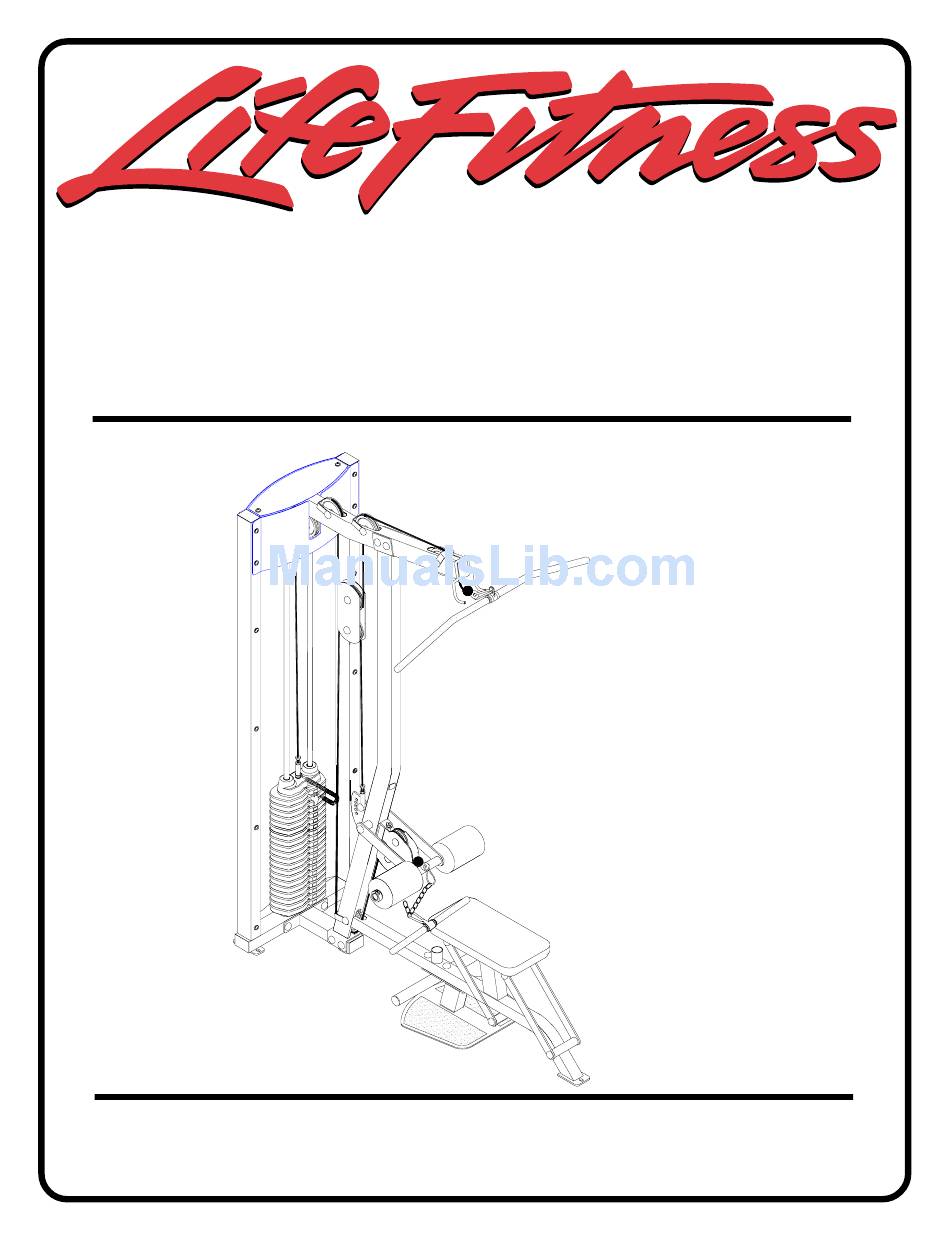

FIT SERIES
LAT/ROW

ASSEMBLY INSTRUCTIONS

Part # 7489801
1
Revision:5/06/03
Rev A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FIT SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness FIT SERIES

Summary of Contents for Life Fitness FIT SERIES

  • Page 1: Assembly Instructions

    FIT SERIES LAT/ROW ASSEMBLY INSTRUCTIONS Part # 7489801 Revision:5/06/03 Rev A.

  • Page 2: Parts List

    PARTS LIST DESCRIPTION PART # DESCRIPTION PART # TOWER ACU04-1656 ACUDA1C03804316NU 3/8 X 43mm BOLT FOOT PLATE ACU04-1654 ACUDA1C03805016NU 3/8 X 50mm BOLT LAT/LOW BOOM ACU04-1652 ACUDC1250100020B 3/8” FLAT WASHER KNEE HOLD DOWN ACU04-1364 3/8 X 67mm BOLT ACUDA1C03806716NU LAT/LOW SEAT ACU04-1368 ACUDA1C03807016NU 3/8 X 70mm BOLT...
  • Page 3 31 3/8 X 43mm BOLT 3/8” LOW HEIGHT LOCK 32 3/8 X 50mm BOLT 3/8” SAE WASHER 34 3/8 X 67mm BOLT 35 3/8 X 70mm BOLT 3/8” BLACK FLAT WASHER 36 3/8 X 73mm BOLT RH CAP (WHITE/PLATINUM/BLACK) 3/8” ACORN NUT WASHER 37 3/8 X 90mm BOLT...
  • Page 4 40 3/8 X 25mm BUTTON HEAD BOLT 3/8” FLAT WASHER 17 3/8 X 90mm BUTTON HEAD BOLT 3/8 X 1/2” SPACER 41 1/2 X 3” SHOULDER BOLT 3/8 X 1/2” FLANGE SPACER Bolt Length Ruler NOTE: BOLT LENGTH IS MEASURED FROM THE UNDERSIDE OF THE HEAD OF THE BOLT. BOLT LENGTH...
  • Page 5 3/8 X 90mm 37 FIGURE 1 STEP 1: • LOOSELY assemble the LAT/LOW BASE (10) to the TOWER (1) using four RH CAPS (47), two 3/8 X 90mm BOLTS (37), four 3/8” SAE WASHERS (44), four 3/8” RH WASHERS (45) and two 3/8” LOW HEIGHT LOCK NUTS (43) as shown in FIGURE 1.
  • Page 6 34 3/8 X 67mm 3/8 X 97mm 38 FIGURE 2 STEP 2: • LOOSELY assemble the LAT/LOW FRAME (6) to the LAT/LOW BASE (10) using four RH CAPS (47), two 3/8 X 97mm BOLTS (38), four 3/8” SAE WASHERS (44), four 3/8” RH WASHERS (45) and two 3/8” LOW HEIGHT LOCK NUTS (43) as shown in FIGURE 2. •...
  • Page 7 LUBRICATION NOTE: When finished assembling the Weight Stack, open the lube Pack provided with this unit and apply a thin film of Lubricant around the first 2 to 3 inches of each Guide Rod above the Head Plate Assembly. After the cables are installed, use of the ma- chine will spread the lubricant over the length of the Guide Rods and into the...
  • Page 8 FIGURE 4 36 3/8 X 73mm 45 44 36 3/8 X 73mm STEP 4: • LOOSELY assemble the LAT/LOW BOOM (3) to the TOWER (1) and the GUIDE ROD SUPPORT (12) using two 3/8 X 73mm BOLTS (36), four 3/8” FLAT WASHERS (33) and two 3/8” LOW HEIGHT LOCK NUTS (43) as shown in FIGURE 4. •...
  • Page 9 TIGHTEN! TIGHTEN! TIGHTEN! FIGURE 5 STEP 5: • Securely tighten all loose frame connections made to this point, then proceed to snap RH CAPS (47) over the RH WASHERS (45) on all tightened connections. • Slide the 13/16” SHAFT COLLARS (24) up against the GUIDE ROD SUPPORT (12) and SECURELY tighten the set screws on the SHAFT COLLARS (24).
  • Page 10 FIGURE 6 39 3/8 X 164mm BLACK 46 STEP 6: • Insert four 5-1/2” PIVOT SHAFTS (26) into the LAT/LOW FRAME (6) and the LAT/LOW SEAT (5) as shown in FIGURE 6. • SECURELY assemble four LAT/LOW PLATES (8) to the LAT/LOW SEAT (5) and to the LAT/LOW FRAME (6) using eight BLACK RH CAPS (46), four 3/8 X 164mm BOLTS (39), eight 3/8”...
  • Page 11 FIGURE 8 41 1/2 X 3” STEP 8: • Assemble the SWIVEL PULLEY (7) to the LAT/LOW FRAME (6) using one 1/2 X 3” SHOULDER BOLT (41), one 3/8” RH WASHER (45), one 3/8” SAE WASHER (44) one 3/8” LOW HEIGHT LOCK NUT (43) and one RH CAP (47) as shown in FIGURE 8. (NOTE: Tighten connection enough to remove play, yet allowing SWIVEL PULLEY (7) to rotate freely.) 46 BLACK FIGURE 9...
  • Page 12 FIGURE 10 BLACK 46 3/8 X 43mm 31 44 45 35 3/8 X 70mm BLACK STEP 10: • Route the LAT CABLE (49) through the LAT/LOW BOOM (3) as shown and SECURELY assemble two 4-1/2” PULLEYS (14) to the LAT/LOW BOOM (3) using two RH CAPS (47), two BLACK RH CAPS (46), two 3/8 X 70mm BOLTS (35), four 3/8” SAE WASHERS (44), four 3/8”...
  • Page 13 32 3/8 X 50mm FIGURE 12 STEP 12: • Route the LAT CABLE (49) around one 4-1/2” PULLEY (14) and SECURELY assemble the PULLEY to the LAT/LOW BOOM (3) using one 3/8 X 50mm BOLT (32), two 3/8” FLAT WASHERS (33) and one 3/8” LOW HEIGHT LOCK NUT (43) as shown in FIGURE 12. •...
  • Page 14 46 BLACK 3/8 X 43mm 31 BLACK 46 13 3-1/2” BLACK 46 35 3/8 X 70mm FIGURE 13 STEP 13: • Route the ROW CABLE (48) around one 4-1/2” PULLEY (14) and SECURELY assemble the 4-1/2” PULLEY and one 3-1/2” PULLEY (13) to the SWIVEL PULLEY (7) using six BLACK RH CAPS (46), three 3/8 X 43mm BOLTS (31), six 3/8”...
  • Page 15 FIGURE 14 3/8 X 43mm STEP 14: • Route the ROW CABLE (48) around one 4-1/2” PULLEY (14) and SECURELY assemble the PULLEY to the bottom holes of the DUAL PULLEY PLATES (11) using two RH CAPS (47), one 3/8 X 43mm BOLT (31), two 3/8” SAE WASHERS (44), two 3/8” RH WASHERS (45) and one 3/8”...
  • Page 16 39 3/8 X 164mm FIGURE 15 STEP 15: • SECURELY assemble the KNEE HOLD DOWN (4) to the LAT/LOW FRAME (6) using two RH CAPS (47), one 3/8 X 164mm BOLT (39), two 3/8” SAE WASHERS (44), two 3/8” RH WASHERS (45) and one 3/8” LOW HEIGHT LOCK NUT (43) as shown in FIGURE 15. •...
  • Page 17 FIGURE 16 STEP 16: • Assemble the LOW ROW BAR (54) to the ROW CABLE (48) using two SNAP LINKS (52) and one 12-LINK CHAIN (51) as shown in FIGURE 16. • Assemble the LAT BAR (53) to the LAT CABLE (49) using one SNAP LINK (52) as shown in FIGURE 16.
  • Page 18 ADJUSTMENT FIGURE 17 STEP 17: • Adjustments can be made in the above locations to set the correct amount of tension in the cables. • If upon completion of assembly, the HEAD PLATE (22) does not sit on top of the first WEIGHT PLATE (20), push the HEAD PLATE (22) down, insert the WEIGHT STACK PIN (23) and perform several repetitions.
  • Page 19 HEAD BOLTS (17), twenty-four 3/8” BLACK FLAT WASHERS (42) and twelve 3/8” ACORN NUTS (58) as shown above. Thank you for purchasing the LifeFitness FIT SERIES LAT/ROW. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...

  • Page 20: Warranty Information

    • Lube the Guide Rods. Apply the lubricant to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Do not spray lubricant directly on the Guide Rods. Thank you for purchasing the LifeFitness FIT SERIES LAT/ROW. If unsure of proper use of equipment, call your local LifeFitness distributor or call the LifeFitness customer service department at...
