Summary of Contents for InMotion L8

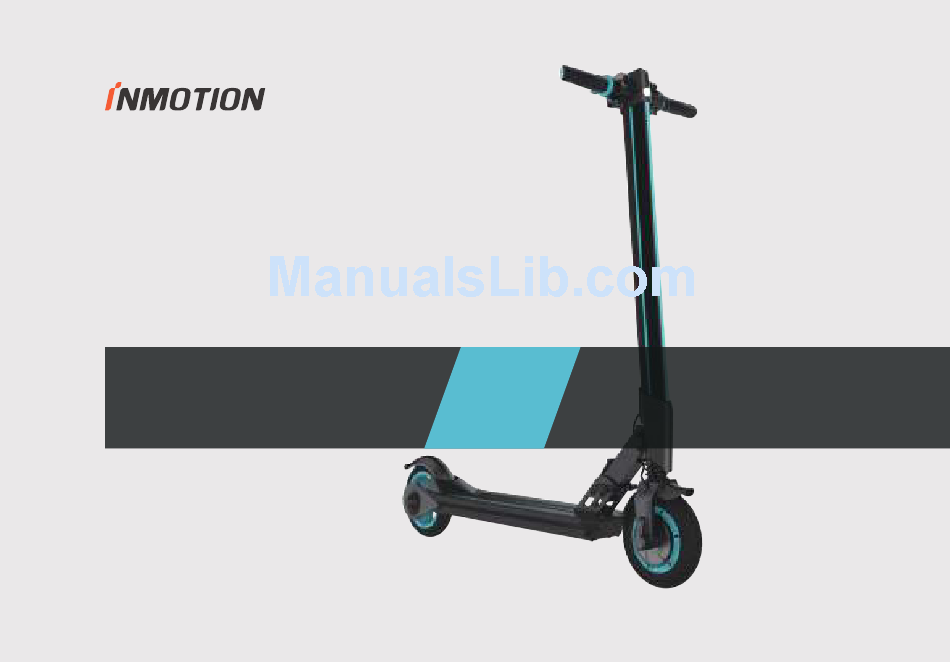

- Page 1 INMOTION E-SCOOTER U SE R M AN UAL INMOTION TECHNOLOGIES CO.,LTD www.imscv.com...
-
Page 3: Table Of Contents
2.6. Open L8 2.7. Display Screen 2.8. INMOTION APP 2.9. Pairing with INMOTION APP 2.10. Scooter Working Modes Battery and Charger 3.1. Battery Specifications 3.2. Charging Method 3.3. Safety Prompt for Charging 3.4. Protection against Over-discharging How to Use L8... - Page 4 4.1. Riding L8 4.2. Precautions before driving 4.3. Operating steps of beginners 4.4. Body folding steps 4.5. Switch lamp and active power off Precautions for Safe driving process Care and Maintenance 6.1. Storage 6.2. Cleaning 6.3. Handling 6.4. Inflation and Replacement of the Interior and Exterior Tires 6.5.
-
Page 5: Introduction
INMOTION or the after-sale service department of INMOTION Company. 1.2. Related Documents and Materials The document in PDF format for "User Manual" of L8, INMOTION APP and other help files can be downloaded from the official web site of Shenzhen INMOTION Technology Co., Ltd. : www.imscv.com. -
Page 6: Product Overview
Make sure to keep a record of the serial No. and take care not to lose it. You can find the serial No. of the product at the following positions: the outer packing, the warranty card, and the body of L8 (to be more specifically, it's located at structure of the Body folding). -
Page 7: Product Parameters
2.3. Product Parameters Product model Remarks ① You can set the maximum Factory default speed 25 km/h 25 km/h cruising speed with mobile Maximum speed Approx. 30 km/h ① Approx. 30 km/h ① telephone APP. The maximum Endurance mileage Approx. 15 km ② Approx. -
Page 8: Product Structure
2.4. Product Structure Handlebar rubber Handlebar lamp Folding fixing part Handlebar decorative piece Floodlight Decorative strip Decorative light Brake button Throttle button Display screen Handlebar quick spanner Handlebar stem Body Tail Rear fender & foot brake Tail lamp cover Steering decorative piece Rear wheel Folding button... -
Page 9: Packing Carton Check
Use of unauthorized parts and components or incorrectly installed parts and components may result in damage to L8 or even personal injury. In order to ensure quality and safety, all parts of L8 will be subject to the approval of Shenzhen INMOTION Technology Co., Ltd. - Page 10 Step 2：Open Handlebar quick spanner，then rotate the hand out to the side，Inserted into the middle，Pressing Handlebar quick spanner. Step 3：Hands holding the hand，you can use L8 normal through promote the body. Open Handlebar quick spanner Pressing Handlebar quick spanner Inserted into the middle...
-
Page 11: Display Screen
2.7. Display Screen The LED display screen is an interface that shows the operation status of the scooter： Battery life indicator which consists of 5 bars Only this grid of electricity flicker must be charged to use Speed indicator Bluetooth status indicator... -
Page 12: Inmotion App
2.8. INMOTION APP The INMOTION APP is a mobile software specially designed by INMOTION for its users, and can be used to control the scooter, make friends, publish messages, take part in INMOTION activities, purchase INMOTION accessories, etc. The English title of the L8 INMOTION APP is: INMOTION. -
Page 13: Scooter Working Modes
This mode will be activated automatically when the system detects some error or warning, and in this case the system will take control of the scooter and bring it to a stop, and the same time, L8 will be flashing red light... -
Page 14: Battery And Charger
-20℃~45℃ 3.2. Charging Method step 1: The position of the charging port is at the front of L8, Open the Charging cover, and make sure that the Charging interface is dry. step 2: Insert the charging port to the charging interface on the L8. -
Page 15: Safety Prompt For Charging
3.4. Protection against Over-discharging The INMOTION E-scooter system has a built-in smart over-discharging protection system which will actively cut off the power when the scooter is in locking state or shutdown state and the electric quantity is too low. The scooter in an over-discharging protection state need to be awakened via charging, if the scooter remains un-awakened after half hour's charging, please contact the authorized dealer of the INMOTION Company or the INMOTION after-sale department. -
Page 16: How To Use L8
L8 is a high-tech traveling and commuting device. Driving without learning about the operating specifications will cause unpredict- able injuries. This instruction is made for green hands, especially the beginners of L8, stating in details on how to correctly drive L8. -
Page 17: Operating Steps Of Beginners
Lightly press the accelerator handle for acceleration. The degree of acceleration depends on holding degree on accelerator. Beginners shall lightly hold the accelerator handle and accelerate slowly. · Rotate the handle can control L8 in direction. Due to the length of L8, you should pay attention not to swerve within the narrow space. ·... -
Page 18: Switch Lamp And Active Power Off
5. Precautions for Safe driving process L8 is a personal traveling and commuting tool. Strict inspection has been implemented on the technology and production. If the users do not use it in accordance with the safety warnings regulated in this manual, driving risks may occur. Anywhere or any time, falling, out of control or bumping, including violence of the driving manual specifications, may cause injuries, even death. -
Page 19: Care And Maintenance
Use soapy water, clean water or soft cloth to rub the outer cover of L8. Prohibit using high pressure water gun to swash L8. The waterproof and waterproof level of L8 shall be IP65 that is, spilling resistant and dust resistant. Thus, it is not allowed to dip L8 ·... -
Page 20: Handlebar Loosening Adjustment
7.3. Following the Local Laws L8 may serve as a smart and convenient travel tool, but it still can't replace other existing transportation means, thus do not try to ride L8 on public transportation roads. In some countries and regions, L8 is barred from public transportation roads. For detailed information, contact the related local authority, or you can also make contact with the authorized agent or the after-sales department of INMOTION. -
Page 21: Legal Statement
When feeling unwell physically or mentally due to illness or under the influence of medicine or alcohol, do not ride L8. L8 is designed for only one rider, and never try to ride double or more, or ride the scooter holding a child or load. - Page 22 Do not wear high heels or other unsuitable shoes, too loose or other unfit clothes for riding L8, and always wear specialized protective gears when riding it. · When you are to ride L8, it's strongly recommended that you wear a pair of safety goggles, lest dirt, dust or insects harm your eyes or undermine your riding safety. ·...
-
Page 23: Personal Information Protection Statement
· like performing stunts or X-sports, etc. When you need to ride L8 to a remote area, do not go alone. Even if you have partners on your journey, you still have to prepare · yourselves well for potential risks. -
Page 24: Intellectual Property Statement
This statement is governed by the Laws of the People's Republic of China. INMOTION will not assume compensation or any other responsibilities for any claims, liabilities and damages caused by or may result from violation of this legal statement by consumers or any other third parties. -
Page 25: Product Warranty
9.1 Scope of Warranty ◆All products purchased from INMOTION's official online outlet, within 7 days from the date of sale (herein, the date of receipt by the customer is taken as the date of sale), are covered by the "7-day no-reason return" policy in line with the rules of the platform. - Page 26 The serial No. bar code or model on the product warranty card doesn't coincide with the product itself · The product has been dissembled or repaired by personnel unauthorized by INMOTION · Daily wear and tear (including wear and tear of the scooter shell, handle grips, tires, etc.) that does not affect the product's functionality ·...
- Page 27 Products used for commercial purposes will not be covered by the warranty · For malfunctioned products whose warranty has expired, INMOTION provides paid repair service, and as to the charging standard · and accessory prices, you can contact our after-sales personnel for more details For malfunctioned products whose warranty has expired, INMOTION provides paid repair service, and as to the charging standard and accessory prices, you can contact our after-sales personnel for more details.
-
Page 28: Product Warranty Card
Product Warranty Card Customer and purchase information registration Serial No. Customer name Purchase date Contact number Email Address Dealer name Dealer address... - Page 29 Repair record Serial No. Troubleshooting and service record Service station Repair time Note: the product should be repaired with the warranty card, invoice, the scooter, charger and barttery pack, etc.
-
Page 30: Certificate Of Quality
Product Quality Certificate This product is qualified by passing QC inspection and allowed to be sold on the market. The warranty card (It takes effect upon manufacturer’s seal and pasting with serial number) and regular sales invoice is effective maintenance certificate. Please keep the warranty card properly. Release date：... - Page 32 Download App Follow wechat account Customer Service Center：4000-1000-12 0755-2572-2469...
