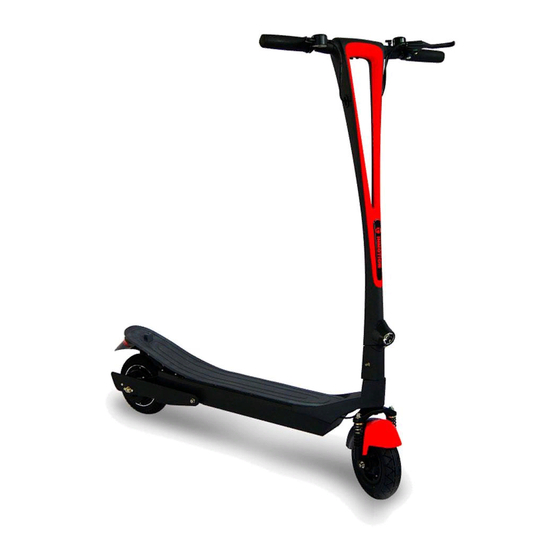

- Page 1 I N M O T I O N E - S C O O T E R Lively USER MANUAL INMOTION TECHNOLOGIES CO.,LTD.
-
Page 3: Table Of Contents
Product Dimensions..................................- 4 - Product Parameters................................... - 5 - Product Structure....................................- 6 - Packing Carton Check..................................- 7 - Assembly of Lively..................................... - 7 - Handlebar structure................................... - 9 - Display Screen....................................- 9 - Mobile Client..................................... - 11 - 2.10... - Page 4 Care and Maintenance.................................- 19 - Storage..................................- 19 - Cleaning..................................- 19 - Disposition.................................- 19 - Inflation and Tube/ Tire Replacement........................- 20 - Contact and Legal Information..............................- 21 - Feedback to Us................................ - 21 - Contact Us................................- 21 - Comply with Local Laws and Regulations......................
-
Page 5: Document Overview
INMOTION Related Documents and Materials The User Manual in PDF format, mobile client and other useful documents related to Lively, can be found and downloaded from the official website of INMOTION www.imscv.com. Signs and Words of Caution The following descriptions are applicable all through this manual, and the "Warnings"... -
Page 6: Product Serial No
Make sure to keep a record of the serial No. and take care not to lose it. You can find the serial No. of the product at the following positions: the outer packing, the warranty card, and the body of Lively (to be more specifically, it's located at the tail of the footboard, and can be seen when the rubber footboard is lifted). -
Page 7: Product Parameters
Battery specifications 48V 8Ah lithium battery ③ Lively boasts a waterproof and dustproof level of IP65. Charging requirements Input: 100-240V/AC, 50/60Hz,2.5A Output: DC 54.6V, 2.0A Charging time Approx. -
Page 8: Product Structure
Product Structure Kickstand - 6 -... -
Page 9: Packing Carton Check
Adoption of parts not approved by INMOTION or failure to assemble parts correctly may cause damage to Lively, or even lead to bodily injuries and/ or property loss. To ensure product quality and safety, all parts of Lively have had to be approved by INMOTION and correctly mounted on Lively. - Page 10 Step 2: as shown in the following figure, the scooter is in a folding state and the handlebar stem needs to be erected. On the reverse side of the scooter's display screen, there is a protruding round button as shown in enlarged view 3. Press the button to release the buckle that locks the handlebar stem, lift the handlebar to bring its stem in line with the steering column, as shown in enlarged views 4 and 5.
-
Page 11: Handlebar Structure
Step 3: as shown in enlarged view 6, flip up the side kickstand with your foot, hold the handlebar grips with two hands, and press the power button on the right side to switch the scooter on. Handlebar structure Display Screen The LED display screen is an interface that shows the working status of the scooter: - 9 -... - Page 12 The table below explains the meanings of each icon on the screen. Icon Explanation Icon Explanation Locking indicator which lights up when the scooter is locked and dims when it's Speed indicator unlocked. Error indicator which indicates the scooter is Bluetooth status indicator experiencing some malfunction Distance covered by a single riding...
-
Page 13: Mobile Client
Mobile Client The mobile client is a mobile software specially designed by INMOTION for its users, and can be used to control the scooter, make friends, publish messages, take part in INMOTION activities, purchase INMOTION accessories, etc. The Chinese title of the Lively mobile client is: Lexingtianxia. - Page 14 Lively realizes interconnection with a mobile phone via wireless bluetooth 4.0 BLE, and is compatible with Android OS of version 4.3 or higher and Iphone 4s or later handsets with IOS 7.0 or higher. - 12 -...
-
Page 15: Scooter Working Modes
Locked mode When Lively is parked normally and connected to your mobile phone, you can switch the scooter to the locked mode by operating on your phone. In this mode, the throttle will cease to function. Only by operation via the connected mobile phone, can the scooter be released from this mode. -
Page 16: Battery And Charger
② The voltage herein refers to that of the lithium battery in a sound state of charge. Capacity ③ ③ INMOTION Lively is equipped with an 8Ah battery. Battery weight 2.7 kg ④ The scooter shall not be charged when temperature... -
Page 17: Charging Method
Charging Method Step 1: as shown in the figure, the charging port is positioned on the right side of the scooter's tail. Flip out the cover, and make sure the port is dry. Step 2: plug in the charger end that fits the scooter's charging port. Step 3: when the indicator on the charger lights up in red, it indicates charging is in progress;... -
Page 18: Over-Discharge Protection
The following contents are aimed for beginners, especially those for whom it's the first time to put their feet on lively. Here, you will learn in details how to ride Lively correctly and the various precautions in time of riding. Make sure to read these contents carefully and ride Lively in strict accordance with the requirements. -
Page 19: Operation Procedures For A Beginner
· any other obstacles pose obstruction. You need a skilled assistant at your hand. ∙ Your assistant needs to be able to operate Lively skillfully and be familiar with all · the precautions and riding methods specified in this manual. -
Page 20: Precautions For Safe Riding
5 Precautions for Safe Riding Lively is a personal travel tool of a certain speed, and its production process and the technologies employed have all gone through strict tests. However, failure to observe the instructions provided in this manual when using it, may put your safety at risk. In whatever time and place, accidents such as fall-off, loss of control, collision, etc., as well as failure to observe the requirements... -
Page 21: Care And Maintenance
Before cleaning, make sure to power off the scooter, unplug the charger, cap the charging port. During cleaning, take care · not to let water penetrate into the charging port. Use soapy or clean water together with soft cloth to wipe the shell of Lively, and do not flush Lively with a high-pressure · water gun. -
Page 22: Inflation And Tube/ Tire Replacement
Inflation and Tube/ Tire Replacement If the front tire is found deflated, inflate it in a timely manner. When shipped, Lively's default tire pressure is 3.0 Bar. If the scooter's tires need to be replaced for blowout or other reasons, contact the authorized agent or the after-sales department of INMOTION for fixing your scooter. -
Page 23: Contact And Legal Information
Comply with Local Laws and Regulations Lively may serve as a smart and convenient travel tool, but it still can't replace other existing transportation means, thus do not try to ride Lively on public transportation roads. In some countries and regions, Lively is barred from public transportation roads. For detailed information, contact the related local authority, or you can also make contact with the authorized agent or the after-sales department of INMOTION. -
Page 24: Legal Statement
When feeling unwell physically or mentally due to illness or under the influence of medicine or alcohol, do not ride Lively. · Lively is designed for only one rider, and never try to ride double or more, or ride the scooter holding a child or load. ·... - Page 25 Do not wear high heels or other unsuitable shoes, too loose or other unfit clothes for riding Lively, and always wear specialized · protective gears when riding it. When you are to ride Lively, it's strongly recommended that you wear a pair of safety goggles, lest dirt, dust or insects harm your · eyes or undermine your riding safety.
-
Page 26: Personal Information Protection Statement
· behaviors like performing stunts or X-sports, etc. When you need to ride Lively to a remote area, do not go alone. Even if you have partners on your journey, you still have to · prepare yourselves well for potential risks. - Page 27 Your agreeing to provide any personal information will be taken for your consent to allowing INMOTION to use the information and disclose it to affiliated companies. Use by INMOTION and its affiliated companies includes but is not limited to that by employees, consultants, agents, suppliers, partners, etc.
-
Page 28: Intellectual Property Statement
This statement is governed by the Laws of the People's Republic of China. INMOTION will not assume compensation or any other responsibilities for any claims, liabilities and damages caused by or may result from violation of this legal statement by consumers orany other third parties. -
Page 29: Product Warranty
9.1 Scope of Warranty ◆ All products purchased from INMOTION's official online outlet, within 7 days from the date of sale (herein, the date of receipt by the customer is taken as the date of sale), are covered by the "7-day no-reason return" policy in line with the rules of the platform. The returned product must be the original one and its packaging shall be free from damage and will not affect its resale. - Page 30 The serial No. has been deleted or modified · The serial No. bar code or model on the product warranty card doesn't coincide with the product itself · The product has been dissembled or repaired by personnel unauthorized by INMOTION · - 28 -...
-
Page 31: Product Repair Service Policies
Products used for commercial purposes will not be covered by the warranty · ③For malfunctioned products whose warranty has expired, INMOTION provides paid repair service, and as to the charging standard and accessory prices, you can contact our after-sales personnel for more details 9.2 Product Repair Service Policies... -
Page 32: Product Warranty Card
Product Warranty Card Customer and purchase information registration Customer name Serial No. Purchase date Contact number Email Address Dealer name Contact information/ number Dealer address - 30 -... - Page 33 Repair record Serial No. Troubleshooting and service record Service station Repair time Note: should the product need repair, the warranty card, invoice, the scooter, its charger and battery pack, etc. shall all be sent back. - 31 -...
-
Page 34: Certificate Of Quality
Certificate of Quality This product is proved to be qualified through quality inspection, and thus allowed to be shipped. This warranty card (valid only with the manufacturer's stamp and an affixed serial No.) and a formal invoice are valid warranty proofs, andkeep this warranty card properly. Date of production: Quality inspection stamp: - 32 -... - Page 35 Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 36 Download App Follow wechat account Customer Service Center：4000-1000-12 0755-2572-2469...
