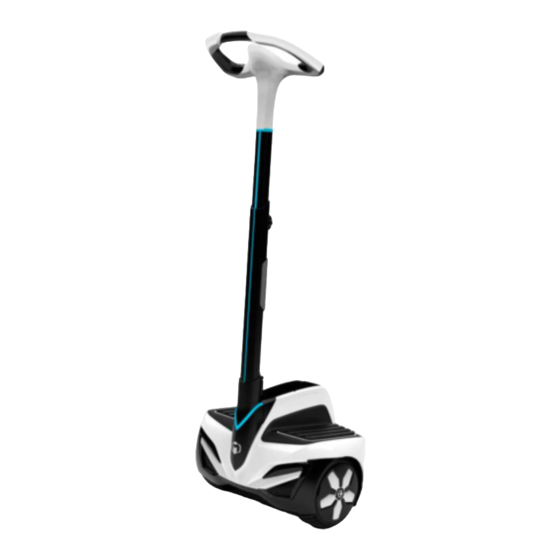

INMOTION SCV R1EX
INMOTION SCV R1EX
INSTRUCTIONS MANUAL
68

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCV R1EX and is the answer not in the manual?

Questions and answers

Related Manuals for InMotion SCV R1EX

Summary of Contents for InMotion SCV R1EX

  • Page 1 INMOTION SCV R1EX INMOTION SCV R1EX INSTRUCTIONS MANUAL...

  • Page 2: About This Manual

    About This Manual This User Manual is intended to help you set up and use your INMOTION SCV. You need to read this Manual carefully, watch the Safety Videos and make sure that you follow the safety instructions when using your INMOTION SCV. It is important that you adhere to all safety Warnings and Cautions that appear throughout this User Manual.

  • Page 3: Related User Materials

    Sections 2.5 Assembling the INMOTION SCV and 4.3 Charging the INMNOTION SCV in this Manual. 1.4. Related User Materials INMOTION provides an electronic copy of the User Manual, Safety Videos, and help documents for your convenience. You can download these electronic files as well as the INMOTIONS SCV Smartphone App from www.imscv.com.

  • Page 4: General Information

    2. General Information 2.1. Product Dimensions...

  • Page 5: Inmotion Scv Serial Number

    2.2. INMOTION SCV Serial Number The serial number is unique to your INMOTION SCV. Please write it down and store it in a safe place. The serial number is a 16-digit number printed along with the barcode on your INMOTION SCV.

  • Page 6: How The Inmotion Scv Works

    The INMOTION SCV works like the human body. When walking, if you lean forward, you take a step forward to keep your balance. If you lean back, you step back. On an INMOTION SCV when you lean forward or back the machine powers the Wheels in the direction that you lean.

  • Page 8: Inmotion Scv Components

    2.4. INMOTION SCV Components...

  • Page 9: Assembling The Inmotion Scv

    Never attempt to stand on an INMOTION SCV without the Turning Shaft properly attached. Using your INMOTION SCV without all parts properly installed could damage your INMOTION SCV and result in serious injury from loss of control, collisions, and falls.
  • Page 10 2.5.2. Assembling the INMOTION SCV...
  • Page 11 4. Press the Reset Button on the back of the SCV, and power on the INMOTION SCV using the SmartKey. If necessary, especially when you need to put the INMOTION SCV in the trunk of your car, the Turning Shaft and the Handlebar can be quickly removed by unlocking the Quick Release Lock.
  • Page 12 Press the third button (Mode Shift Button) to activate the SmartKey and to start pairing it with the INMOTION SCV. There is a micro USB port at the bottom of the SmartKey. Use this port to connect to your PC to see information about your SCV or to charge your SmartKey.
  • Page 13 The SmartKey is small and portable. Dock it on the INMOTION SCV to view riding data during your journey. The SmartKey is paired with the INMOTION SCV when leaves the factory. If you need help with your SmartKey please contact INMOTION IBERIA.
  • Page 14 Appears when the SmartKey INMOTION SCV. cannot detect the INMOTION SCV. INMOTION Logo Icon: Appears when the SmartKey is being powered on or off using the SmartKey Manned Speed Mode Icon: Indicates Assist Mode Icon: Indicates that the that the INMOTION SCV detects a INMOTION SCV is in Assist Mode.
  • Page 15 USB icon: Indicates that the Speed Mode icon: Indicates that the INMOTION SCV is plugged in to a INMOTION SCV is in Speed Mode. USB port. Wrench icon: Indicates a system fault Training Mode icon: Indicates that the on the INMOTION SCV that requires INMOTION SCV is in Training Mode.
  • Page 16 2.6.2. SmartKey Functions Power on the SmartKey by pressing Button C (Shift). The SmartKey will automatically pair with your INMOTION, as long as they are within the effective communication range. The SmartKey has the following functions: power on/off the INMOTION SCV, lock/unlock the INMOTION SCV, power on/off the SmartKey, pair, enter/exit Shift Mode, and enable LED backlighting.
  • Page 17 Press and hold Shift button for 2 Enter Shift Mode Enter Shift Mode seconds (C) Press and hold Power/Stand by Button and Shift button together Illuminate the Backlight Illuminate the Backlight for 2 seconds (A/C) Shift Mode Button State Unpair Power on Power off Standby...
  • Page 18 NOTES: “N/A” indicates no function will be triggered. ● The INMOTION SCV will only accept commands from the SmartKey when nobody is riding it. After 30 seconds of non- ● use, SmartKey, the SmartKey backlight will turn off. The SmartKey will power off after different periods of time under the below conditions: ●...

  • Page 19: Info Led And Sound Prompt

    2.7. Info LED and Sound Prompt 2.7.1. Info LED The Info LED display screen shows the running states of the INMOTION SCV. Here below shows the Wi-Fi version.
  • Page 20 Here below shows the Bluetooth version.
  • Page 21 INMOTION SCV detects a rider, and is in Speed Mode Manned Training Mode icon: Indicates that Remote Control Mode icon: Indicates that the the INMOTION SCV detects a rider, and is in INMOTION SCV is in Remote Control Mode. Training Mode. Error icon: Indicates an INMOTION SCV Lock Mode icon: Indicates that the INMOTION system fault.
  • Page 22 0 bar and 1 bar: Red, the gauge flashes to warn low battery ● Panel icon: Bar 1, 3 and 5 flash in blue when the INMOTION SCV is in ● Standby Mode. Under Balance Mode, Assist Mode or Remote Control Mode, the ●...

  • Page 23: Working Mode

    The built-in speaker on the INMOTION SCV will make different sounds to indicate running state and working mode. The Sound Prompt is on by default. You can turn off the tone or customize the sounds using the INMOTION Smartphone App. See Section 2.12, Smart phone App, for more information.
  • Page 24 Assist Mode Under Assist Mode, the INMOTION SCV will provide a small amount of power to allow the SCV to be easily dragged. You can choose different reference points when entering Assist Mode. For more information about Assist Mode, please refer to Section 3.4 Assist Mode.
  • Page 25 2.8.2. State Transition Diagram Among Working Modes...

  • Page 26: The Front/Tail Light

    2.9. The Front/Tail Light The Front Light of the INMOTION SCV is a pair of blue LED lights, and the Tail Light is a pair of red LED lights. They flash in different modes according to your operation. The following chart shows different modes of the Front and Tail Light:...

  • Page 27: Communication And Charging Port

    INMOTION SCV will connect to the recognized AP; if no match is found, the INMOTION SCV will switch to AP mode and wait for other devices to connect. For the first startup, the INMOTION SCV will only start in AP mode since the AP list is empty.
  • Page 28 Search for other INMOTION SCV riders around you ● Set up a safe area for the INMOTION SCV to be ridden in. If the INMOTION SCV leaves this area it will go into error ● mode and lock itself. Only when it is returned to the designated area or the Area Lock Function is manually turned off will the...

  • Page 29: Usb Charging Port

    2.12. Smartphone App* Download the INMOTION App from our website, Apple App Store for iOS devices, or Google Play for Android devices. (The INMOTION App may not be officially available when you purchase the product, it will come to you region soon).
  • Page 30 Use the App to: Show the operational state of the INMOTION SCV, and information including speed, mileage, and battery life ● Set vehicle parameters including Wi-Fi, GPS, and Speed limit ● Query the Event Log ● Upgrade the INMOTION SCV firmware ●...

  • Page 31: Riding Your Inmotion Scv

    Safety Cautions The following steps will help you to learn to ride your INMOTION SCV. It is important that you practice riding in a controlled, familiar environment until you are comfortable using your INMOTION SCV and SmartKey. Before riding, make sure your INMOTION SCV is properly assembled and fully charged.
  • Page 32 You will hear a Voice Prompt from the INMOTION SCV that indicates the INMOTION SCV is in Training Mode (please make sure the INMOTION SCV is in Training Mode for your first ride), and an icon will appear on the LED Screen to indicate that the power is ON and the INMOTION SCV is in Standby Mode.
  • Page 33 • Before you attempt to step on for the first time, have your helper stand facing you in front of the INMOTION SCV, holding the Handlebar securely with both hands. Your helper should be prepared to firmly hold the INMOTION SCV to keep it from moving.
  • Page 34 If you are standing on the INMOTION SCV now, please keep the Footboard Mat horizontal and stand still. Do not move before you are familiar with it. 3.1.5. Moving Forward and Backward The INMOTION SCV moves forward and backward in response to changes in your position. When standing on the Footboard Mat, to move forward or backward: •...
  • Page 35 3.1.6. Stopping Stop the INMOTION SCV by shifting your weight away from the direction you are moving. To stop the INMOTION SCV: • When you are moving forward, gently shift your hips back (as if you are preparing to sit down) to bring the INMOTION SCV to a stop.
  • Page 36 3.1.7. Turning the INMOTION SCV The INMOTION SCV turns in the direction that you lean the Handlebar. You turn the INMOTION SCV by leaning the Handlebar left or right. • First, practice turning in place. To turn in place, slowly pivot the Handlebar in the direction that you want to turn. The INMOTION SCV will rotate so that you turn in place.
  • Page 37 3.1.8. Stepping Off When you are ready to step off the INMOTION SCV for the first time, your helper should hold the Handlebar. To step off the INMOTION SCV: • Remain stationary by keeping your weight centered over the Wheels and Footboard Mat and keep the Handlebar vertical.

  • Page 38: Practice Riding

    Lock Mode is intended for use when you remain in close proximity to the INMOTION SCV, and are able to respond to ● an alarm. The best way to discourage tampering with your INMOTION SCV is to keep it in a secure indoor location with the SmartKey stored separately.

  • Page 39: Training Mode And Speed Mode

    3.3. Training Mode and Speed Mode Training Mode is used by new riders to learn how to control the INMOTION SCV better and more safely; Speed Mode is designed to create a better riding experience for skillful riders. The following chart shows the differences between Training Mode...

  • Page 40: Assist Mode

    See Section 2.6 SmartKey for more information on how to activate Assist Mode. 3.5. Remote Control The INMOTION SCV is just like a robot in Remote Control Mode. It can go forward, backward, turn, and stop with orders from the INMOTION App with Auto Walk function.

  • Page 41: Self-Check Mode

    3.6. Self-check Mode Self-check Mode allows you to run a thorough examination of your INMOTION SCV to see if any parameters have shifted after a period of operation. The INMOTION SCV will run tests under Self-check Mode and store the resulting data. Refer to Section 2.7 Info LED and Voice Prompt for more information.

  • Page 42: Safety Alerts

    3.7. Safety Alerts The INMOTION SCV is equipped with multiple safety alerts. It is important to understand these alerts before you attempt to ride your INMOTION SCV. 3.7.1. Speed Limiter When you approach the maximum allowed speed for a given situation, the INMOTION SCV will push the handlebar back to slow you down.
  • Page 43 You have approximately 14 seconds from the start of a Safety Shutdown to come to a controlled stop and step off. After 14 seconds, the INMOTION SCV will immediately shut down when the Wheels reach zero speed.
  • Page 44 3.7.3. Shaft Vibration Warning One of the ways that the INMOTION SCV notifies you when you are at risk of falling is by vibrating and releasing a warning sound. The following chart shows situations that trigger a Shaft Shake Warning, and recommended actions:...

  • Page 45: Environmental Factors Affecting The Vehicle's Performance

    The temperature of the components (including the Motor, Battery Pack, Riding System, etc.) is raised when riding the INMOTION SCV in warm weather. This could affect the INMOTION SCV’s service life. If the components get excessively hot (≥50℃) while riding the INMOTION SCV will slow down automatically. The hotter the components are, the lower the speed...
  • Page 46 If the components get very hot (≥80℃) while riding, the INMOTION SCV may activate a safety alert. You should stop riding immediately and wait until the components cool off before you continue your ride. 3.8.3. Riding in Cold Temperatures Too low temperatures will deteriorate component lubrication and increase resistance.

  • Page 47: Using The Battery Pack

    Follow the instructions for charging and storage, otherwise the Battery Pack could fully discharge over time, causing permanent damage. Charging time for the INMOTION SCV is about 3.5 hours. The charger will power off automatically after the Battery Pack is fully charged.
  • Page 48 Keep the Battery Pack in a cool, dry place when storing. Do not put any conductive object into the Charge Port. It may damage electronic devices inside the INMOTION SCV. Do not attempt to open the Battery Pack. There are no user serviceable parts inside.

  • Page 49: Specifications For The Battery Pack

    4.3. Charging the INMOTION SCV To maximize the performance of your INMOTION SCV Battery Pack, fully charge your Battery Pack for 3.5 hours, and charge it once a month or every 2 days after riding. Charge the Battery Pack only when it is within the specified charging...
  • Page 50 4.3.1. Charging Procedures To charge the Battery Pack: 1. Open the Charge Port of your INMOTION SCV. Verify that the Charge Port is dry. 2. Plug one end of the Power Cord into the Charge Port of your INMOTION SCV with the INMOTION LOGO on the charger facing up.

  • Page 51: Replacing The Battery Pack

    4.4. Replacing the Battery Pack The INMOTION SCV Battery Pack can be used about 500 times, depending on which type of Battery Pack you use. After subsequently, the Battery capacity will reduce to 80%. Replace the Battery Pack to ensure the best performance of the INMOTION SCV.

  • Page 52: Transporting Battery Pack

    4.5. Transporting Battery Pack When transporting your INMOTION SCV, protect the Battery Pack to avoid damage during shipment. Do not expose the Battery Pack to direct heat or moisture, and avoid heavy vibration during transportation. Do not use or transport a Battery Pack if the casing has broken open.

  • Page 53: Safe Riding

    Wear proper clothing. Do not wear sharp jewelry or high heels to avoid damage or injury. ● The INMOTION SCV’s payload range is between 25 Kg and 100 Kg. Do not attempt to ride if you are beyond this weight ●...

  • Page 54: Actions You Must Avoid

    ● performance and can cause damage. Do not ride the INMOTION SCV on slippery roads or in bad weather conditions, such as heavy rain, heavy snow, or ice. ● Do not ride the INMOTION SCV on uneven roads that are full of sticks, trash or stones.
  • Page 55 2 seconds, which is not a failure but a protection. Do not force restart the INMOTION SCV when it shuts off automatically or when the battery ran out, or it will cause ●...
  • Page 56 ● as this may cause you to fall. Please step off of the INMOTION SCV and charge the Battery Pack when the INMOTION SCV has a low battery. ● Do not park the INMOTION SCV in places where traffic will be blocked.

  • Page 57: Operating And Maintaining Your Inmotion Scv

    Lift your INMOTION SCV using the Rubber Handle on the Turning Shaft. 6.1.2. Lifting your INMOTION SCV by the Metal Grip Lift your INMOTION SCV using the Metal Grip when you need to carry it for long distances, or are carrying it without the Turning Shaft attached.

  • Page 58: Cleaning Your Inmotion Scv

    Don’t allow water to get into the Charging Port. ● The INMOTION SCV is rated IP55 and protects against dust. It is not waterproof, and should not be cleaned using a hose. Water may cause permanent damage to the INMOTION SCV.

  • Page 59: Troubleshooting The Inmotion Scv

    Do not attempt to open the ABS Shell, circuit board or gear box. There are no user serviceable parts inside. Opening the ABS Shell could void the warranty, damage your INMOTION SCV and render it unsafe to use. 7. Troubleshooting the INMOTION SCV You can troubleshoot certain problems with your INMOTION SCV before contacting INMOTION IBERIA Customer Care.

  • Page 60: Common Faults

    If you’re experiencing a problem with your INMOTION SCV, first check the error data on your smartphone App. Please refer to the help section on INMOTION applications and review the specific content for resolving your problem. If you are still unable to resolve the problem, please contact INMOTION IBERIA Customer Care at rma@inmotioniberia.com.

  • Page 61: The Inmotion Scv Cannot Power On

    Reduce speed before stepping off SCV exits Balance Mode Locked and move The angle or the position has changed while Move or use the INMOTION SCV only after it is the INMOTION SCV is in Lock Mode unlocked Battery Access You are not using an INMOTION Battery Use only the INMOTION Battery Pack.

  • Page 62: The Inmotion Scv Cannot Enter Balance Mode

    ● foot. If the INMOTION SCV still cannot enter Balance Mode, check to see if there is an error icon on your SmartKey. ● If the INMOTION SCV still cannot power on, remove the Battery Pack and then reinsert it.

  • Page 63: The Inmotion Scv Cannot Power Off

    • If the INMOTION SCV is set to use a Dynamic IP Address, please be aware that it may take 1~2 minutes to get the IP address. (Make sure you are connected to a DHCP server that can effectively distribute IP addresses.) •...

  • Page 64: Contact And Legal Information

    8.1. Response to the problems • Please contact us if you or someone around you has any trouble or suggestion during the INMOTION electric scooter use. We will thoughtfully listen your opinion and we will serve you with enthusiasm. •...

  • Page 65: Product Maintenance

    According to the right warranty policy and according to the Spanish legislation, the warranty of INMOTION IBERIA products lasts 2 years from the purchase date, except the battery period that will last 6 months and the wheel(s), which will be guaranteed just the first month after the purchase date.
  • Page 66 • Modification, alteration or deliberated substitution of the original contents in the bill or purchase justification. • Loss or absence of the purchase invoice. • Manipulation or reparation by people or agents not authorized by INMOTION IBERIA. •Manipulation or modification of the serial identifying number of the product without justified case.
  • Page 67 Inmotioniberia.com. The customer must check the products immediately after its reception and then inform to INMOTION IBERIA in case there is something wrong. The client can send an email to rma@inmotioniberia.com or also call at the specified number above. The client is able to make any product complain or reclamation in-between the 14 natural days after the delivery.
