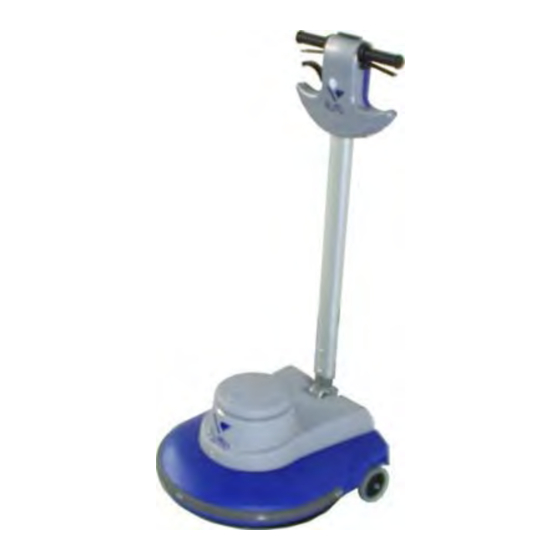

Nacecare NR1520 Owner's Manual
  1. Manuals
  2. Brands
  3. Nacecare Manuals
  4. Floor Machine
  5. NR1520
  6. Owner's manual

Nacecare NR1520 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

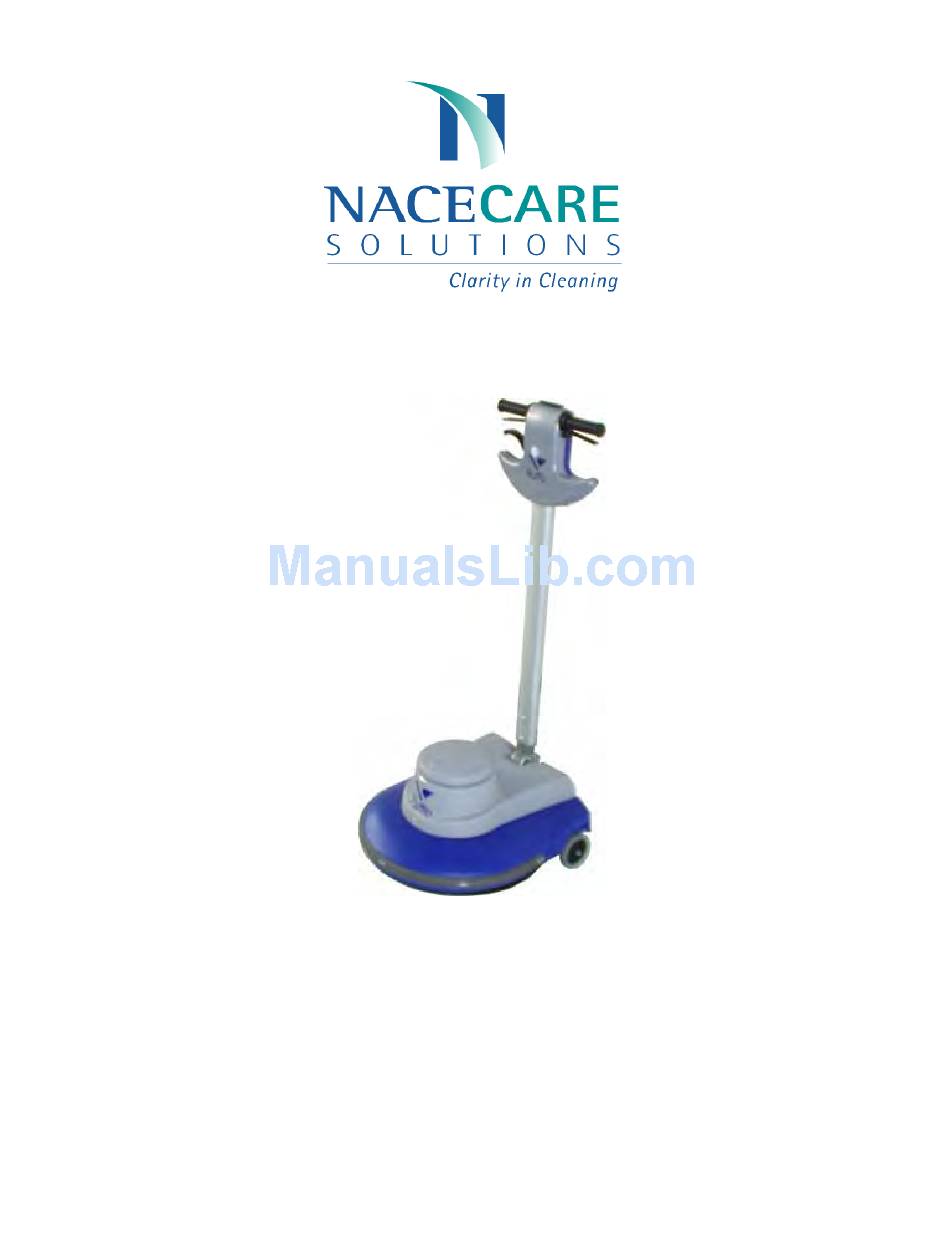

NR1520
OWNERS MANUAL
ATTENTION! DO NOT USE THE MACHINE WITHOUT HAVING READ THE INSTRUCTIONS CAREFULLY
NaceCare Solutions
1205 Britannia rd E.
Mississauga, ON, Canada
L4W 1C7
Tel: 1 800 387 3210
Fax: 1 800 709 2896
Visit us on the web:
www.nacecare.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR1520 and is the answer not in the manual?

Questions and answers

Related Manuals for Nacecare NR1520

Summary of Contents for Nacecare NR1520

  • Page 1 NR1520 OWNERS MANUAL ATTENTION! DO NOT USE THE MACHINE WITHOUT HAVING READ THE INSTRUCTIONS CAREFULLY NaceCare Solutions 1205 Britannia rd E. Mississauga, ON, Canada L4W 1C7 Tel: 1 800 387 3210 Fax: 1 800 709 2896 Visit us on the web:...
  • Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLY OF HANDLE (NR1520) Put the handle in vertical position, place its support on the four holes and insert all the four bolts (M8). Tighten the bolts one at the time, using a wrench to hold the lock nuts in place.

  • Page 3: Table Of Contents

    SUMMARY SUMMARY .........................3 UPON DELIVERY OF THE MACHINE ..................4 TECHNICAL DATA ......................5 MACHINE PREPARATION ....................6 ABRASIVE PAD DRIVER ASSEMBLY........................... 6 MACHINE PREPARATION ....................7 GENERAL SAFETY RULES ....................8 WORK ..........................9 PREPARATION MANOEUVRE OF THE MACHINE ......................9 PREPARATION:MANOEUVERING THE MACHINE......................9 MANOEUVRING THE MACHINE ............................

  • Page 4: Upon Delivery Of The Machine

    Upon delivery of the machine When the machine is received, ensure to check that all components are in the box and that the machine has not been damaged in transport. This machine has been designed for use on hard floors. Any use of the machine, other than the recommended use is dangerous and could cause injury to the operator.

  • Page 5: Technical Data

    TECHNICAL DATA NR1520 Unit INCH 21.25” Washing width INCH 24” Machine length INCH 11.8” Machine height (motor) INCH 50” Machine height (handle) 1500 Rounds Per Minute Voltage 1100 Motor power Frequency Weight Cable length INCH 4” Ø wheels...

  • Page 6: Machine Preparation

    MACHINE PREPARATION PREPARING THE MACHINE FOR FIRST USE Upon delivery of the machine, please ensure that the owner’s manual is read thoroughly. If there is multiple users for the machine, ensure that they have a full understanding of how to use the machine in a safe manner.

  • Page 7: Machine Preparation

    MACHINE PREPARATION WARNING: Use only high-speed pads. Using any other pads other than ones recommended for high speed could be dangerous and cause bodily harm or damage to the floor.

  • Page 8: General Safety Rules

    When using this machine, the area of use should be blocked off and have signs indicating that the floor is wet. If you experience problems with this machine, bring it to the closest service centre. ONLY a NaceCare Solutions service centre is authorized to perform repairs on this machine.

  • Page 9: Work

    WORK PREPARATION MANOEUVRE OF THE MACHINE PREPARATION:MANOEUVERING THE MACHINE By pulling the lever (A) lower the handle until the arms of the user are lightly bent. Using your thumb, push down on the safety lever (B) and then engage the motor with the two levers (C). The safety lever (A) must be pressed down every time before starting.

  • Page 10: Upon Completion Of Work

    UPON COMPLETION OF WORK DISASSEMBLY OF BRUSH/PAD DRIVER To remove the abrasive pad, Lay the machine on the floor so it is resting on the handle. With the appropriate handle unscrew (counter clockwise rotation) the lock nut, Remove the abrasive pad from the flange. Insert the lock nut after the pad is removed.

  • Page 11: Trouble Shooting Guide

    NaceCare Solutions service centre. CARBON BRUSH WEAR INDICATOR The machine is equipped with a sensor for the Carbon- brushes. When the red light is illuminated (see “drawing”) carbon brushes need replaced. ONLY AUTHORIZED NaceCare Solutions SERVICE CENTRES MAY PERFORM SERVICE ON THESE MACHINES.
