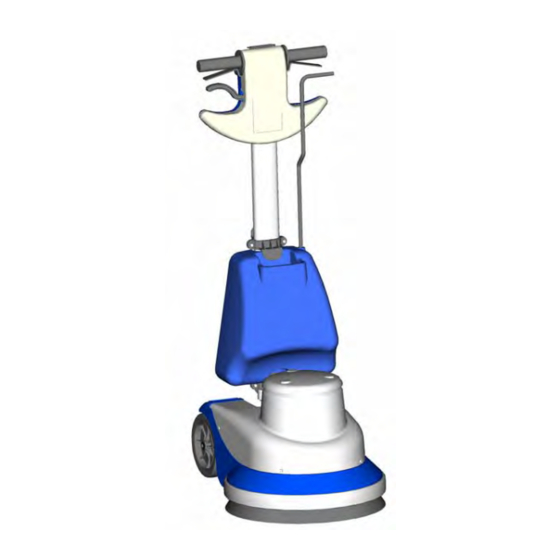

Nacecare NR17 Owner's Manual
  1. Manuals
  2. Brands
  3. Nacecare Manuals
  4. Floor Machine
  5. NR17
  6. Owner's manual

Nacecare NR17 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

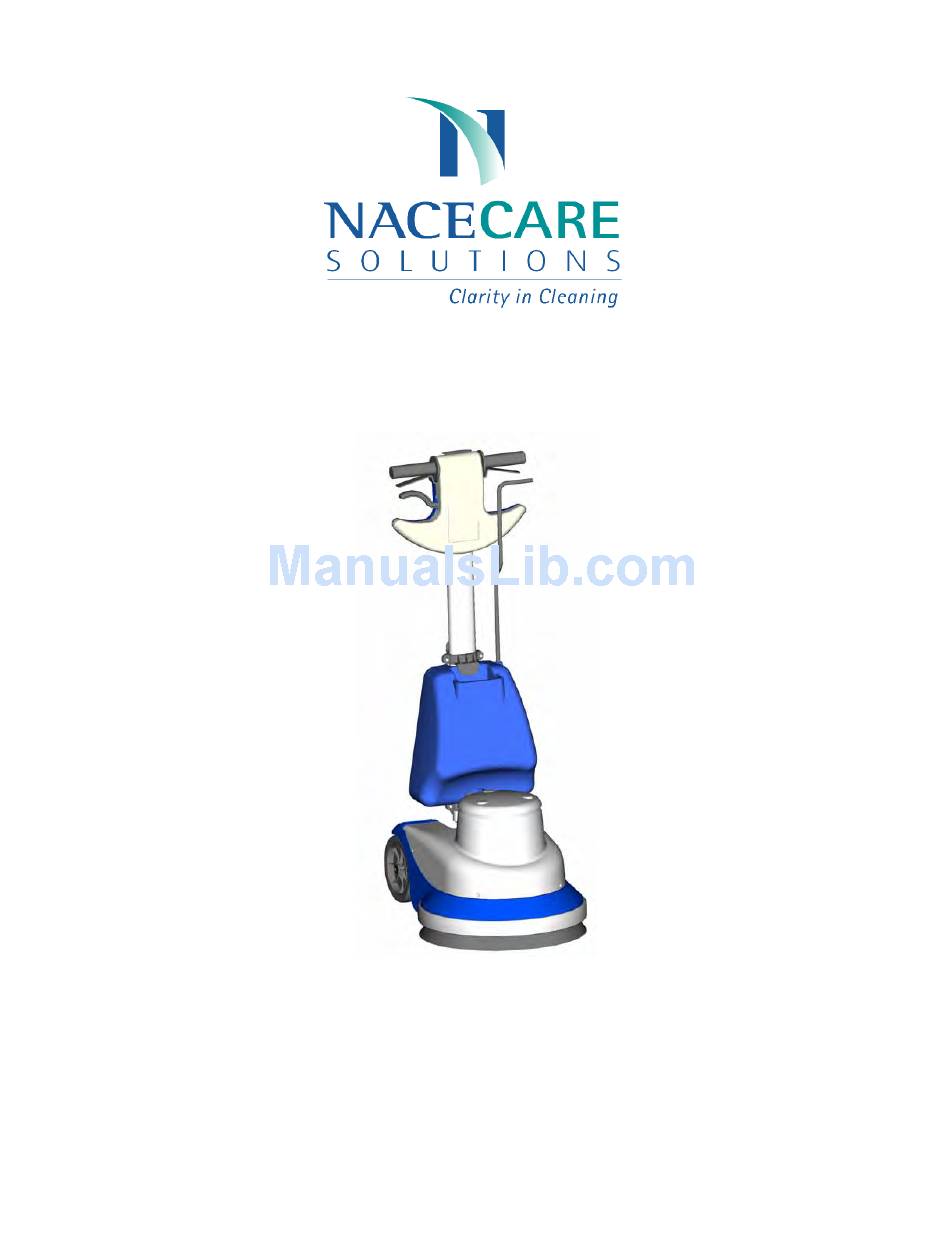

NR17/NR20
OWNERS MANUAL
ATTENTION! DO NOT USE THE MACHINE WITHOUT HAVING READ THE INSTRUCTIONS
NaceCare Solutions
1205 Britannia rd E.
Mississauga, ON, Canada
L4W 1C7
Tel: 1 800 387 3210
Fax: 1 800 709 2896
Visit us on the web:
www.nacecare.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NR17 and is the answer not in the manual?

Questions and answers

Related Manuals for Nacecare NR17

Summary of Contents for Nacecare NR17

  • Page 1 NR17/NR20 OWNERS MANUAL ATTENTION! DO NOT USE THE MACHINE WITHOUT HAVING READ THE INSTRUCTIONS NaceCare Solutions 1205 Britannia rd E. Mississauga, ON, Canada L4W 1C7 Tel: 1 800 387 3210 Fax: 1 800 709 2896 Visit us on the web:...
  • Page 2 ASSEMBLY INSTRUCTIONS ASSEMBLING THE HANDLE AND TANK NR17/NR20 Put the handle in vertical position, place its support on the four holes and insert all the screws. Insert the four lock nuts (M8) in the slots placed under the frame. Tighten the bolts one at the time, keeping the four lock nuts in the slots.
  • Page 3 ASSEMBLY INSTRUCTIONS Insert the tank on lower bracket and lower the top bracket until it is resting on the tank. Tighten the bolt on the top bracket with the hand know. Connect the handle cable with the motor cable and the solution tube in the suitable hole placed on the left side of the frame.

  • Page 4: Table Of Contents

    SUMMARY SUMMARY .........................2 DELIVERY OF THE MACHINE ....................3 TECHNICAL DESCRIPTI0N ....................4 MACHINE PREPARATION ....................5 WATER TANK ASSEMBLY ..............................5 BRUSH/PAD DRIVER ASSEMBLY ............................5 MACHINE PREPARATION ....................6 GENERAL SAFETY RULES ....................7 WORKING WITH THE MACHINE ..................8 PREPARING THE MACHINE ..............................8 USING THE MACHINE ................................

  • Page 5: Delivery Of The Machine

    The delivery of the machine When the machine is received, ensure to check that all components are in the box and that the machine has not been damaged in transport. This machine has been designed for use on hard floors. Any use of the machine, other than the recommended use is dangerous and could cause injury to the operator.

  • Page 6: Technical Descripti0N

    TECHNICAL DATA NR17 NR20 Unit INCHES 17” 20" Machine width INCHES 23.5” 25” Machine length INCHES 14” 14” Machine height (motor) INCHES 47” 47” Machine height (handle) Brush RPM Voltage 1100 1100 Motor power Frequency Weight Power cable length INCHES 7”...

  • Page 7: Machine Preparation

    MACHINE PREPARATION PREPARING THE MACHINE FOR FIRST USE Upon delivery of the machine, please ensure that the owner’s manual is read thoroughly. If there is multiple users for the machine, ensure that they have a full understanding of how to use the machine in a safe manner.

  • Page 8: Machine Preparation

    WARNING: Use only brushes and pad drivers delivered with the machine or recommended by NaceCare Solutions. The use of different products may compromise safety. WARNING: The brushes with PPL or NYLON bristles and abrasive discs must only be used for cleaning with water and chemicals on hard floors.

  • Page 9: General Safety Rules

    When using this machine, the area of use should be blocked off and have signs indicating that the floor is wet. If you experience problems with this machine, bring it to the closest service centre. ONLY a NaceCare Solutions service centre is authorized to perform repairs on this machine.

  • Page 10: Working With The Machine

    WORK PREPARATION:MANOEUVERING THE MACHINE By pulling the lever (A) lower the handle until the arms of the user are lightly bent. Using your thumb, push down on the safety lever (B) and then engage the motor with the two levers (C). The safety lever (A) must be pressed down every time before the starting.

  • Page 11: On Completion Of Work

    ON COMPLETION OF THE WORK DISASSEMBLY OF BRUSH/PAD DRIVER During storage, the machine must never rest on the brush or on the pad. The machine weight could permanently damage them. To remove the brush, tilt the machine backwards, With your thumb push down on the safety switch and then pull on the motor levers with short impulses until the pad driver/brush drops off of the machine.

  • Page 12: Trouble Shooting Guide

    Check that the circuit breaker on the rear of the handle has not tripped. If the circuit breaker trips repeatedly, contact you nearest NaceCare Solutions service centre. THE MACHINE VIBRATES AND SWINGS If the machine has been stored in the upright position with the pad/brush on it, the pad/brush may have been deformed by the weight of the machine.
