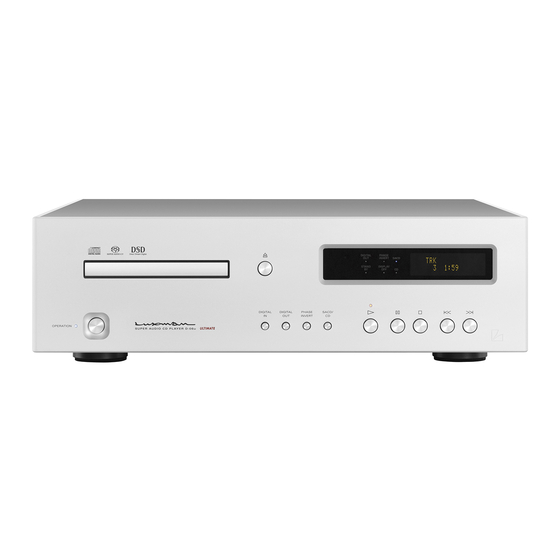

Super audio cd player
Hide thumbs Also See for D-06u:
Table of Contents

Advertisement

Quick Links

Download this manual
SUPER AUDIO CD PLAYER
D-06u
Owner`s Manual

Advertisement

Table of Contents
loading

Related Manuals for Luxman D-06u

Summary of Contents for Luxman D-06u

  • Page 1 SUPER AUDIO CD PLAYER D-06u Owner`s Manual...

  • Page 3: Table Of Contents

    SUPER AUDIO CD PLAYER D-06u Contents Precautions ············································································································· 1 Features of This Unit ································································································ 3 About Discs This Unit Can Play Back ······································································· 7 Before Use ·············································································································· 9 Names and Functions ···························································································· 11 Connections ·········································································································· 21 How to Play Back Discs ························································································ 23 Stop/pause the Playback ·······················································································...

  • Page 4: Precautions

    Precautions DO NOT move this unit during playback. To avoid heat emission During playback, the disc is rotating at high speed. Do not try Do not place this unit on such device as an amplifier that may to lift or move this unit as the disc may be damaged. Other- emit heat.

  • Page 5: Lens Cleaning

    SUPER AUDIO CD PLAYER D-06u How to handle discs Lens cleaning • Do not use any deficient disc (with cracks, warp, etc.). If the lens is dusty, sound skips may take place. Please read • Do not damage the signal surface of the disc or grime it.

  • Page 6: Features Of This Unit

    Features of This Unit — 2-channel-specific Super Audio CD/CD Compatible Player LxDTM — LuXman original Disc USB input that is applicable to 384kHz / Transport Mechanism — 32 bit This unit is equipped with a robust transport block. The trans-...

  • Page 7: Zoom Function

    SUPER AUDIO CD PLAYER D-06u Low phase noise crystal oscillator 32 bit digital filter This unit uses an oscillator with low noise near the oscillating Thanks to the dedicated digital filter with 32 bit arithmetic pro- frequency. cessing, inputs of 44.1 kHz/88.2 kHz/176.4 kHz are upsam- This oscillator provides clocks with less jitter.

  • Page 8: Digital Output Off

    Features of This Unit Digital input terminals Digital output OFF This unit is equipped with a coaxial input terminal and an op- The digital audio output can be deactivated to improve the tical input terminal. quality of analog audio output. This unit is compatible with S/PDIF format signals between Analog output terminals 32 kHz and 192kHz.
  • Page 9 SUPER AUDIO CD PLAYER D-06u Introduction of original technologies High-inertia power supply Our traditional round pattern board, OFC internal wiring, and High-inertia power supply circuit that combines a large-ca- original custom-made parts are fully and luxuriously intro- pacity CI-core-type power transformer with customizable duced.

  • Page 10: About Discs This Unit Can Play Back

    About Discs This Unit Can Play Back Types of discs that can be played Super Audio CD — 3 types of discs — The following marks are printed on disc labels, packages, or CD jackets. • Single-layer CD Marks for types of discs this unit can play back This is a disc which has a single Super Dummy layer SACD...
  • Page 11 SUPER AUDIO CD PLAYER D-06u Comparison of Super Audio CDs with CDs Item Super Audio CD Disc diameter (cm) Disc thickness (mm) Coding method 1-bit direct stream digital (DSD) 16-bit linear PCM Sampling frequency 2.8224 MHz (64 times to CDs) 44.1 kHz...

  • Page 12: Before Use

    Before Use Check the accessories. How to Use Remote Control After unpacking, check if the following accessories are not Insert batteries into the remote control. missing. 1. Remove the battery cover on the rear of the remote control. • Power cable Put your finger on the battery cover claw and slide the cover •...
  • Page 13 SUPER AUDIO CD PLAYER D-06u Remote control's range The remote control can be used by pointing at the remote control infrared receiver on the front panel of main unit. The effective distance is approx. 5 m from the main unit and 30°...

  • Page 14: Names And Functions

    Names and Functions Front panel 9 10 13 14 15 16 1. Operation switch (OPERATION) 6. Display window Turns this unit from the standby state to operation state. Displays the operation status of this unit. When the main power switch on the rear panel is turned on This display is composed of 6 indicators and display tube.

  • Page 15: Play Indicator

    SUPER AUDIO CD PLAYER D-06u 9. Phase invert changeover switch 16. Next switch ( d ) (PHASE INVERT) When this switch is pressed, the playback jumps to the be- ginning of next track. The phase of the analog output on the rear panel is inverted.
  • Page 16 Names and Functions Display window 1. Remote control infrared receiver (R) 4. Super Audio CD/CD indicator (SACD/CD) Receives the infrared signals from the remote control. SACD indicator lights up when playing back the HD (or 2. Digital output indicator (DIGITAL OUT) SACD) layer of Hybrid Super Audio CD Lights up when digital audio output is ON.

  • Page 17: Playback Mode

    SUPER AUDIO CD PLAYER D-06u 6. Time display mode The display mode of time is displayed. "REM" is displayed when showing the remaining time of current track. "T-REM" is displayed when showing the total remaining time of disc. This display area does not light up when showing the elapsed time of track.
  • Page 18 Names and Functions Remote control 1. Operation switch (OPERATION) 3. Digital filter selection switch (FILTER PCM) Turns this unit to the operating state after turning off the standby indicator at the standby state. Pressing this switch This switch changes the interpolation function of the 32 bit again at the operating state turns the unit to the standby digital filter while a CD or PCM data is reproduced.
  • Page 19 SUPER AUDIO CD PLAYER D-06u P-1 (normal FIR filter) 4. Analog FIR filter selection switch (FILTER DSD) This switch changes the analog FIR filter while a Super Au- dio CD (HD layer) or a DSD file is reproduced. You can hear a change in sound quality, and therefore, se- lect a filter depending on your taste.
  • Page 20 Names and Functions Remote control 5. Program switch (PROGRAM) 10. Time display switch (TIME) Programs the track numbers to play back in a desired order. Switches the time display. Switches the elapsed time of current track, remaining time of current track, or remaining 6.
  • Page 21 SUPER AUDIO CD PLAYER D-06u 14. Repeat switch (REPEAT) This switch is pressed to perform repeat playback. There are two types of repeat playback: track repeat (T-REP) and all repeat (A-REP). 15. Random switch (RANDOM) This switch is pressed to perform random playback.

  • Page 22: Rear Panel

    Names and Functions Rear panel 5 6 7 1. Analog unbalance output terminals 3. Optical digital input terminal (OPT) (LINE) When using this unit as a D/A converter, transmit digital sig- nals from a CD player or the like that has a digital output Coaxial output terminals to provide unbalanced playback terminal to this unit using an optical digital cable.
  • Page 23 SUPER AUDIO CD PLAYER D-06u 4. USB digital input terminal (USB) 7. Coaxial digital output terminal (COAX) This is a USB (B-type) input terminal used for the digital Connect this terminal to such device as an amplifier that input signal from such device as a PC/Mac using a USB has a digital input terminal using an coaxial digital cable.

  • Page 24: Connections

    Connections DVD PLAYER PC／Mac CD/SACD PLAYER * When the OS is Windows, the dedicated ( C ) ( B ) driver software needs to be installed. ( A ) D/A CONVERTER ( D ) ( E ) ( F ) CD PLAYER PRE AMP PRE MAIN AMP...
  • Page 25 SUPER AUDIO CD PLAYER D-06u Before Connecting 2. Digital connection from such device as a CD player (Refer to "B" and "C" in the connection diagram.) Before connecting other devices, connect the jack side of the Connect between the (coaxial or optical) digital output termi- accessory power cable to the AC inlet of this unit.

  • Page 26: How To Play Back Discs

    How to Play Back Discs 2, 4 2, 4...
  • Page 27 SUPER AUDIO CD PLAYER D-06u Playback a disc. • Remote control Main unit 1. Press the OPERATION switch. "-OPERATION-" appears on the display. When the indica- tion disappears, the unit becomes operable. 2. Press the open/close ( ) switch. The disc tray opens.

  • Page 28: Stop/Pause The Playback

    Stop/pause the Playback Operation switch Open/close switch ( Play switch ( Pause switch ( Stop switch ( ) Operation switch Open/close switch ( Play switch ( Stop switch ( ) Pause switch (...
  • Page 29 SUPER AUDIO CD PLAYER D-06u Pause/stop the playback of the disc. • Remote control Main unit How to pause playback 1. Press the pause ( ) switch. During pause, the play indicator blinks. Resumes the regular playback. 2. During pause, press the play ( ) or pause ( ) switch.

  • Page 30: Skip/Fast-Forward/Rewind

    Skip/Fast-forward/Rewind Previous switch ( Next switch ( Play switch ( Rewind switch ( Fast-forward switch ( Play switch ( Next switch ( Previous switch (...
  • Page 31 SUPER AUDIO CD PLAYER D-06u Skips to the desired track. Fast-forward/rewind the playback. (Skip playback) (Scan) • Remote control Remote control Main unit Skip playback Fast-forward the playback. Skip to the track to play back. 1. During playback, press the fast-forward ) switch.

  • Page 32: Direct Search/Repeat Playback

    Direct search/repeat playback Repeat switch Numeric keys Specify the desired track for playback 2. Press the ENTER or play switch. Playback is started automatically even without pressing the Remote control ENTER key after the elapse of approx. 4 seconds. The max- imum number of tracks is 255 for a Super Audio CD, and it may take longer time to enter a 3-digit track number.
  • Page 33 SUPER AUDIO CD PLAYER D-06u Repeat the playback. All repeat (A-REP) (Repeat playback) 1. During playback, press the REPEAT switch twice. Remote control 2. "A-REP" appears on the display to indicate the all repeat. There are two types of repeat playback: track repeat (T-REP) and all repeat 3.

  • Page 34: Program Playback

    Program Playback 2, 4 CLEAR switch 3, 5 Play back the tracks in a programmed order. 2. Enter a desired track number by (Program playback) pressing numeric keys of the remote control. Remote control For example, when selecting the 5th track, press the "5" key.
  • Page 35 SUPER AUDIO CD PLAYER D-06u 4. Enter the track number to program 6. Press the play ( ) switch. next. For example, when selecting the 15th track, press the "1" key, and then "5". • When pressing the CLEAR switch during stop, all the pro- gram is deleted.

  • Page 36: Random Playback/Disc Information/Zoom

    Random playback/disc information/zoom RANDOM switch TIME switch ZOOM switch Play back the tracks in a random order. 2. "RD" appears on the display to indicate (Random playback) the random playback. The playback stops automatically after all the tracks Remote control are played back.
  • Page 37 SUPER AUDIO CD PLAYER D-06u Disc information Zoomed display Remote control Remote control Switch the time display during playback. Enlargement of displayed characters 1. When the ZOOM switch is pressed, the Each time the TIME switch is pressed during playback, the track number and time are displayed in display changes as follows.

  • Page 38: Detailed Settings

    Detailed Settings Operation switch Dimmer switch Digital input selection switch Super Audio CD/CD selection switch Digital filter selection switch Analog FIR filter selection switch Operation switch Digital input selection switch Digital output selection switch Stop switch Phase invert changeover switch Super Audio CD/CD selection switch...
  • Page 39 SUPER AUDIO CD PLAYER D-06u Dimmer switch (DIMMER) Super Audio CD/CD selection switch/ SACD/CD Remote control • Remote control Main unit The brightness of the main unit display can be adjusted. The brightness can be When playing back a Hybrid Super Audio...
  • Page 40 Detailed Settings Operation switch Dimmer switch Digital input selection switch Super Audio CD/CD selection switch Digital filter selection switch Analog FIR filter selection switch Operation switch Digital input selection switch Digital output selection switch Stop switch Phase invert changeover switch Super Audio CD/CD selection switch...
  • Page 41 SUPER AUDIO CD PLAYER D-06u Digital input selection switch (DIGITAL IN) 2. The selected input type and sampling status are displayed on the main unit • Remote control Main unit display window. This sampling frequency and bit count of the digital signal...
  • Page 42 Detailed Settings Operation switch Dimmer switch Digital input selection switch Super Audio CD/CD selection switch Digital filter selection switch Analog FIR filter selection switch Operation switch Digital input selection switch Digital output selection switch Stop switch Phase invert changeover switch Super Audio CD/CD selection switch...

  • Page 43: Digital Out

    SUPER AUDIO CD PLAYER D-06u Digital output selection switch Restore all the settings to the factory (DIGITAL OUT) defaults. All the settings are restored to the factory defaults. Main unit 1. Turn this unit to the standby state. 2. Press the OPERATION switch on the main unit while press- ing the stop ( ) switch on the main unit.

  • Page 44: Block Diagram

    Block Diagram...

  • Page 45: Specifications

    Specifications SUPER AUDIO CD PLAYER D-06u Format 2-channel Super Audio CD, CD 230 V ~ (50 Hz) Power supply Power consumption 29 W 1 W (at standby) Weight 15.7 kg (main unit only) 440 (W) x 133 (H) x 410 (D) mm Max.

  • Page 46: Before Asking For Repair

    · Connect digital cables correctly. 20 - 21 volume is too low. (Digital input) · If the USB is selected as an input source, select this unit (D-06u) as Refer to the in- the output destination by configuring the sound setting of a PC/Mac.
  • Page 47 SUPER AUDIO CD PLAYER D-06u Problem Cause/Solution Ref. page No sound is generated from the · Confirm that the connections of audio cables are correct. 20 - 21 speakers, or sound is distorted. · If a digital output device is connected to this unit, set [Digital output] to [On].
  • Page 48 LUXMAN CORPORATION, JAPAN AG00987E30A Printed in Japan...
