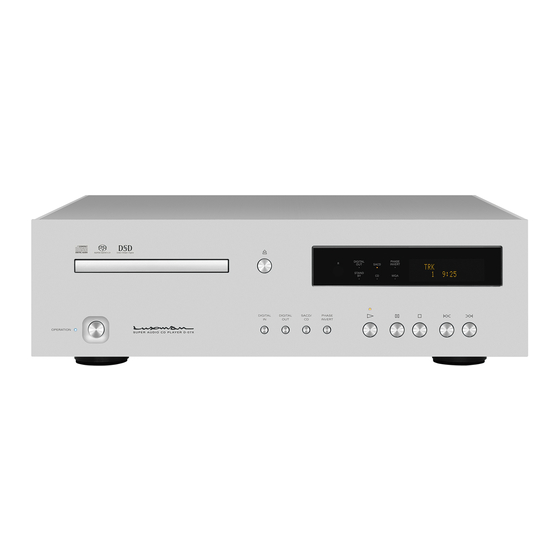

Super audio cd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SUPER AUDIO CD PLAYER
D-07X

Advertisement

Table of Contents
loading

Related Manuals for Luxman D-07X

Summary of Contents for Luxman D-07X

  • Page 1 SUPER AUDIO CD PLAYER D-07X...

  • Page 3: Table Of Contents

    SUPER AUDIO CD PLAYER D-07X Contents Precautions ············································································································· 1 Features of This Unit ································································································ 3 Compatible Discs ···································································································· 7 Before Use ·············································································································· 8 Names and Functions ···························································································· 11 Connections ·········································································································· 19 How to Play Back Discs ························································································ 23 Stop/pause the Playback ······················································································· 25 Skip/Fast-forward/Rewind ·····················································································...

  • Page 4: Precautions

    Precautions DO NOT move this unit during playback. Do not cover. During playback, the disc is rotating at high speed. Do not try Do not cover or place any items or other units on top of this unit. to lift or move this unit as the disc may be damaged. Other- Avoid sources of heat wise, the disc may be damaged.
  • Page 5 SUPER AUDIO CD PLAYER D-07X How to handle discs Specifically designed discs • Do not use any deficient disc (cracked, warped, etc.). This unit cannot play discs with specifically designed shapes • Do not damage the signal surface of the disc or make it such as heart-shaped or hexagonal discs.

  • Page 6: Features Of This Unit

    Features of This Unit ―― 2-channel-specific Super Audio CD/CD Compatible Player LxDTM improved — Luxman original Disc USB input 768kHz/32-bit supported Transport Mechanism — The B-type USB input terminal makes it possible to input dig- ital audio signals from a PC or Mac with a sampling frequency The side frame that is firmly integrated into the transport of up to 768kHz and 32-bit quantization.
  • Page 7 SUPER AUDIO CD PLAYER D-07X Ultra-low phase noise crystal oscillator Zoom function This unit uses an extremely low noise oscillator in the vicinity When the ZOOM button is pressed on the remote control, en- of the oscillating frequency. larged track number and time information can be displayed.
  • Page 8 Features of This Unit Digital input terminals Digital output OFF This unit is equipped with a coaxial input terminal and an op- The digital audio output can be deactivated to improve the tical input terminal. It is compatible with S/PDIF formated sig- quality of the analog audio output.
  • Page 9 SUPER AUDIO CD PLAYER D-07X Cast-iron insulators Schottky barrier diodes For stability and support, this product features cast iron feet By using Schottky diodes, manufactured by KYOCERA with vibration reducing density gradient. Corporation, this unit achieves very high DC conversion...

  • Page 10: Compatible Discs

    Compatible Discs Types of discs that can be played Super Audio CD — 3 types of disks — The following marks are printed on disc labels, packages, or CD jackets. • Single-layer CD This is a disc which has a single Super Dummy layer Marks for types of discs this unit can play back Audio CD layer.

  • Page 11: Before Use

    Before Use SUPER AUDIO CD PLAYER D-07X Comparison of Super Audio CDs with CDs Item Super Audio CD Disc diameter (cm) Disc thickness (mm) Coding method 1-bit direct stream digital (DSD) 16-bit linear PCM Sampling frequency 2.8224 MHz (64 times to CDs) 44.1 kHz...
  • Page 12 Before Use Check the accessories How to Use the Remote Control Whilst unpacking, check if the following accessories are Insert batteries into the remote control included. 1. Remove the battery cover on the rear of the remote control. • Power cable •...
  • Page 13 SUPER AUDIO CD PLAYER D-07X Remote control’s range To use the remote control, aim it at the remote control infra- red receiver on the front panel of main unit. The effective dis- tance is approx. 5 m from the main unit and at 30 ° to either side of the remote control infrared receiver.

  • Page 14: Names And Functions

    Names and Functions Front panel 1. Operation button (OPERATION) 6. Display window Turns this unit from the standby state to operation state. Displays the operation status of this unit. When the main power switch on the rear panel is turned This display is composed of 6 indicators and display tube.
  • Page 15 SUPER AUDIO CD PLAYER D-07X 10. Phase invert button (PHASE INVERT) The phase of the analog output on the rear panel can be in- verted for both the balanced output and unbalanced output. This setting is stored on the flash memory even when the power is turned off.
  • Page 16 Names and Functions Display window 1. Remote control infrared receiver (R) 6. Time display mode Receives the infrared signals from the remote control. The display shows different playback time modes. “REM” is displayed indicating the remaining time of the current track. 2.
  • Page 17 SUPER AUDIO CD PLAYER D-07X 9. Playback mode “RD” is displayed during random playback. “PG” is dis- played during program playback. This display area does not light up during regular playback. 10. Time Displays the elapsed time of current track, remaining time of current track, or remaining time of disc.
  • Page 18 Names and Functions Remote control 1. Operation button (OPERATION) 4. Analog FIR filter selection button (FILTER DSD) Turns this unit to the operating state after turning off the standby indicator at the standby state. Pressing this button This button changes the analog FIR filter while a Super again at the operating state turns the unit to the standby Audio CD (HD layer) or a DSD file is being played back.
  • Page 19 SUPER AUDIO CD PLAYER D-07X 5. Program button (PROGRAM) 14. Repeat button (REPEAT) Programs the track numbers to play back in a desired order. Pushing this button will enable repeat playback of the se- lected track or the whole disc. There are two types of repeat 6.
  • Page 20 1. Balanced analog output terminals 3. Control input terminal (CONTROL IN) (BAL LINE) Connects a LUXMAN’s device with a control output termi- nal using a commercially available 3.5-mm monaural mini- Use these XLR output terminals to output balanced audio jack cable. This connection enables the infrared receiver signals from this unit.
  • Page 21 384  kHz, 705.6  kHz or 768  kHz sampling frequency is website and installed. played back, digital audio output is not available. Refer to “Driver Installation Manual” on the LUXMAN website This is a shutter-type optical terminal. Direct the cable for detailed information.

  • Page 22: Connections

    Connections DVD PLAYER PC／Mac CD/SACD PLAYER * When using PC or Mac, the dedicated driver software ( B ) ( C ) must be installed before use. ( A ) D/A CONVERTER ( D ) ( E ) ( D ) ( F ) CD PLAYER CONTROL AMP...
  • Page 23 LUXMAN website and installed. Connecting to the power supply Refer to “Driver Installation Manual” on the LUXMAN website Connect the supplied accessory power cable here to power for detailed information. the unit from an AC wall outlet.
  • Page 24 DVD PLAYER PC／Mac CD/SACD PLAYER * When using PC or Mac, the dedicated driver software ( B ) ( C ) must be installed before use. ( A ) D/A CONVERTER ( D ) ( E ) ( D ) ( F ) CD PLAYER CONTROL AMP...
  • Page 25 When connection is conducted from a product made by other than LUXMAN, make sure that the trigger output is 12  V. The trigger input of this unit should be 12 volts, the current consumption is 13 mA.

  • Page 26: How To Play Back Discs

    How to Play Back Discs Operation button Open/close button ( Play button ( Open/close button ( Disc tray Operation button Play button (...
  • Page 27 SUPER AUDIO CD PLAYER D-07X Disc Playback • Remote control Main unit 1. Press the OPERATION button. When “-OPERATION-” appears and then disappears, the unit becomes operable. 2. Press the open/close ( ) button. The disc tray opens. 3. Place the disc on the disc tray according to the guide on the tray.

  • Page 28: Stop/Pause The Playback

    Stop/pause the Playback Operation button Open/close button ( Play button ( Pause button ( Stop button ( ) Operation button Open/close button ( Play button ( Stop button ( ) Pause button (...
  • Page 29 SUPER AUDIO CD PLAYER D-07X Pause/stop the playback of the disc • Remote control Main unit How to pause playback Press the pause ( ) button. During pause, the play indicator blinks. Resumes the regular playback. During pause, press the play (...

  • Page 30: Skip/Fast-Forward/Rewind

    Skip/Fast-forward/Rewind Previous button ( Next button ( Play button ( Rewind button ( Fast-forward button ( Play button ( Next button ( Previous button (...
  • Page 31 SUPER AUDIO CD PLAYER D-07X Skipping to a desired track (cue function) Disc fast-forward/rewind playback (Scan) • Remote control Main unit Remote control Skip playback Fast-forward the playback. Skip to a desired track 1. During playback, press the fast-forward ) button.

  • Page 32: Direct Search/Repeat Playback

    Direct search/repeat playback Repeat button Numeric keys Enter button Play button ( Specify the desired track for playback 2. Press the enter or play button. Playback is started automatically even without pressing the Remote control ENTER button after the elapse of approx. 4 seconds. The maximum number of tracks is 255 for a Super Audio CD, 1.
  • Page 33 SUPER AUDIO CD PLAYER D-07X Repeat playback All repeat (A-REP) 1. During playback, press the REPEAT Remote control button twice. There are two types of repeat playback: 2. “A-REP” appears on the display to track repeat (T-REP) and all repeat indicate all tracks repeat mode.

  • Page 34: Program Playback

    Program Playback Program button Numeric keys Clear button Enter button Play button ( Playback of tracks in a programmed order 2. Enter a desired track number by (Program playback) pressing the numeric keys of the remote control. Remote control For example, when selecting the 5th track, press the “5” key.
  • Page 35 SUPER AUDIO CD PLAYER D-07X 4. Enter the track number to program 6. Press the play ( ) button. next. For example, when selecting the 15th track, press the “1” key, and then “5”. • When pressing the PROGRAM button with the disc stopped, all programmed data is deleted.

  • Page 36: Random Playback/Disc Information/Zoom

    Random playback/disc information/zoom Random button Time button Zoom button Playback of tracks in a random order 2. “RD” appears on the display to indicate (Random playback) random playback. Playback stops automatically after all the tracks on the Remote control disc have been played back. Random playback stops when a disc is stopped or the Each track is selected from all disc tracks RANDOM button is pressed once again.
  • Page 37 SUPER AUDIO CD PLAYER D-07X Disc information Zoomed display Remote control Remote control Altering the time display during playback. Enlargement of displayed characters 1. Pressing the ZOOM button allows the Each time the TIME button is pressed during playback, the track number and time to be displayed display changes as follows.

  • Page 38: Detailed Settings

    Detailed Settings Operation button Dimmer button Digital input selection button Super Audio CD/CD selection button Digital output selection button Analog FIR filter selection button Operation button Digital input selection button Stop button Digital output selection button Super Audio CD/CD selection button Phase invert button...
  • Page 39 SUPER AUDIO CD PLAYER D-07X Dimmer button (DIMMER) Super Audio CD/CD selection button (SACD/CD) Remote control • Remote control Main unit The brightness of the main unit display can be adjusted. The brightness can be When playing back a Hybrid Super Audio...
  • Page 40 Detailed Settings Operation button Dimmer button Digital input selection button Super Audio CD/CD selection button Digital output selection button Analog FIR filter selection button Operation button Digital input selection button Stop button Digital output selection button Super Audio CD/CD selection button Phase invert button...
  • Page 41 When using PC or Mac, the dedicated driver software needs case, the bit count is not displayed. to be downloaded from the LUXMAN website and installed. • There may be a case where the display indicates “LOCK” Refer to “Driver Installation Manual” on the LUXMAN website for a short time, and then “UNLOCK”.
  • Page 42 Detailed Settings Operation button Dimmer button Digital input selection button Super Audio CD/CD selection button Digital output selection button Analog FIR filter selection button Operation button Digital input selection button Stop button Digital output selection button Super Audio CD/CD selection button Phase invert button...
  • Page 43 SUPER AUDIO CD PLAYER D-07X Digital output selection (DIGITAL OUT) How to restore all the settings to the button factory defaults All settings can be restored to the factory defaults by the • Remote control Main unit following method 1. Turn off the unit (standby mode).

  • Page 44: Block Diagram

    Block Diagram...

  • Page 45: Specifications

    Specifications SUPER AUDIO CD PLAYER D-07X Format 2-channel SACD, CD Power supply 230 V (50 Hz) Power consumption 37 W 1 W (at standby) Weight 17 kg (main unit) 440 (W) x 132 (H) x 410 (D) mm Max. external dimensions...

  • Page 46: Before Asking For Repair Service

    While in use, this unit may display phenomena which may be confused as malfunctions. Before contacting your country’s official LUXMAN distributor for repair services, please read the operating instructions for any connected input and output devices and check the troubleshooting table below. If the cause of the malfunction cannot be identified, please contact your dealer. After LUXMAN’s representatives have accepted your request for repair services, inspection fees and transportation expenses may be claimed, even though the unit may be found to be operating normally.
  • Page 47 SUPER AUDIO CD PLAYER D-07X Problem Cause/Solution Ref. page No sound is generated from the • Confirm that all audio cable connections are correct. 19 - 22 speakers, or sound is distorted. • If a digital output device is connected to this unit, set [Digital output] to [On].
  • Page 48 LUXMAN CORPORATION, JAPAN AG00238G10A 1-3-1 Shinyokohama, Kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan Printed in Japan...
