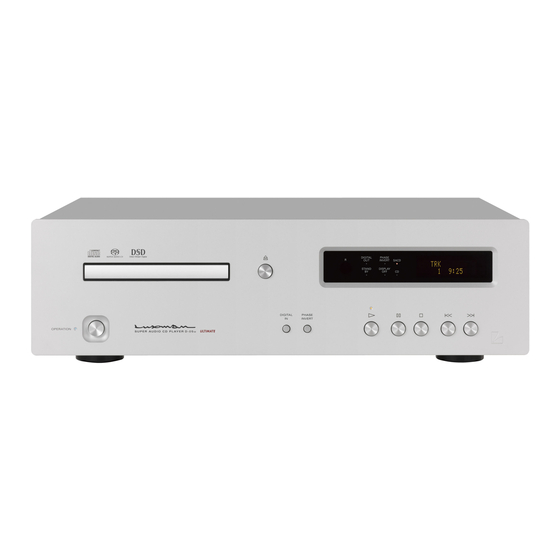

SUPER AUDIO CD PLAYER
D-05
Owner` s Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luxman D-05

Summary of Contents for Luxman D-05

  • Page 1 SUPER AUDIO CD PLAYER D-05 Owner` s Manual...

  • Page 3: Table Of Contents

    SUPER AUDIO CD PLAYER D-05 Contents Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Features Of This Unit .

  • Page 4: Precautions

    SUPER AUDIO CD PLAYER D-05 Precautions DO NOT move this unit during playback. To avoid heat emission During playback, the disc is rotating at high Do not place this unit on such device as an ampli- speed . Do not try to lift or move this unit as the fier that may emit heat .

  • Page 5: Disc Cleaning

    SUPER AUDIO CD PLAYER D-05 this unit is directly exposed to cool air from an air • Where the disc seems to be very dirty, dip soft conditioner . In such a case, the installation place cloth in water, wring it well, and remove contami- should be changed .

  • Page 6: Features Of This Unit

    SUPER AUDIO CD PLAYER D-05 Features Of This Unit — 2-channel-specific Super Audio CD/CD Compatible Player LxDTM — LuXman original Disc Zoom function Transport Mechanism — When the ZOOM switch is pressed on the remote This unit is equipped with a robust transport block .

  • Page 7: Dimmer Function

    SUPER AUDIO CD PLAYER D-05 Dimmer function The brightness of display (time information, etc.) can be switched over in 4 steps . Digital output OFF The digital audio output can be deactivated to improve the quality of analog audio output .

  • Page 8: About Discs This Unit Can Play Back

    SUPER AUDIO CD PLAYER D-05 About Discs This Unit Can Play Back Types of discs that can be played Super Audio CD — 3 types of discs — The following marks are printed on disc labels, • Single-layer CD packages, or CD jackets .
  • Page 9 SUPER AUDIO CD PLAYER D-05 Comparison of Super Audio CDs with CDs Item Super Audio CD Disc diameter (cm) Disc thickness (mm) 1 .2 1 .2 Coding method 1-bit direct stream digital (DSD) 16-bit linear PCM Sampling frequency 2.8224 MHz (64 times to CDs) 44.1 kHz...

  • Page 10: Before Use

    SUPER AUDIO CD PLAYER D-05 Before Use Check the accessories. How to Use Remote Control After unpacking, check if the following accesso- Insert batteries into the remote con- ries are not missing . trol. • Power cable 1 . Remove the battery cover on the rear of the re- •...
  • Page 11 SUPER AUDIO CD PLAYER D-05 Remote control’s range The remote control can be used by pointing at the remote control infrared receiver on the front panel of main unit. The effective distance is approx. 5 m from the main unit and 30 ° on both sides from the control infrared receiver .

  • Page 12: Names And Functions Of Part

    SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Front side of main unit 3. Disc tray 4. Open/close switch 2. Operation 5. Remote control infrared indicator receiver 6. Display 1. Operation switch 14. Next switch 13. Previous switch 12.

  • Page 13: Disc Tray

    SUPER AUDIO CD PLAYER D-05 1. Operation switch / OPERATION Turns this unit to the operating state after turn- ing off the standby indicator at the standby state . Pressing this switch again at the operating state turns the unit to the standby state .
  • Page 14 SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Front side of main unit 3. Disc tray 4. Open/close switch 2. Operation 5. Remote control infrared indicator receiver 6. Display 1. Operation switch 14. Next switch 13. Previous switch 12.

  • Page 15: Digital Out

    SUPER AUDIO CD PLAYER D-05 7. Digital output selection switch / 13. Previous switch / ( s ) DIGITAL OUT When this switch is pressed, the playback This switch is pressed when turning on or off the returns to the beginning of track .
  • Page 16 SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Display 3. Super Audio CD/CD indicator 2. Digital output indicator 4. Track number 1. Remote control infrared receiver 5. Time display mode 6. Standby indicator 9. Repeat mode 8. Time...

  • Page 17: Playback Mode

    SUPER AUDIO CD PLAYER D-05 1. Remote control infrared receiver / R 6. Standby indicator / STAND BY Receives the infrared signals from the remote Lights up when this unit is in the standby state . control . 7. Playback mode 2.

  • Page 18: Remote Control

    SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Remote control 9. Super Audio CD/ CD selection switch 10. Open/close switch 11. Dimmer switch 12. Play switch 1. Operation switch 13. Fast-forward switch 2. Digital input selection switch 3. Digital output selection switch 14.
  • Page 19 SUPER AUDIO CD PLAYER D-05 1. Operation switch / OPERATION 7. Numeric keys / 1, 2, 3, 4, 5, 6, 7, 8, 9, 0 Turns this unit to the operating state after turn- ing off the standby indicator at the standby state .
  • Page 20 SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Remote control 9. Super Audio CD/ CD selection switch 10. Open/close switch 11. Dimmer switch 12. Play switch 1. Operation switch 13. Fast-forward switch 2. Digital input selection switch 3. Digital output selection switch 14.
  • Page 21 SUPER AUDIO CD PLAYER D-05 9. Super Audio CD/CD selection 17. Stop switch / ( 3 ) switch / SACD/CD This switch is pressed to stop playback . When playing back a Hybrid Super Audio CD, 18. Enter switch / ENTER...
  • Page 22 SUPER AUDIO CD PLAYER D-05 Names and Functions of Part Rear side of main unit 1. Analog audio output terminals (Unbalanced) 2. Analog audio output terminals 6. Power cable terminal (Balanced) 3. Optical digital input terminal 5. Optical digital output terminal 4.
  • Page 23 SUPER AUDIO CD PLAYER D-05 1. Analog audio output terminals 4. Coaxial digital input terminal / (Unbalanced) / LINE COAX Connect these terminals to an unbalanced input When using this unit as a D/A converter, con- of such device as a preamplifier with a pin-plug nect this terminal to such device as a recorder cable .

  • Page 24: Connections

    SUPER AUDIO CD PLAYER D-05 Connections INTEGRATED AMPLIFIER DIGITAL RECORDER DIGITAL AMP...
  • Page 25 SUPER AUDIO CD PLAYER D-05 Before Connecting This terminal has a shutter . 1. Connect the accessory power cable Direct the cable connector correctly when inserting the to an AC outlet. cable into the terminal . If the cable connector is inserted forcibly with the...

  • Page 26: How To Play Back Discs

    SUPER AUDIO CD PLAYER D-05 How to Play Back Discs 2, (4) 2, (4)
  • Page 27 SUPER AUDIO CD PLAYER D-05 Play back a disc. Remote control • Main unit 1. Press the OPERATION switch. “-OPERATION-” appears on the display . When “-OPERATION-” disappears, the unit becomes operable . 2. Press the open/close ( u ) switch.

  • Page 28: Stop/Pause The Playback

    SUPER AUDIO CD PLAYER D-05 Stop/Pause the Playback Operation switch Open/close switch (u) Play switch (5) Pause switch (y) Stop switch (3) Operation switch Open/close switch (u) Play switch (5) Stop switch (3) Pause switch (y)

  • Page 29: Pause Playback

    SUPER AUDIO CD PLAYER D-05 Pause the playback of a disc. Remote control • Main unit Pause playback. 1. Press the pause ( y ) switch. During pause, the play indicator blinks . Resume the regular playback. 2. During pause, press the play ( 5 ) or pause ( y ) switch.

  • Page 30: Skip/Fast-Forward/Rewind

    SUPER AUDIO CD PLAYER D-05 Skip/Fast-forward/Rewind Previous switch ( s ) Next switch ( d ) Play switch (5) Rewind switch ( a ) Fast-forward switch ( f ) Next switch ( d ) Play switch (5) Previous switch ( s )
  • Page 31 SUPER AUDIO CD PLAYER D-05 Skips to the desired track. Fast-forward/rewind the playback. (Skip playback) (Scan) Remote control • Main unit Remote control Fast-forward the playback. Skips (Skip playback) Skip to the track to play back. 1. During playback, press the fast- forward ( 2 ) switch.

  • Page 32: Direct Search

    SUPER AUDIO CD PLAYER D-05 Direct Search Numeric keys...
  • Page 33 SUPER AUDIO CD PLAYER D-05 Specify the desired track for playback Remote control 1. Enter a track number by pressing numeric keys. For example, when selecting the 15th track, press the “1” key, and then “5” . 2. Press the ENTER or play switch.

  • Page 34: Repeat Playback

    SUPER AUDIO CD PLAYER D-05 Repeat Playback Repeat switch...
  • Page 35 SUPER AUDIO CD PLAYER D-05 Repeat the playback. All repeat (A-REP) (Repeat playback) 1. During playback, press the REPEAT switch twice. Remote control 2. “A-REP” appears on the display to There are two types of repeat play- indicate all repeat.

  • Page 36: Program Playback

    SUPER AUDIO CD PLAYER D-05 Program Playback 2, 4 3, 5, 6 CLEAR switch...
  • Page 37 SUPER AUDIO CD PLAYER D-05 Play back the tracks in a programmed 4. Enter the track number to program order. next. (Program playback) For example, when selecting the 15th track, press the “1” key, and then “5” . Remote control It is possible to program up to 24 tracks in the desired order.
  • Page 38 SUPER AUDIO CD PLAYER D-05 Program Playback 2, 4 3, 5, 6 CLEAR switch...
  • Page 39 SUPER AUDIO CD PLAYER D-05 6. Press the ENTER switch. Program the desired tracks by repeating Step 2 and 3 . 7. Press the play ( 5 ) switch. • When pressing the CLEAR switch during stop, all the program is deleted .

  • Page 40: Random Playback

    SUPER AUDIO CD PLAYER D-05 Random Playback RANDOM switch...
  • Page 41 SUPER AUDIO CD PLAYER D-05 Play back the tracks in a random order. (Random playback) Remote control Each track is randomly selected from all the tracks to be played back once. 1. Press the RANDOM switch. 2. “RD” appears on the display to indicate random playback.

  • Page 42: Disc Information/Zoom

    SUPER AUDIO CD PLAYER D-05 Disc Information/Zoom TIME switch ZOOM switch...
  • Page 43 SUPER AUDIO CD PLAYER D-05 Disc information Zoom Remote control Remote control The time display can be switched over The display can be zoomed. during playback. 1. When pressing the ZOOM switch on the remote control during play- Each time the TIME switch is pressed during back, the track number and time playback, the display changes as follows .

  • Page 44: Detailed Settings

    SUPER AUDIO CD PLAYER D-05 Detailed Settings Operation switch Digital input selection switch Dimmer switch Digital output selection switch Super Audio CD/CD selection switch Operation switch Digital output selection switch Super Audio CD/CD selection switch Stop switch...
  • Page 45 SUPER AUDIO CD PLAYER D-05 Dimmer switch / DIMMER Super Audio CD/CD selection switch/ SACD/CD Remote control Remote control • Main unit The brightness of the main unit dis- play can be adjusted. The brightness When playing back a Hybrid Super...
  • Page 46 SUPER AUDIO CD PLAYER D-05 Detailed Settings Operation switch Digital input selection switch Dimmer switch Digital output selection switch Super Audio CD/CD selection switch Operation switch Digital output selection switch Super Audio CD/CD selection switch Stop switch...
  • Page 47 SUPER AUDIO CD PLAYER D-05 Digital input selection switch / Digital output selection switch / DIGITAL IN DIGITAL OUT Remote control Remote control • Main unit This switch is pressed when using this This switch is pressed when turn on unit as a D/A converter.
  • Page 48 SUPER AUDIO CD PLAYER D-05 Detailed Settings Operation switch Digital input selection switch Dimmer switch Digital output selection switch Super Audio CD/CD selection switch Operation switch Digital output selection switch Super Audio CD/CD selection switch Stop switch...
  • Page 49 SUPER AUDIO CD PLAYER D-05 Restore all the settings to the factory Last memory function (Memorization defaults. of each setting) All the settings are restored to the factory de- The following are the setting items to be memo- faults .

  • Page 50: Block Diagram

    SUPER AUDIO CD PLAYER D-05 BLOCK DIAGRAM...

  • Page 51: Specifications

    SUPER AUDIO CD PLAYER D-05 Specifications Format 2-channel Super Audio CD, CD Power source AC 230 V, 50 Hz 21 W Power consumption 1 W (at standby) Weight (Main unit) 14 .7 kg Dimensions 440 (W) × 133 (H) × 410 (D) mm Ambient operating temperature / +5 °C to +35 °C / 5 % to 85 % (non condensing)

  • Page 52: Before You Ask For Repair Services

    SUPER AUDIO CD PLAYER D-05 Before You Ask For Repair Services While the unit is used, an unusual phenomenon may be confused as a malfunction for a certain reason . Prior to asking us for repair services, please check the table below and read the instruction manual for the subsid- iary devices .
  • Page 53 SUPER AUDIO CD PLAYER D-05 Problem Cause/Solution Ref. page No sound is generated from the · Confirm that the connections of audio cables are correct . speakers, or sound is distorted . · If a digital output device is connected to this unit, set the setting of digital output to ON .
  • Page 54 AG00987C65A LUXMAN CORPORATION, JAPAN Printed in Japan...
