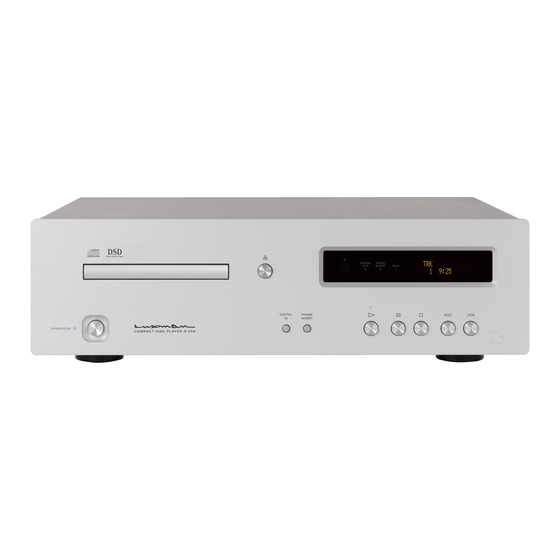

- Page 1 COMPACT DISC PLAYER D-03X Owner`s Manual...
-
Page 3: Table Of Contents
COMPACT DISC PLAYER D-03X Contents Precautions ············································································································· 1 Features of This Unit ································································································ 3 About Discs This Unit Can Play Back ······································································· 5 Before Use ·············································································································· 6 Names and Functions ······························································································ 8 Connections ·········································································································· 17 Disc playback/pause/stop ····················································································· 19 Skip/Fast-forward/Rewind ····················································································· 21 Direct search/repeat playback ···············································································... -
Page 4: Precautions
Precautions DO NOT move this unit during playback. Do not cover. During playback, the disc is rotating at high speed. Do not try Do not cover or place any items or other units on top of this to lift or move this unit as the disc may be damaged. unit. - Page 5 COMPACT DISC PLAYER D-03X How to handle discs Specifically designed discs • Do not use any deficient discs (cracked, warped, etc.). This unit cannot play discs with specifically designed shapes • Do not damage the signal surface of the disc or make it such as heart-shaped or hexagonal discs.
-
Page 6: Features Of This Unit
MQA audio files and streams from all digital inputs, de- The USB B type input terminal makes it possible to input USB livering the sound of the original master recording. D-03X is a digital audio signals from a PC or Mac, supporting a sampling CD player that can recognise an MQA-CD. - Page 7 COMPACT DISC PLAYER D-03X Analog output phase switching Remote control (RD-28) Both balanced output and unbalanced output are phase The remote control is encased in aluminum. Tactile switches switchable. will satisfy users with light key touch. Zoom function Highly stable power supply When the ZOOM button is pressed on the remote control, The unit’s highly stable power supply circuitry features a large...
-
Page 8: About Discs This Unit Can Play Back
About Discs This Unit Can Play Back Types of discs that can be played The following marks are printed on disc labels, packages, or CD jackets. Marks for types of discs this unit can play back CD-R CD-RW Marks for types of discs this unit cannot play back SACD This unit can play back 8 cm CDs without using an adapter. -
Page 9: Before Use
Before Use COMPACT DISC PLAYER D-03X Check the accessories How to Use Remote Control Whilst unpacking, check if the following accessories are in- cluded. Insert batteries into the remote control • Power cable 1. Remove the battery cover on the rear of the remote control. - Page 10 Before Use Remote control’s range To use the remote control, aim it at the remote control infra- red receiver on the front panel of main unit. The effective distance is approx. 5 m from the main unit and at 30 ° to either side of the remote control infrared receiver. 30°...
-
Page 11: Names And Functions
Names and Functions COMPACT DISC PLAYER D-03X Front panel 11 12 13 14 1. Operation button (OPERATION) 4. Open/close button ( Toggles the power on and off. Opens or closes the disc tray. When wiring or connection is performed, be sure to turn off this button. - Page 12 Names and Functions Front panel 11 12 13 14 7. Digital input selection button 9. Play button ( (DIGITAL IN) Plays back a disc. When using this unit as a D/A converter, press this but- ton to select between coaxial, optical, USB, and CD player. 10.
- Page 13 COMPACT DISC PLAYER D-03X Display window 1. Remote control infrared receiver (R) 4. MQA indicator (MQA) Receives the infrared signals from the remote control. Lights up while an MQA-CD, an MQA file or stream is being played back 2. Digital output indicator (DIGITAL OUT)
- Page 14 Names and Functions Display window 7. Playback mode 9. Repeat mode “RD” is displayed during random playback. “PG” is dis- Displays the mode for repeat playback. There are two types played during program playback. This display area does not of repeat playback: track repeat (T-REP) and all repeat light up during regular playback.
- Page 15 COMPACT DISC PLAYER D-03X Remote control 1. Digital input selection button 4. Numeric keys (1, 2, 3, 4, 5, 6, 7, 8, 9, 0) (DIGITAL IN) These keys are pressed to specify the track numbers for direct search or program.
- Page 16 Names and Functions Remote control 7. Rewind button ( 11. Phase invert button (PHASE-INV) When this button is pressed during playback, the track will The phase of the analog output on the rear panel can be rewind until the button is released. inverted for both the balanced output and unbalanced output.
- Page 17 COMPACT DISC PLAYER D-03X 12. Repeat button (REPEAT) Pushing this button will enable repeat playback of the se- lected track or the whole disc. There are two types of repeat playback: track repeat (T-REP) and all repeat (A-REP). 13. Random button (RANDOM) This button is pressed to perform random playback.
- Page 18 Use these XLR output terminals to output balanced audio When using Windows OS, our dedicated driver software signals from this unit. needs to be downloaded from the LUXMAN website and Connect these terminals to the balanced inputs of a unit installed.
- Page 19 COMPACT DISC PLAYER D-03X 4. Optical digital input terminal (OPT) The square optical input terminal should be used for digital signals from a CD player or other devices equipped with a digital output terminal using an optical digital cable. The terminal supports the following PCM signal data.
-
Page 20: Connections
Connections DVD PLAYER PC／Mac CD/SACD PLAYER * When using Windows OS, the dedicated driver software must be installed. ( B ) ( C ) ( A ) D/A CONVERTER ( D ) ( E ) ( F ) CD PLAYER PRE AMP (Equipped with digital input terminals) PRE MAIN AMP... - Page 21 The optical terminal is mounted as illustrated. cable. When using Windows OS, the dedicated driver software Lower side needs to be downloaded from the LUXMAN website and installed. Refer to the “Driver Installation Manual” on the LUXMAN How to connect output devices website for detailed information.
-
Page 22: Disc Playback/Pause/Stop
Disc playback/pause/stop Open/close button ( Play button ( Pause button ( Stop button ( ) Open/close button ( Play button ( Operation button Stop button ( ) Pause button (... - Page 23 COMPACT DISC PLAYER D-03X Disc Playback Pause/stop the playback of the disc. • • Remote control Main unit Remote control Main unit 1. Press the operation button on the main How to pause playback unit to turn it on. button 1.
-
Page 24: Skip/Fast-Forward/Rewind
Skip/Fast-forward/Rewind Previous button ( Next button ( Play button ( Rewind button ( Fast-forward button ( Play button ( Next button ( Previous button (... - Page 25 COMPACT DISC PLAYER D-03X Skipping to a desired track (cue function) Disc fast-forward/rewind playback (Scan) • Remote control Main unit Remote control Skip playback Fast-forward the playback. Skip to a desired track 1. During playback, press the fast-forward ) button.
-
Page 26: Direct Search/Repeat Playback
Direct search/repeat playback Repeat button Numeric keys Enter button Specify the desired track for playback 2. Press the ENTER or play ( ) button. Playback is started automatically even without pressing the Remote control ENTER button after the elapse of approx. 3 seconds. The maximum number of tracks is 99 for a CD, and it may take 1. - Page 27 COMPACT DISC PLAYER D-03X Repeat playback All repeat (A-REP) 1. During playback, press the REPEAT Remote control button twice. There are two types of repeat playback: 2. “A-REP” appears on the display to track repeat (T-REP) and all repeat indicate the all repeat.
-
Page 28: Program Playback
Program Playback Program button Numeric keys Clear button Enter button Play button Playback of tracks in a programmed order 2. Enter a desired track number by (Program playback) pressing numeric keys of the remote control. Remote control For example, when selecting the 5th track, press the “5” key. - Page 29 COMPACT DISC PLAYER D-03X 4. Enter the track number to program 6. Press the play ( ) button. next. For example, when selecting the 15th track, press the “1” key, and then “5”. • When pressing the CLEAR button during stop, all the program is deleted.
-
Page 30: Random Playback/Disc Information/Zoom
Random playback/disc information/zoom Random button Time button Zoom button Playback of tracks in a random order 2. “RD” appears on the display to indicate (Random playback) the random playback. The playback stops automatically after all the tracks Remote control are played back. Random playback stops when a disc is stopped or the Each track is selected from all the tracks RANDOM button is pressed once again. - Page 31 COMPACT DISC PLAYER D-03X Disc information Zoomed display Remote control Remote control Altering the time display during playback. Enlargement of displayed characters 1. Pressing the ZOOM button allows the Each time the TIME button is pressed during playback, the track number and time to be displayed display changes as follows.
-
Page 32: Detailed Settings
Detailed Settings Digital input selection button Dimmer button Digital output selection button Phase invert button Operation button Digital input selection button Phase invert button... - Page 33 “the word length is not specified”. When using Windows OS, our dedicated driver software In such a case, the bit count is not displayed. needs to be downloaded from the LUXMAN website and • There may be a case where the display indicates “LOCK” installed.
- Page 34 Detailed Settings Digital input selection button Dimmer button Digital output selection button Phase invert button Operation button Digital input selection button Phase invert button...
- Page 35 COMPACT DISC PLAYER D-03X Digital output selection (DIGITAL OUT) Dimmer button (DIMMER) button Remote control Remote control The brightness of the main unit display can be adjusted. The brightness can be To turn the digital audio output on and off, adjusted in 4 steps from light off to normal.
-
Page 36: Block Diagram
Block Diagram... -
Page 37: Specifications
Specifications COMPACT DISC PLAYER D-03X Format 2-channel/CD player Power supply 230 V (50 Hz) Power consumption 18 W Weight 13.2 kg (main unit) Max. external dimensions 440 (W) x 133 (H) x 410 (D) mm (front side 2 mm knobs and rear side 18 mm terminals included in... -
Page 38: Before Asking For Repair Service
LUXMAN distributor for repair services, please read the operating instructions for any connected input and output devices and check the troubleshooting table below. If the cause of the malfunction cannot be identified, please contact your dealer. After LUXMAN’s rep- resentatives have accepted your request for repair services, inspection fees and transportation expenses may be claimed, even though the unit may be found to be operating normally. - Page 39 COMPACT DISC PLAYER D-03X Problem Cause/Solution Ref. page No sound is generated from the • Confirm that the connections of audio cables are correct. 17 - 18 speakers, or sound is distorted. • Clean the disc to remove dirt. • When the output level of an amplifier, etc. is minimum, adjust the volume.
- Page 40 MEMO...
- Page 42 LUXMAN CORPORATION, JAPAN AG00987E91A 1-3-1 Shinyokohama, Kouhoku-ku, Yokohama-shi, Kanagawa 222-0033, Japan Printed in Japan...
