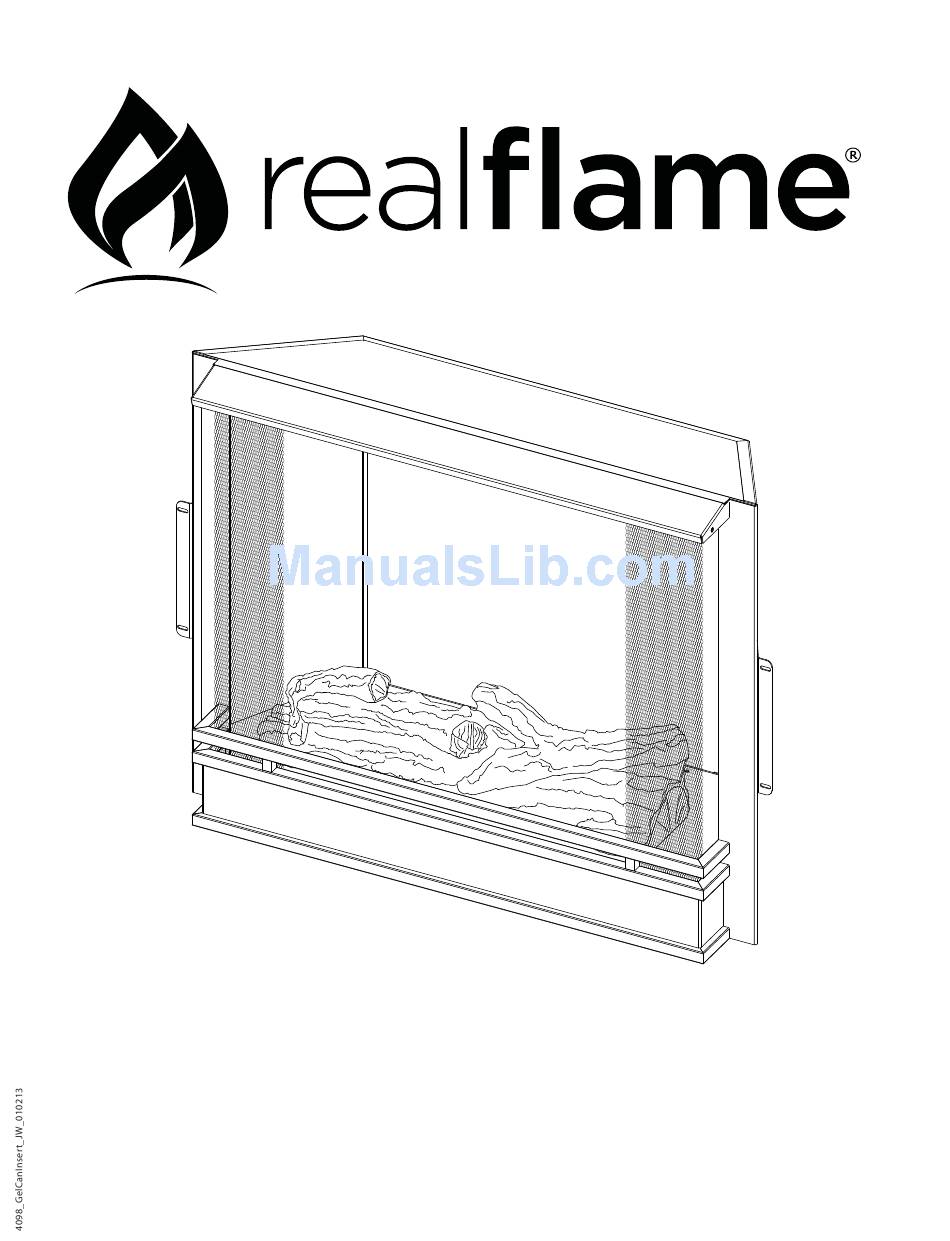

- Page 1 LOT: _____________ PO: _____________ f i r e p l a c e s Model # 4098 13oz Gel Fuel Can Firebox Insert...
-
Page 2: Using Your Fireplace
WARNING Read entire label and all instructions included with gel fuel and fireplace PROPERTY DAMAGE, SERIOUS INJURY OR DEATH may result if these warnings are not followed HAZARDS Gel Fuel is flammable. Failure to follow warnings can result in property damage or serious burns. Use only Real Flame®... -
Page 3: Parts List
Parts List Nº Description Part Number Quantity Firebox Shell 4098010A Log Set 4098010B Plate 4098010C Screen Panel 4098010D Screen Rod 4098010E Firebox Clip 4098010F Hardware Kit 4098010H... - Page 4 Step One Slide the Screen Rod (5) through the rings on both of the Screen Panels (4). Do not put the Screen Rod through the last ring on each Screen panel.
- Page 5 Step Two Install the Screen Rod (5) under the hood of the Firebox using one screw at each end (D). Note: Screws for the screen rod are shipped pre installed in the ends of the Screen Rod (5). Leave these two Screen Rod...
- Page 6 Step Three at either end and slip it into the cutout on the front of the firebox underneath the hood. Detail of Firebox under hood.
- Page 7 Step Four Remove the firebox clips (Figure 1) from the mantel if they are installed. These will not be needed and may be discarded. NOTE: The fireplace depicted in this manual may not resemble the fireplace that was purchased. Figure 1 Install the firebox clips included with your firebox using two machine screws (A) and nuts (B) and attach the firebox clip as shown in Figure 2.
- Page 8 Step Five From the back of the fireplace insert the firebox into the opening in the center of the fireplace.
- Page 9 Step Six Attach the firebox to the back of the mantel with the 4 supplied wood screws (C). Attach the firebox to the back of the side trim pieces as shown below. NOTE: You may also reuse the screws that were used to hold the original firebox clips included with the mantel if any were included (Not all mantels will have clips pre-attached).
- Page 10 Step Seven Before installing the Log Set (2) into the firebox, move the fireplace where you want it in your room. Install the Log Set (2) into the firebox as shown in the illustration. Log set should sit flat in front of the three holes in the Plate (3).
- Page 11 Step Eight With the fireplace in place against a wall and the screen kit and log set installed, place up to three gel fuel cans with the labels removed into the firebox. One into each hole in the plate. NOTE: For operational safety refer to the warning information on page 2 of this manual as well as your fireplace instructions.
-
Page 12: Warranty & Return Policies
Warranty & Return Policies Warranty Real Flame® Company warrants Real Flame ventless fireplaces and accessories to be free from defects in parts and workmanship under normal use and service for a period of 90 days from the date of purchase. In the event of such defects Real Flame will, at its option, replace the defective product or refund the purchase price.
